Samsung HW-D650S-ZA - Manual (Page 23)

English
23
02
Connections

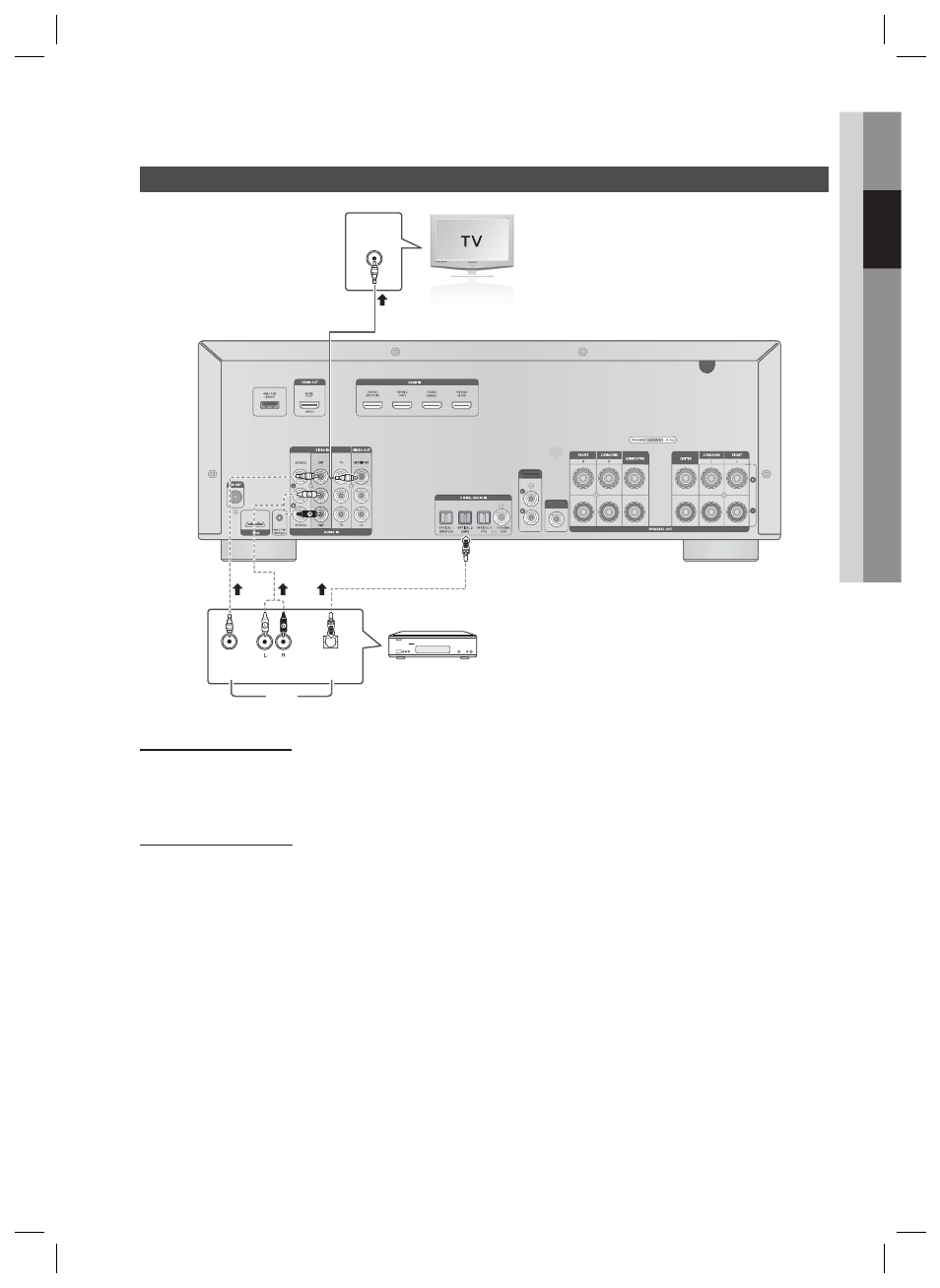

Connecting a Cable, Satellite or Set-top Box
Video Connection
Connect a Video cable (not supplied) from the VIDEO IN (SAT) jack on the back of your AV Receiver to the Video
Output jack on your SAT.
Audio Connection
Connect the Digital Input (OPTICAL 2) on your AV Receiver to the Digital Output of the SAT.
OR
Connect AUDIO IN (SAT) on your AV Receiver to the Audio Out of the SAT.
NOTE
Disconnect the power plug from the outlet if you will not use this unit for a long period of time.
If the cable/set-top box has only one audio output jack, connect it to either the right or left audio input jack of
the main unit. Connect the audio cable's red plug to the red jack and white cable to the white jack.
✎


ONLY FOR
SERVICE
ONLY FOR
UPDATE
SURROUND
BACK OUT
SUBWOOFER
OUT
SURROUND
BACK OUT
SUBWOOFER
OUT OUT
VIDEO
IN
AUDIO
OUT VIDEO
OUT OPTICAL
OUT
SAT(Cable/Satellite/Set-top box)
or
or
or
