2-4 Installing the Product

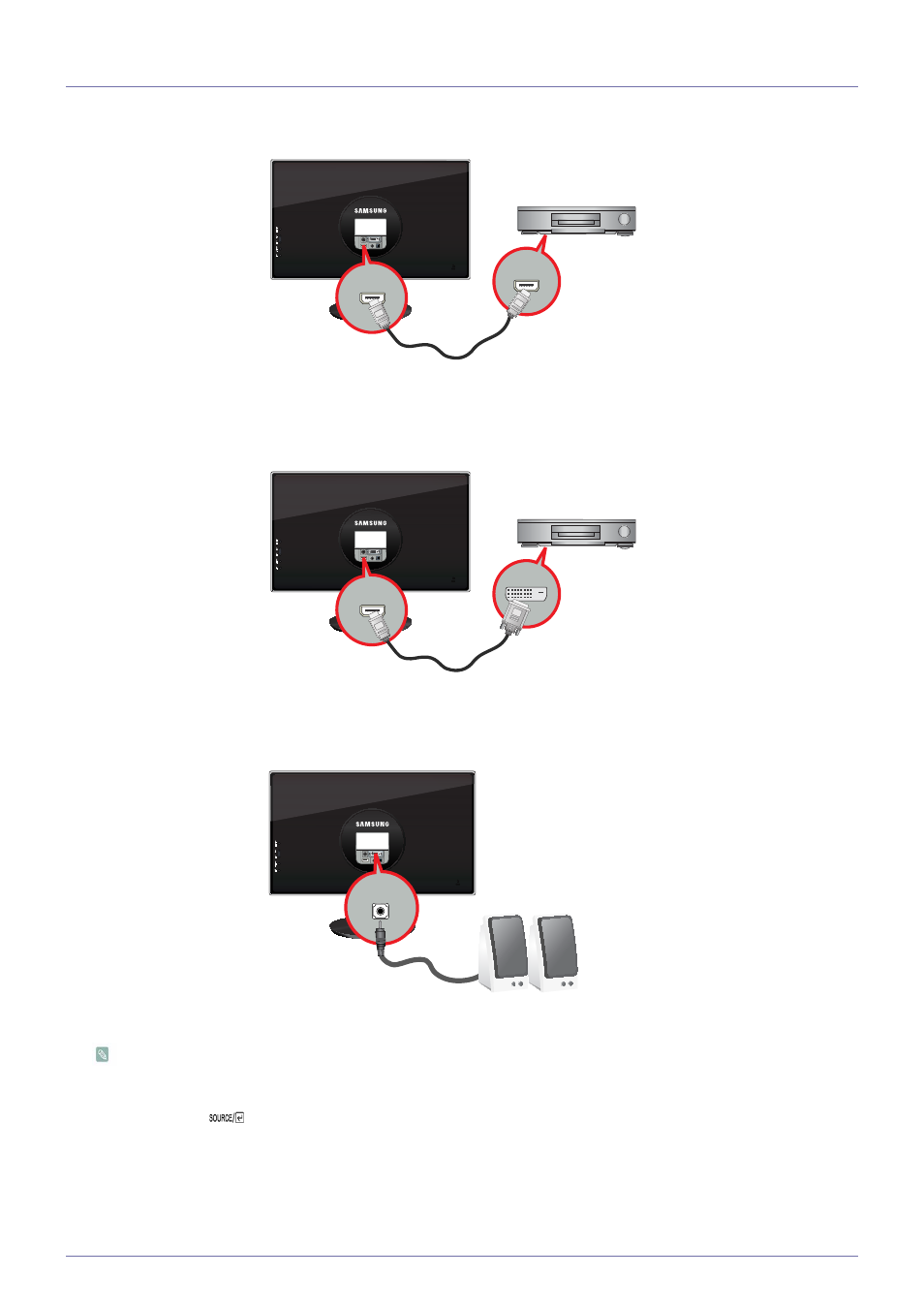

2-4 Connecting an AV Device
1. Connect the HDMI output port of your digital output device to the [HDMI IN] port of the product using the HDMI cable.
2. Connect the DVI output port of your digital output device to the [HDMI IN] port of the product using the HDMI to DVI cable.
3. Connect a speaker to the [AUDIO OUT] port of the product.
• This product won't make any sound when only the HDMI cable is connected without a speaker connected.
• When all the connections are complete, you can turn on and use the product and your DVD player (or digital output
device).
• Press the button and select as an input signal.
DIGITAL AUDIO OUT AUDIO OUT
DC 12V
HDMI IN
DVI IN
HDMI IN
DIGITAL AUDIO OUT AUDIO OUT
DC 12V
HDMI IN
DVI IN
HDMI IN
DIGITAL AUDIO OUT AUDIO OUT
DC 12V
HDMI IN
DVI IN
AUDIO OUT
