Getting started – Samsung MM-D470D-ZA User Manual
Page 12
12
English
Getting Started

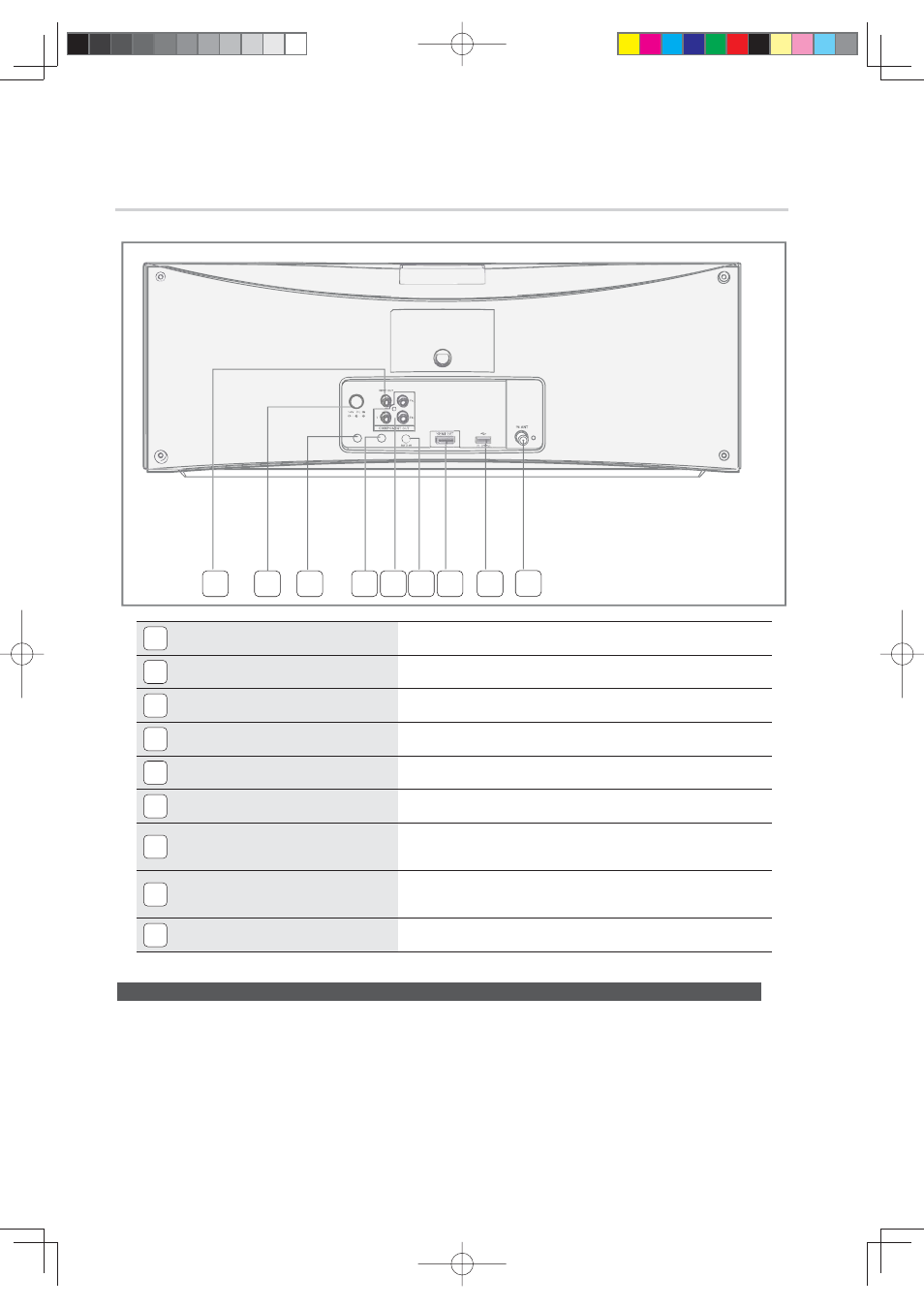

Rear Panel
1
VIDEO OUT JACK
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
2
14V DC IN JACK
Connect the DC adapter to this product.
3
PHONES
Connect headphones.
4
ONLY FOR SERVICE
For testing only. Do not use.
5
COMPONENT VIDEO OUTPUT JACKS
Connect a TV with Component video inputs to these jacks.
6
AUX IN JACK(AUDIO)
Connect to the audio out of an external device(such as a VCR).
7
HDMI OUT JACK
Use an HDMI calbe to connect this HDMI output terminal to the HDMI
input termianl on your TV for the best quality picture.
8
USB JACK
Connect external USB storage devices such as MP3 players, USB fl ash
memory, etc.
9
FM ANTENNA JACK
Connect the FM antenna.
Where to Install Your Micro-Compact System
To take full advantage of your new Micro-compact system, follow these installation instructions before connecting the unit.
Install the system on a flat, stable surface.
Never place this unit on carpeting.
Never place this unit in an outdoor area.
Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes.
Make sure that you have enough room to open the compact disc compartment easily.
Software upgrades using the USB Port must be performed with a USB memory flash stick only.
Do not obstruct the ventilation holes.
PHONES
ONLY FOR SERVICE
1
2
3
4 5 6 7
8
9
