REATTACHING THE REFRIGERATOR DOORS

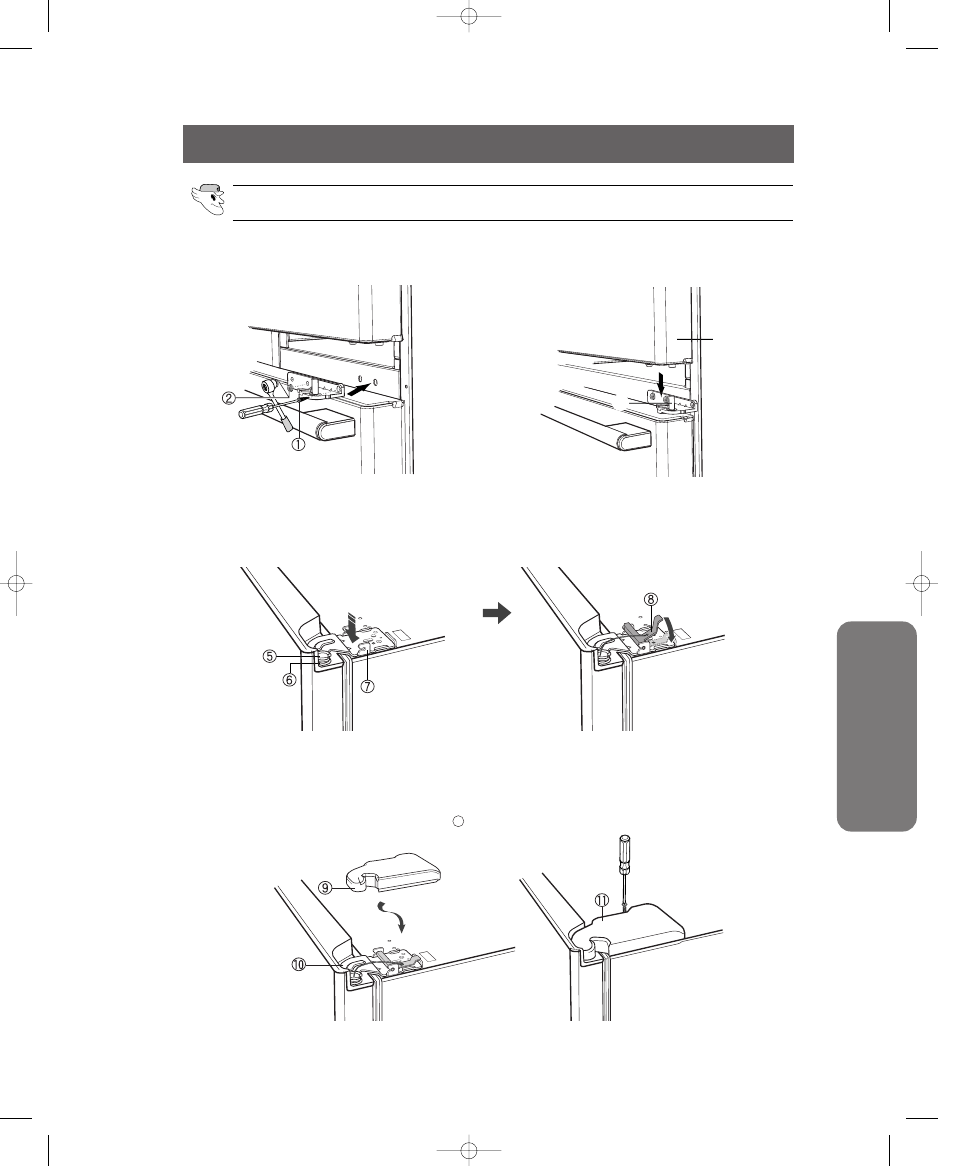

Reattaching the Fridge Door
1) Reattach a phillips screw (
➀) and two hex head
screws (
➁) to the hinge completely.
2) Place the hole in the bottom of the door (
➃)
over the hinge (
➂).
④
③
3) Insert the upper hinge shaft (
➄) into the hole (➅). After levelling between the hinge brackets (➆).
Reattach and close the latch (
➇) along the arrow.
4) Put the front part of the upper hinge cover (
➈) on the front part of the upper hinge (➉) and reattach it
from the front part of the upper hinge cover first.
5) Reattach a phillips screw to the hinge cover ( ).
