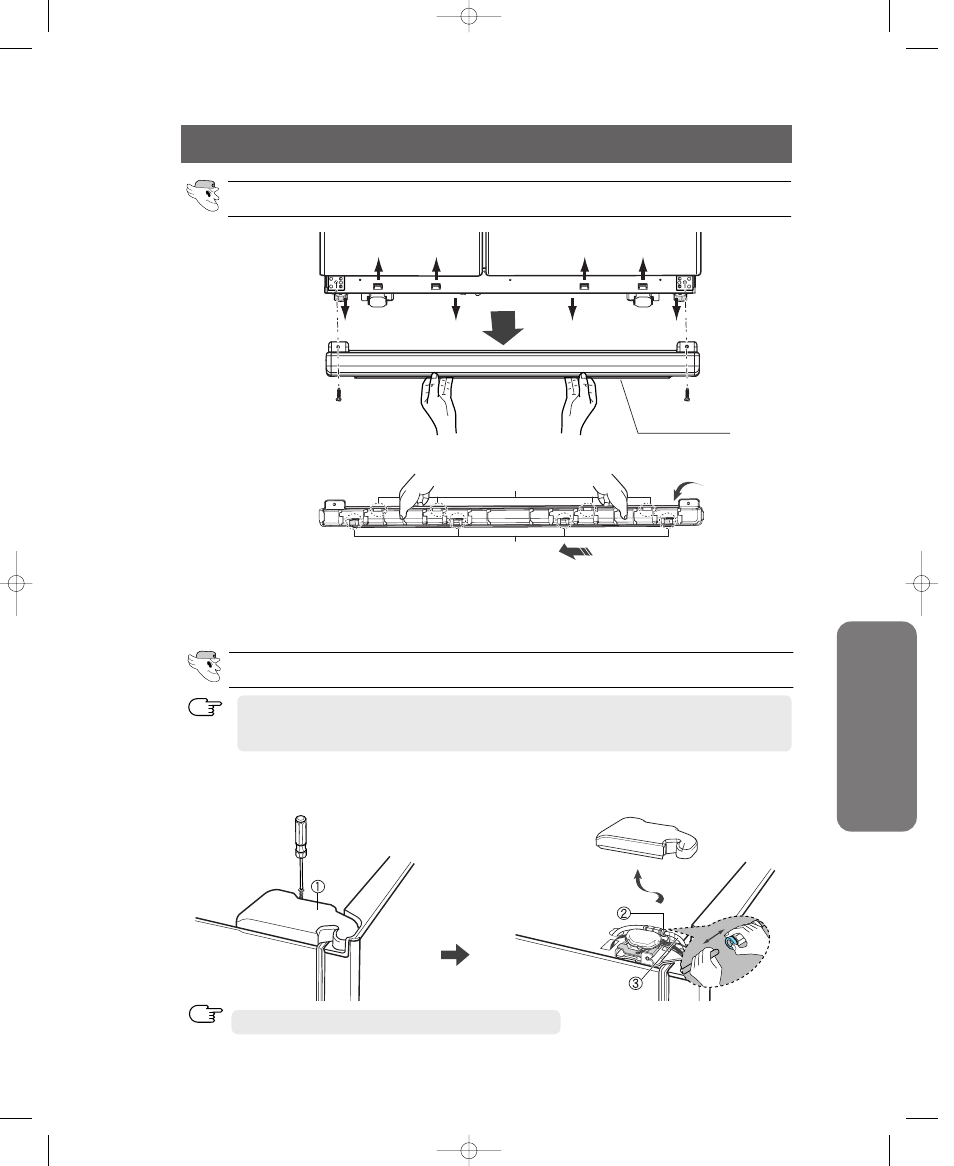

1) With the door closed,remove the upper hinge cover (

➀) using a screwdriver, and then remove the

water tube by pressing the coupler-ring (

➁) and pulling the water tube (➂) away.

Unscrew two phillips screws from the front leg cover.

Pull the front leg-cover down with both hands and remove it by lifting it up with the upper rib.

Then, disengage the lower hooks.

Removing the Freezer Door

• Lift the door straight up.
• Be careful not to pinch the water tubing and wire harness on the door.
• Place doors on a protected surface.

NOTE

REMOVING THE REFRIGERATOR DOORS

FRONT LEG COVER

RIB

HOOK

Removing the Front Leg Cover

Do not cut the water tube. Separate it from the coupler.
