English-24
Appendix
(1) (2)

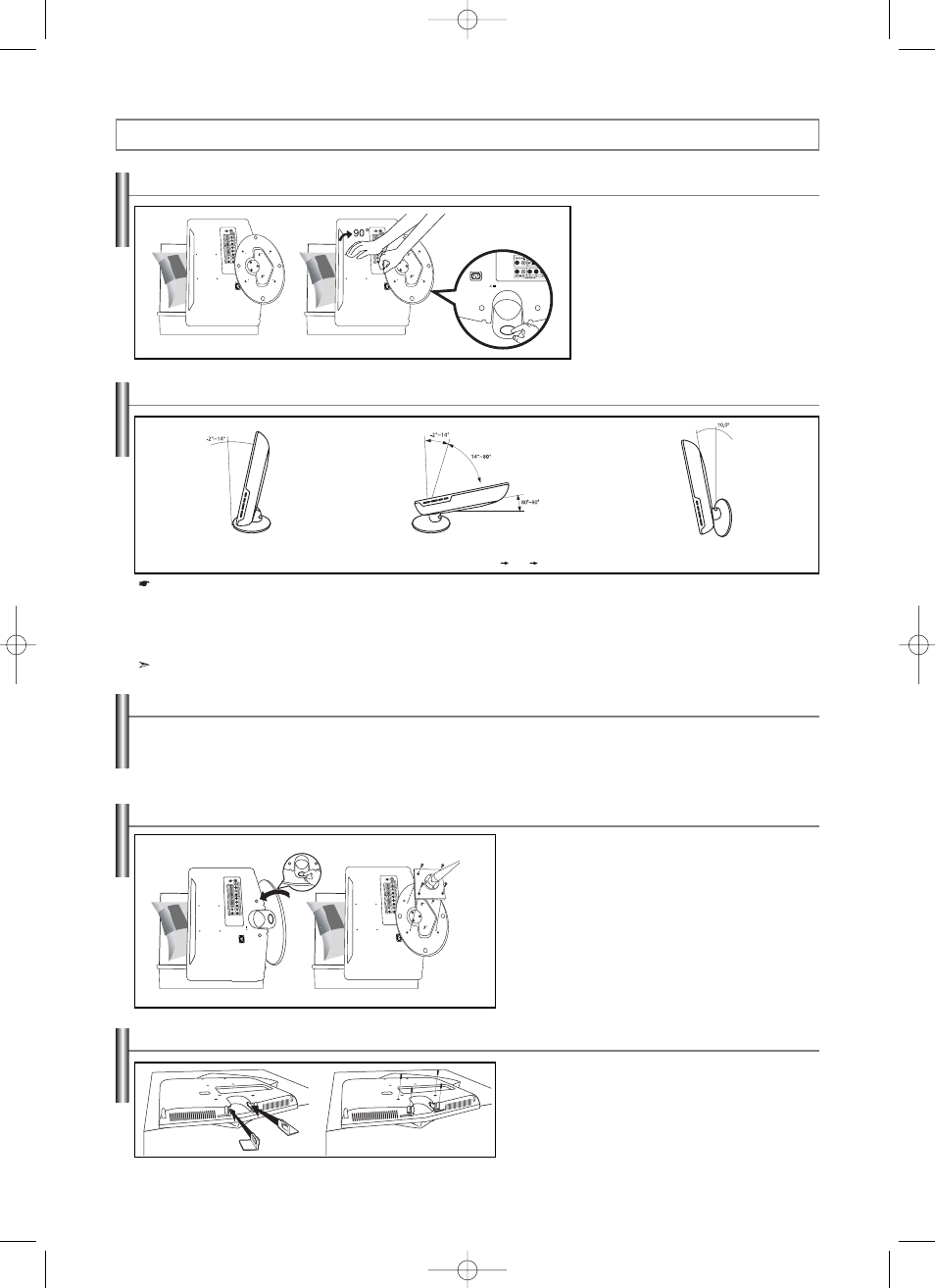

1. Place the front of the TV onto a soft cloth or
cushion on a table as in Figure (1).
- Align the TV bottom along the table edge.
2. Press on the center of the TV back.
Adjust the stand as in Figure (2) while pressing
the button on the back of the stand.
3. Place the TV on the table so that the TV sits
safely.
Button
How to Adjust the Stand
1. Figure (1) shows the adjustment angle (-2°~14°) when you use the LCD on its stand.
Excessive tilting can turn the LCD TV over which may cause damage.
2. Figure (2) shows the adjustment angle (14°~80°) when you convert the LCD from stand-based use to wall-mount.
3. Figure (3) shows the adjustment angle (0°~10°) when you mount the LCD TV to a wall.
You will hear a “Click” sound when changing the angle from 1 to 2 or 3 to 2.
(1) Angle adjustment when using the
TV on its stand.
(2) Angle adjustment when converting from
Stand to Wall mount (1 3, 3 1)
(3) Angle adjustment when LCD
TV is wall-mounted
When you adjust the stand, press the button on the back of the stand.
How to Adjust the Angle of the TV
Wall mount items (sold separately) allow you to mount the TV on the wall. For the detailed information on installing the Wall Mount,
see the instruction in the Wall Mount items. Contact a technician for installing the wall bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.
Installing the Wall Mount Kit
1. Place the TV face down on a soft cloth or cushion
on a table.
2. Adjust the stand, pressing the button on the back
of the stand.
3. Align the mounting interface pad (not supplied) with the
holes in the stand bottom and secure it with the four screws
that come with the arm-type base, wall mount hanger or
other bases (not supplied).
(2) (3)
Mounting pad
(Sold separately)
Button
Installing VESA compliant mounting devices
1. When installing the TV on the wall without using the stand,
insert decoration covers into the holes as described in the
picture (1).
2. After inserting the decoration covers, fasten them with 4
screws as described in the picture (2).
Using the Decoration Covers
(1) (2)
