English - 4

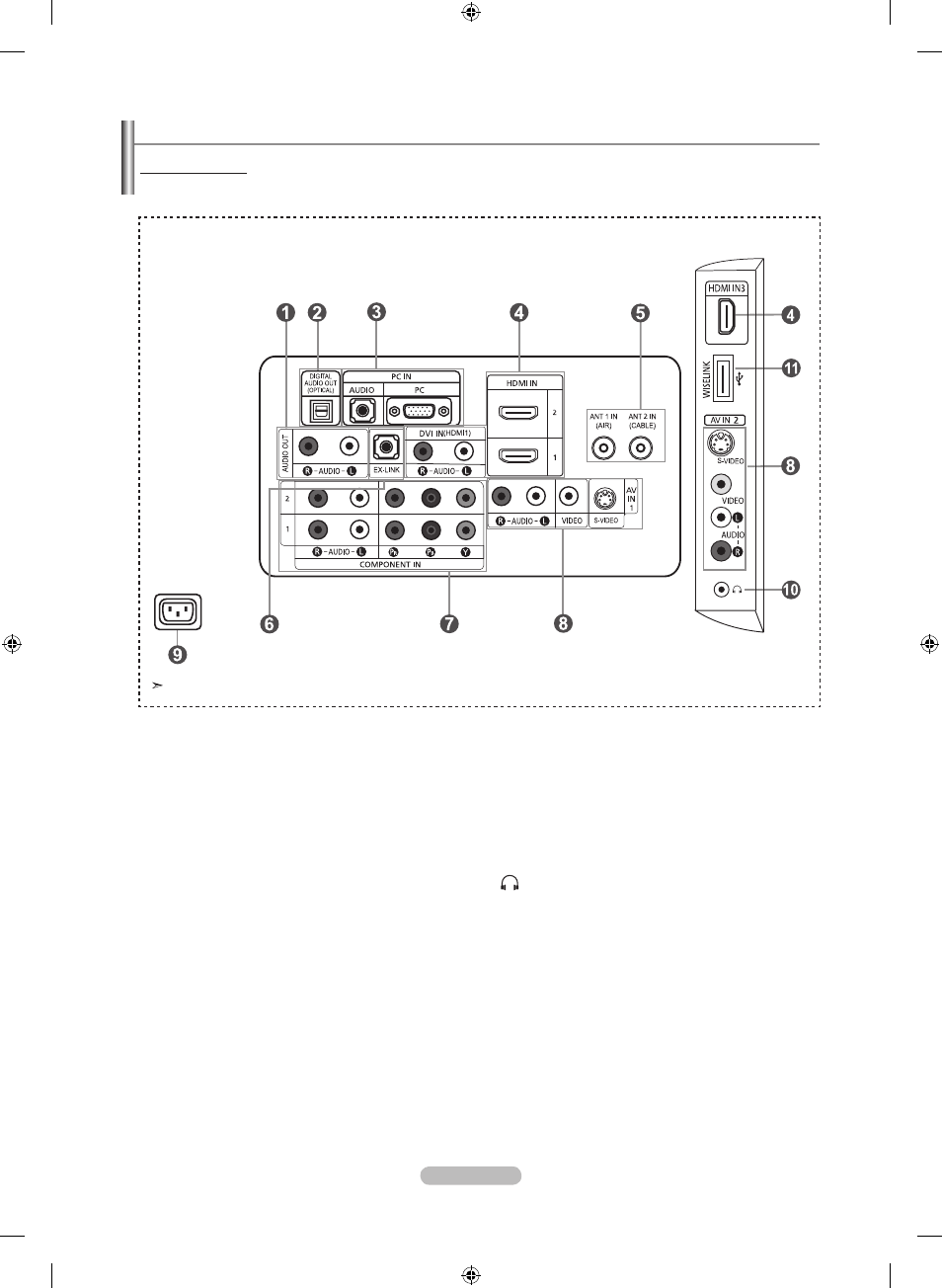

Viewing the Connection Panel
Rear Panel Jacks
Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players.
For more information on connecting equipment, see pages 6-11.
1 AUDIO OUT
Connects to the audio input jacks on your Amplifier/
Home theater.
2
DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component.
3
PC IN
Connects to the video and audio output jacks on
your PC.
4 HDMI IN 1,2, / DVI IN(HDMI1) (AUDIO R/L)
Connects to the HDMI jack of a device with an HDMI output.
Use the HDMI IN 1 jack for DVI connection to an
external device.
Use a DVI to HDMI cable or DVI-HDMI adapter
(DVI to HDMI) for video connection and the DVI IN
(HDMI1) ‘R-AUDIO-L’ jacks for audio.
- No sound connection is needed for an HDMI to HDMI
connection.
- When using an HDMI/DVI cable connection, you must use
the HDMI IN 1 jack.
5
ANT 1 IN/ANT 2 IN
Connects to an antenna or cable TV system.
6
EX-LINK
Connector for SERVICE only.
7 COMPONENT IN 1,2
Connects Component video/audio.
8
AV IN 1 / AV IN 2
Video and audio inputs for external devices, such as a
camcorder or VCR.
S-VIDEO
Connects an S-Video signal from a camcorder or VCR.
9
POWER INPUT
Connects the supplied power cord.
0
HEADPHONE
Connects a set of external headphones for private
listening.
!
WISELINK
Connect a USB mass storage device to view photo files
(JPEG) and play audio files (MP3).
[Side Panel Jacks]
The product color and shape may vary depending on the model.
