U-bolts – Campbell Scientific SP50-L/SP85-L Solar Panel User Manual
Page 14
SP50-L/SP85-L Solar Panel

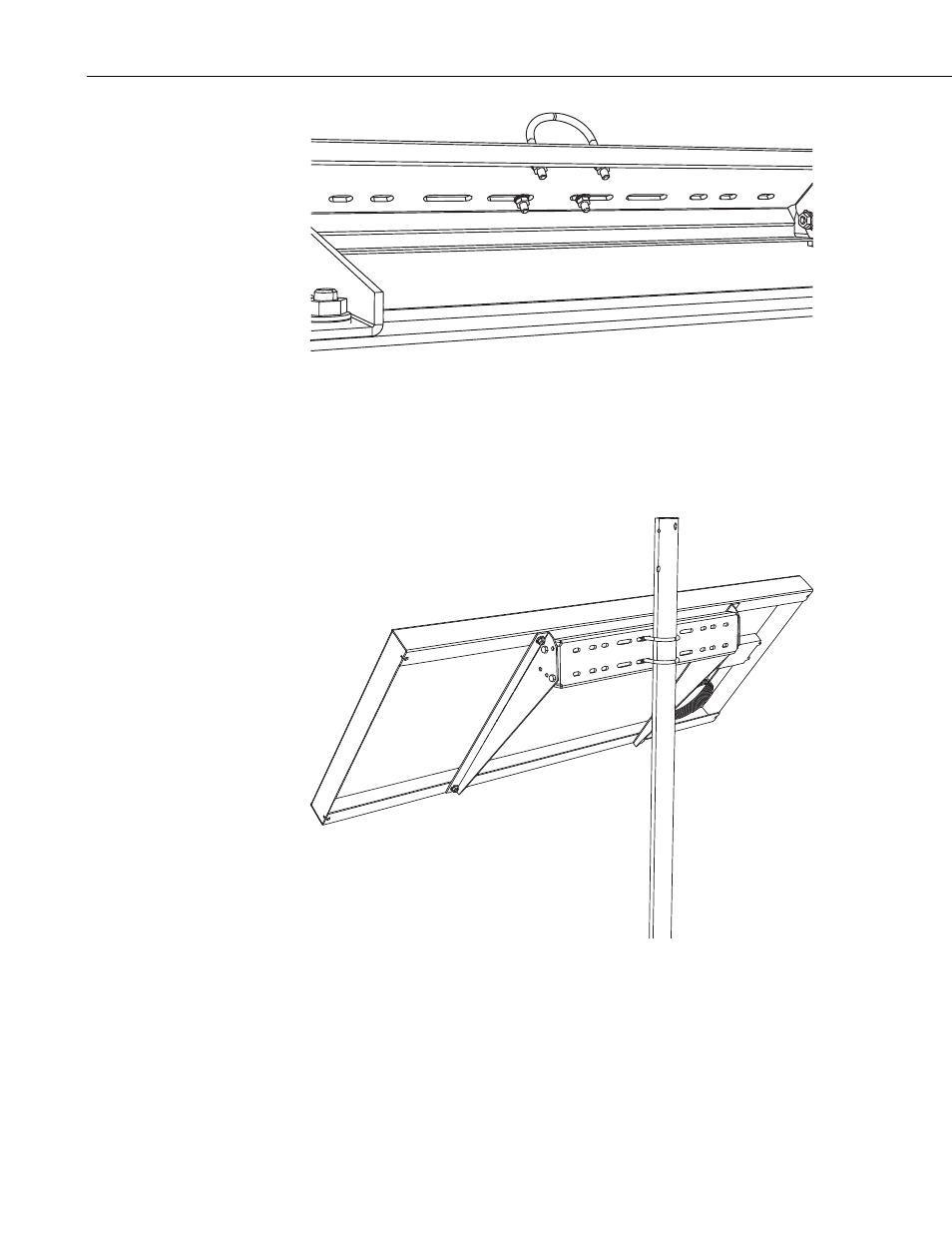

FIGURE 3-11. The solar panel is ready for pole or tripod mounting
The panel should be mounted facing the equator. The nuts fastening the solar
panel mount to the pole or the tripod mast should be as tight as possible
without bending the mount. See FIGURE 3-12 and FIGURE 3-13.
FIGURE 3-12. The solar panel is mounted to a pole using two 5/16-18
x 2.0 u-bolts
