SP50-L/SP85-L Solar Panel

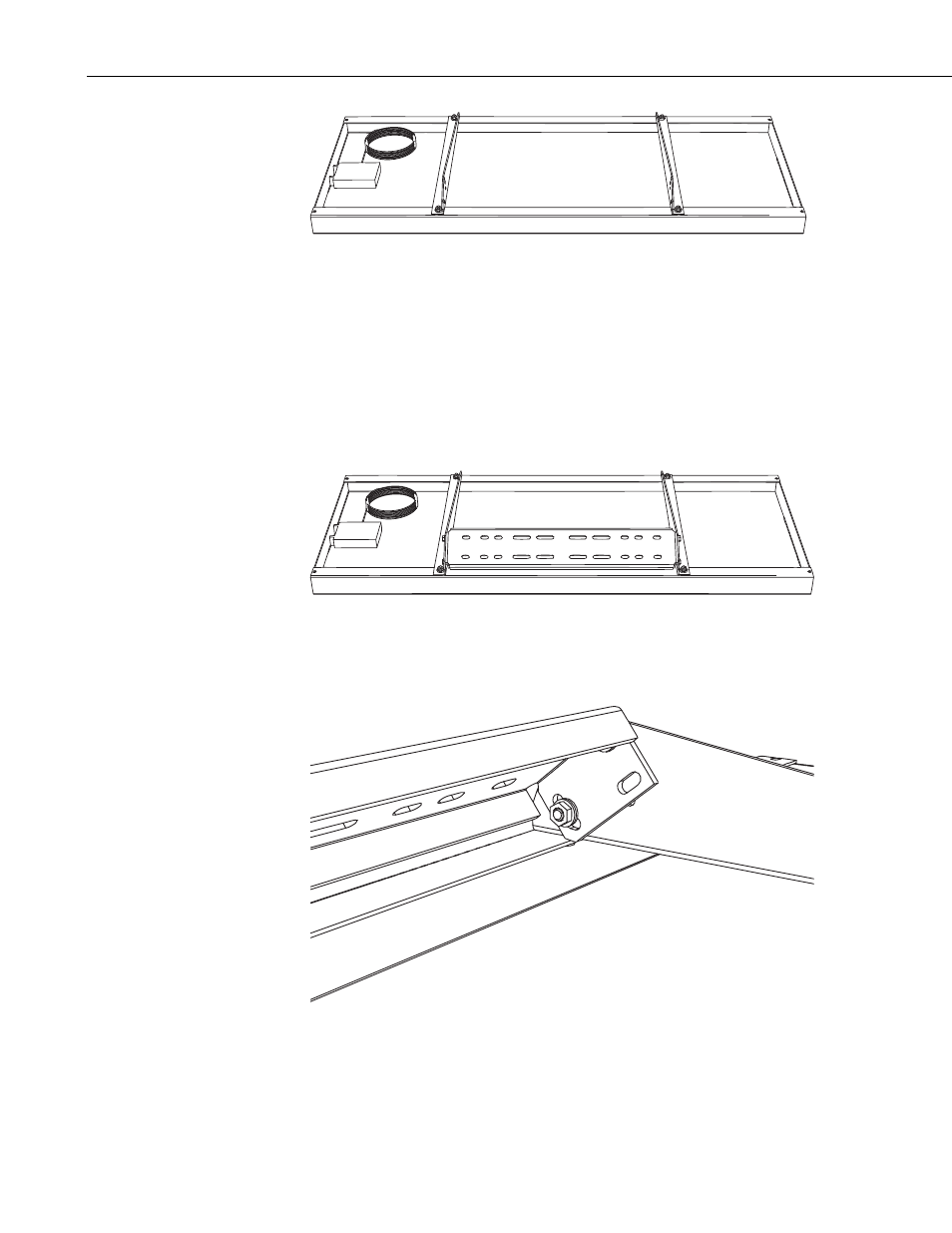

FIGURE 3-6. Right and left arm brackets are attached to the back of
the solar panel
Attach the mount to the back of the solar panel between the right and left
brackets already in place as shown in FIGURE 3-7. Hint: jump to Section 3.3,
Orientation, to determine which holes to use in order to mount the panel at the
optimum angle for the site’s latitude. Use the 5/16-18 x 0.75 Hex bolt and nuts
along with the matching lock washers and flat washers. Use two flat washers,
one on each side, for each bolt as shown in FIGURE 3-8.
FIGURE 3-7. Attach the mount to the back of the solar panel between
right and left arm brackets
FIGURE 3-8. Use appropriate lock washers and flat washers. Two flat
washers, one on each side, are used for each Hex bolt.
6
