SP50-L/SP85-L Solar Panel
5 6
7
8
9
10
11
12
13
14

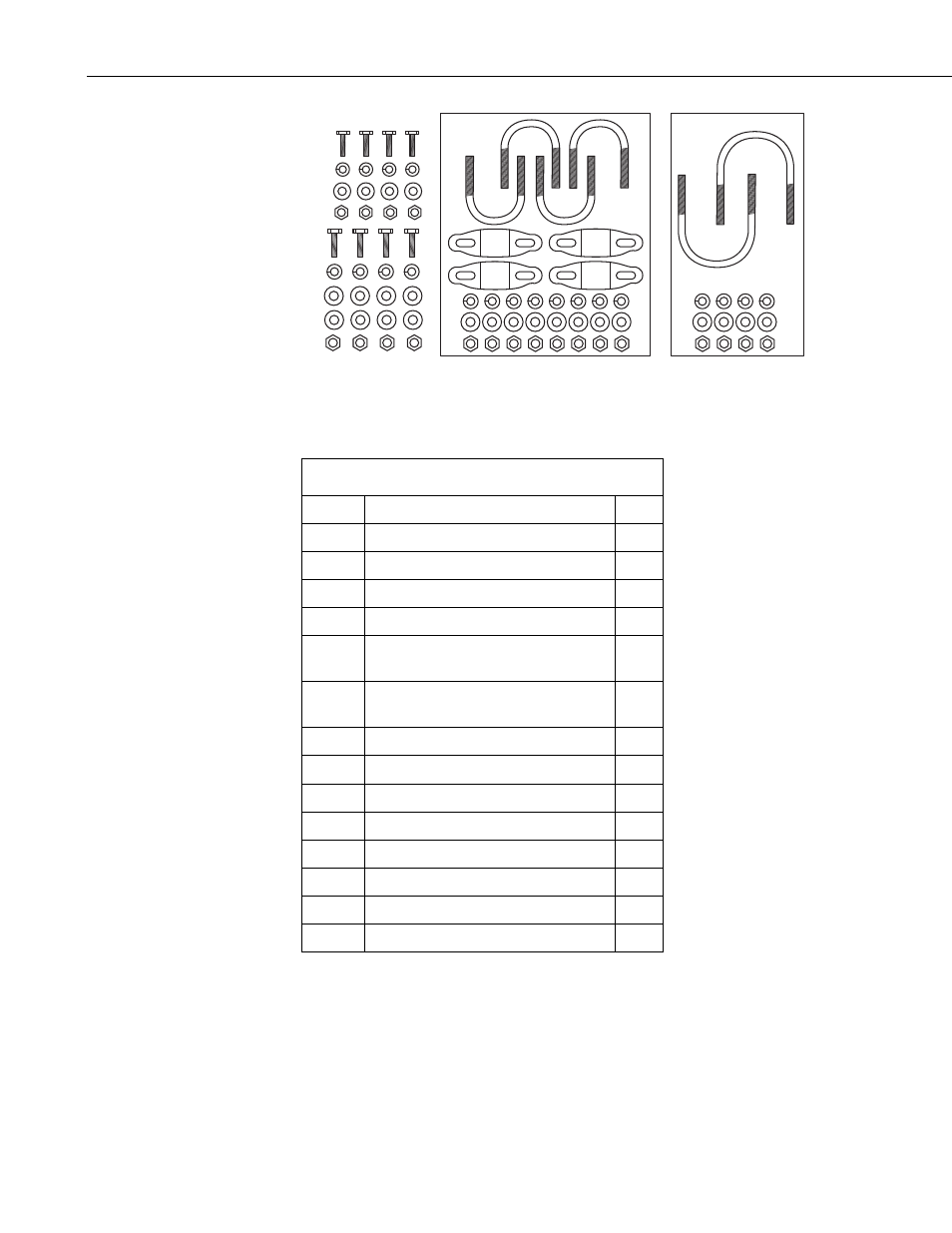

FIGURE 3-3. Mounting hardware included with the solar panel
TABLE 3-1 shows the list of parts included in the mounting hardware package.
TABLE 3-1. Parts List
Item # Description Qty
1 Solar Panel 1
2 Right Arm Bracket 1
3 Left Arm Bracket 1
4 Mount 1
5 5/16-18 x 1.5 U-Bolt
with lock washers, flat washers, nuts 4
6 5/16-18 x 2.0 U-Bolt
with lock washers, flat washers, nuts 2
7 1/4-20 x 0.75 Hex bolt 4
8 1/4-20 Nut 4
9 Locke washer 4
10 Flat washer 4
11 5/16-18 x 0.75 Hex bolt 4
12 5/16-18 Nut 4
13 Lock washer 4
14 Flat washer 8
4
