4.3.3 Modem Connections Using the SC932A .3.3 Modem Connections Using the SC932A
The SC932A interface is used to connect the modem to the CS I/O port, and is
recommended for dataloggers with the mixed-array operating system (e.g., the
CR10X). The SC932A interface is used to connect the modem to the CS I/O port, and is
recommended for dataloggers with the mixed-array operating system (e.g., the
CR10X).
Wiring:
Red 12V (or
switched 12V)
Black G
White Not Used
10873 serial cable
provided with the SC932A

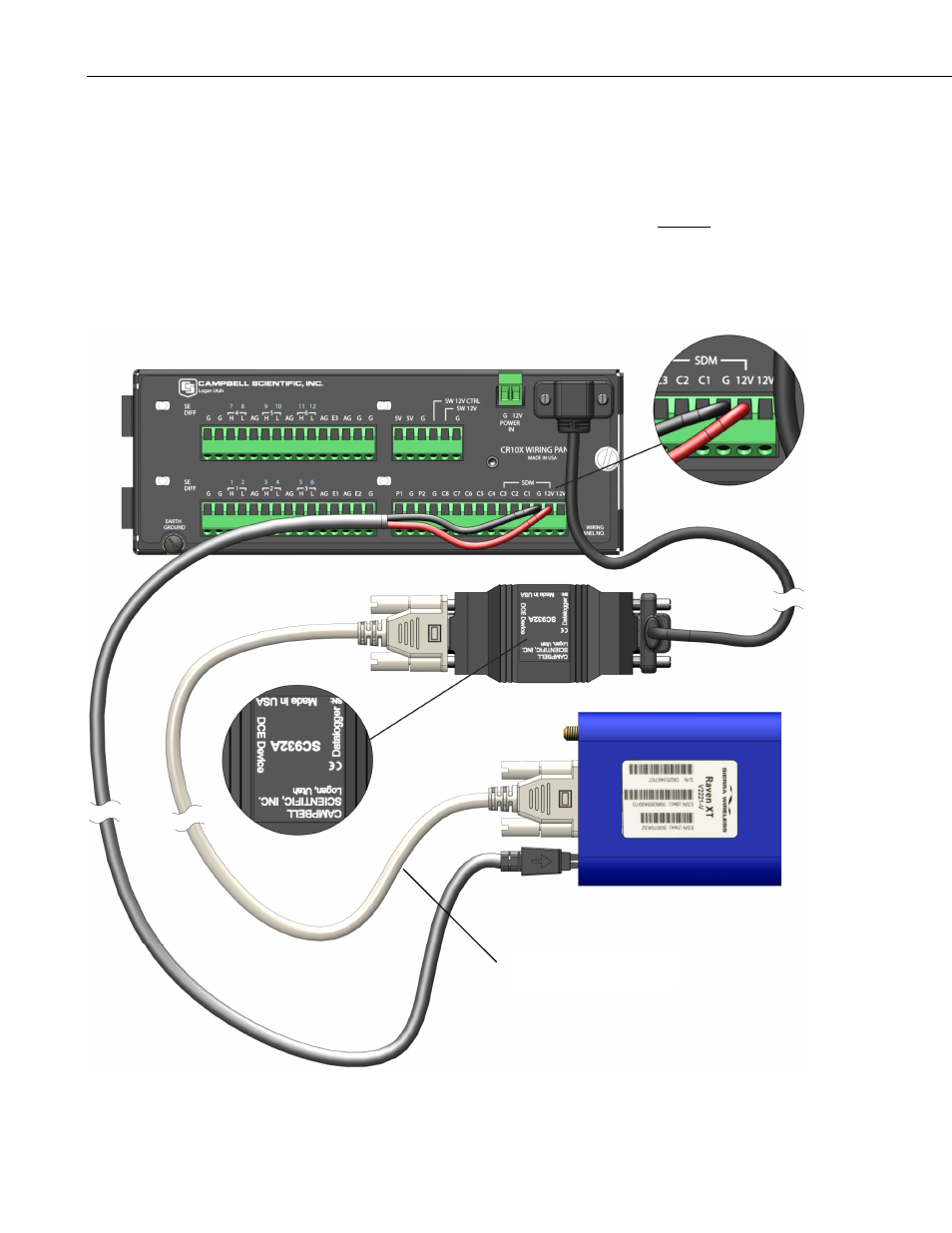

FIGURE 4-4. Connections using the SC932A
8
