P2546A-L Anemometer
4.2 Step 2 — Use SCWin ShortCut to Program Datalogger and
Generate Wiring Diagram
The simplest method for programming the datalogger to measure an P2546A is
to use Campbell Scientific's SCWin Short Cut Program Generator.

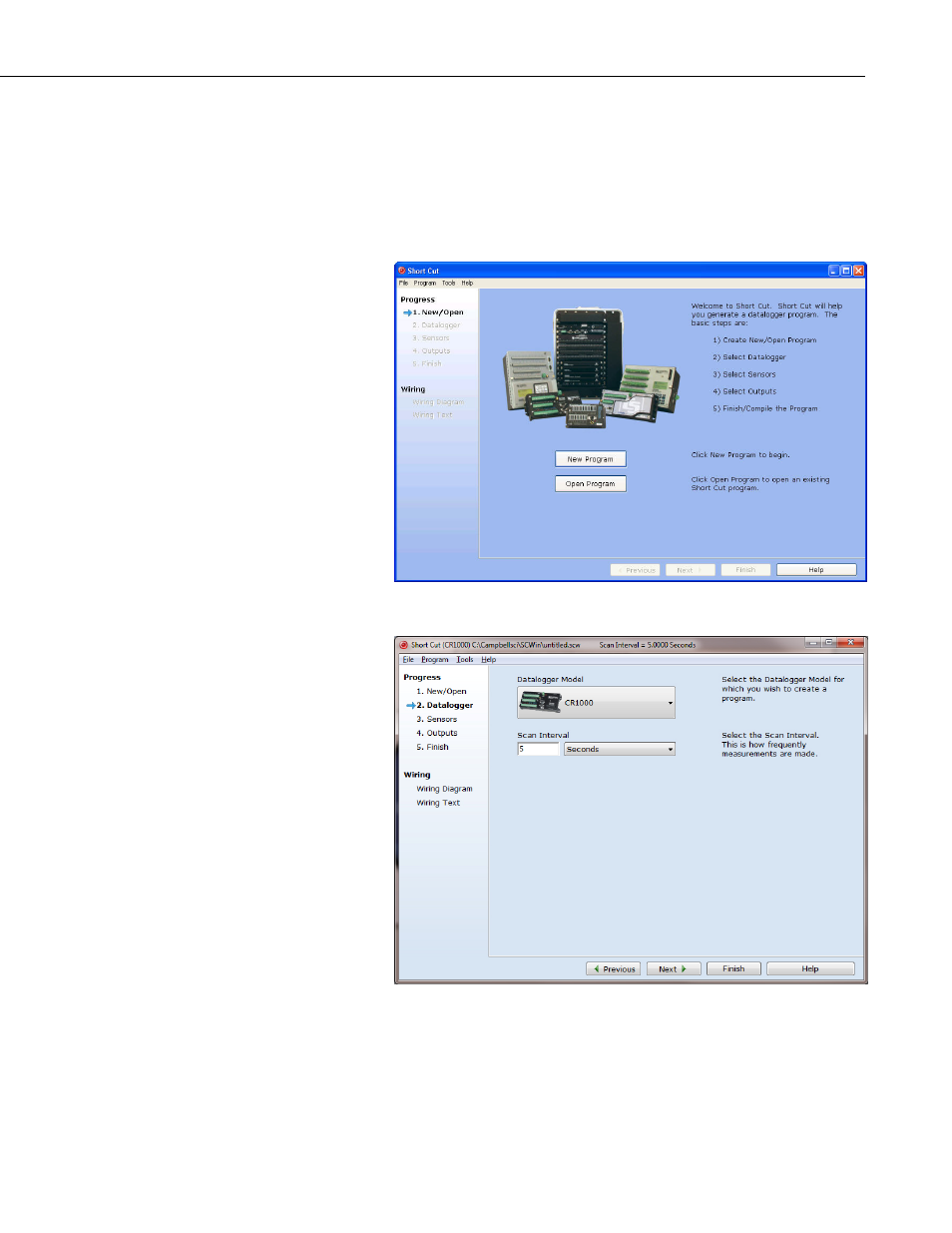

1. Open Short Cut and click on New Program.
2. Select datalogger and enter scan interval.
3
