CM106BK Tripod Kit

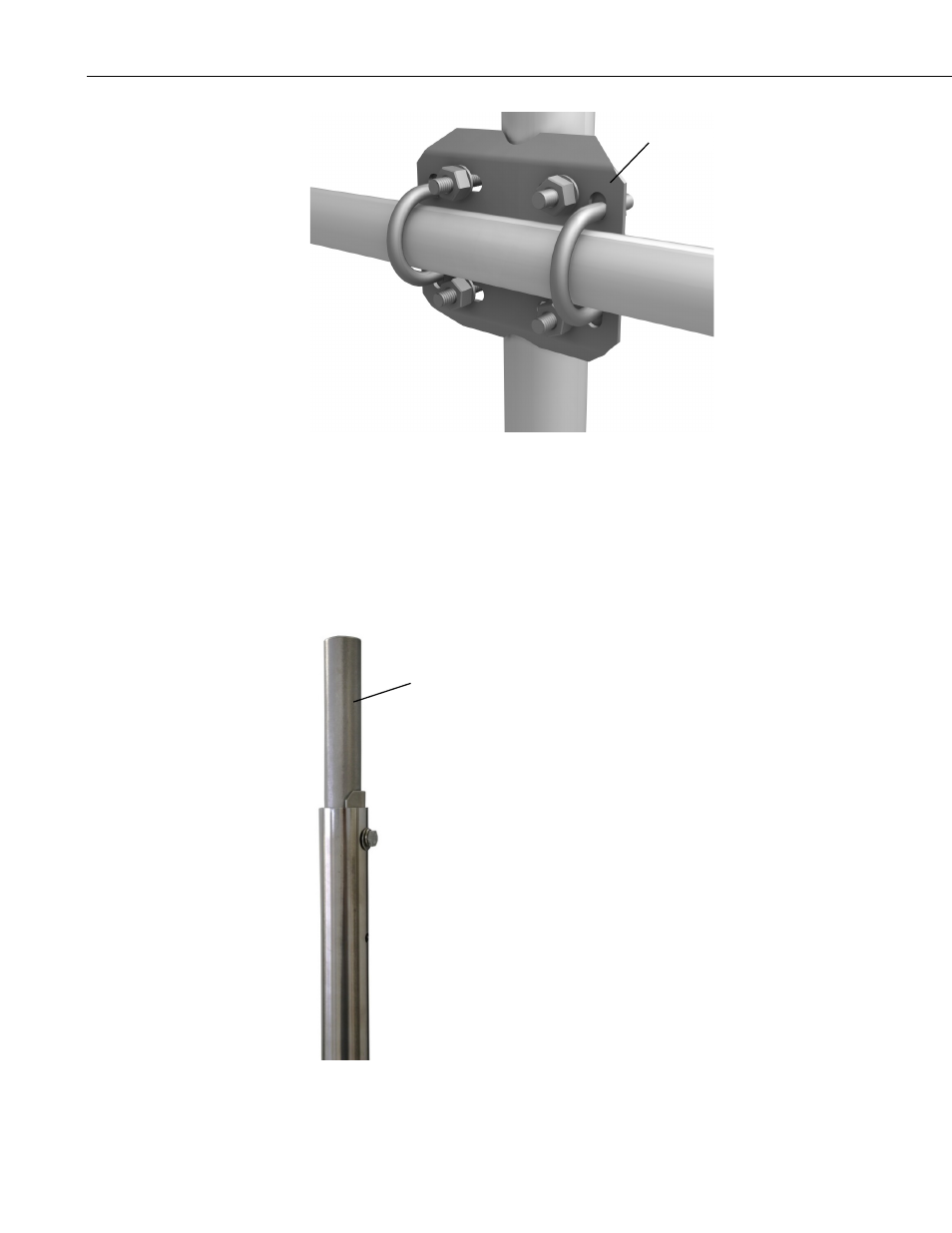

FIGURE 7-1. CM210 Crossarm Mounting Kit (shown with user-supplied
pipe)
7.2 CM216 Mast Mounting Kit
The CM216 attaches to the top of the mast, and provides a 3/4 in. or 1 in.
mounting pipe (1.05 in. or 1.32 in. OD) that extends 4 in. above the mast, as
shown in FIGURE 7-2.
FIGURE 7-2. CM216 Mast Mounting Kit
CM210
CM216
18
