Model 083E Relative Humidity and Temperature Sensor

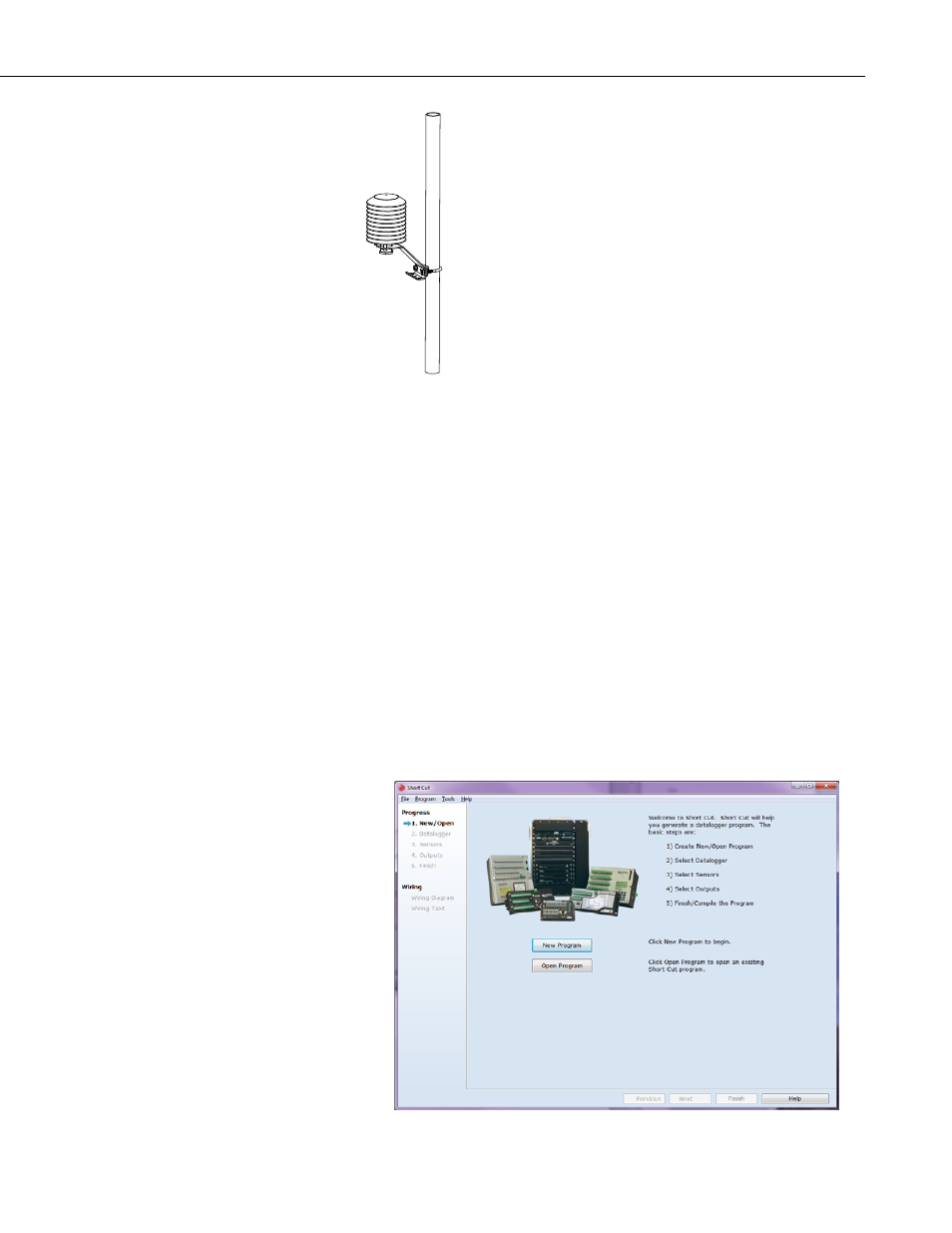

FIGURE 4-2. 41003-5 radiation shield mounted on a mast
3. Insert the sensor through the center of the hex plug at the bottom of the
radiation shield.
4. Tighten the hex plug such that it compresses against the body of the 083E
to hold it inside the radiation shield.
5. Attach the sensor cable to the connector on the bottom of the 083E.
6. Secure sensor cable to mast or crossarm with cable ties.
4.2 Programming with Short Cut
Short Cut Program Generator for Windows can be used to program the
CR1000 datalogger to measure the 083E as outlined in the following
procedure. Short Cut can also be used to program other 083E compatible
Campbell Scientific dataloggers.
1. Open Short Cut and click on New Program.
