Model 083E Relative Humidity and Temperature Sensor
3. Initial Inspection
• Upon receipt of the 083E, inspect the packaging and contents for damage.
File damage claims with the shipping company.
• The model number and cable length are printed on a label at the
connection end of the cable. Check this information against the shipping
documents to ensure the expected product and cable length are received.
4. Quickstart
Figure 1-1 shows the 083E installed in a 41003-5 radiation shield. Figures 4-1
and 4-2 show the radiation shield mounted on a crossarm and a mast,
respectively.
4.1 Quick Installation
Review Section 7, Installation for complete instructions. To install the 083E,
you will need:
• 41003-5 Radiation Shield
• 28415 Hex Plug (ships with 083E sensor)
1. Insert the 28415 hex plug that ships with the 083E sensor into the
underside of the 41003-5 base.
2. Attach the radiation shield to the tripod mast, crossarm, or tower leg using
the supplied U-bolt. See Figures 4-1 and 4-2 for examples of shield
mounting.

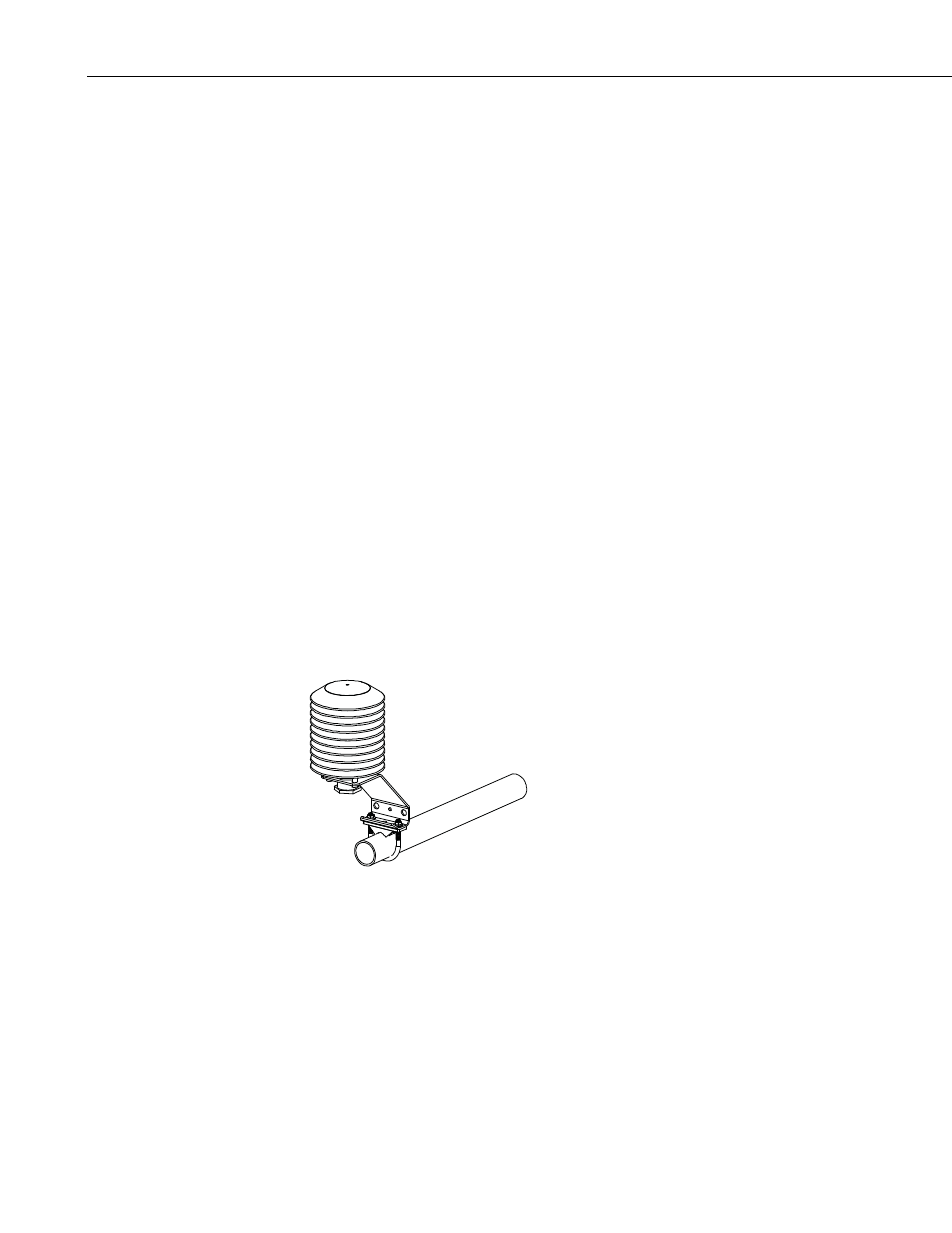

FIGURE 4-1. 41003-5 radiation shield mounted on a crossarm
2
