4-Post Rack/Cabinet Installation – Dual Rail Drawers/Switches

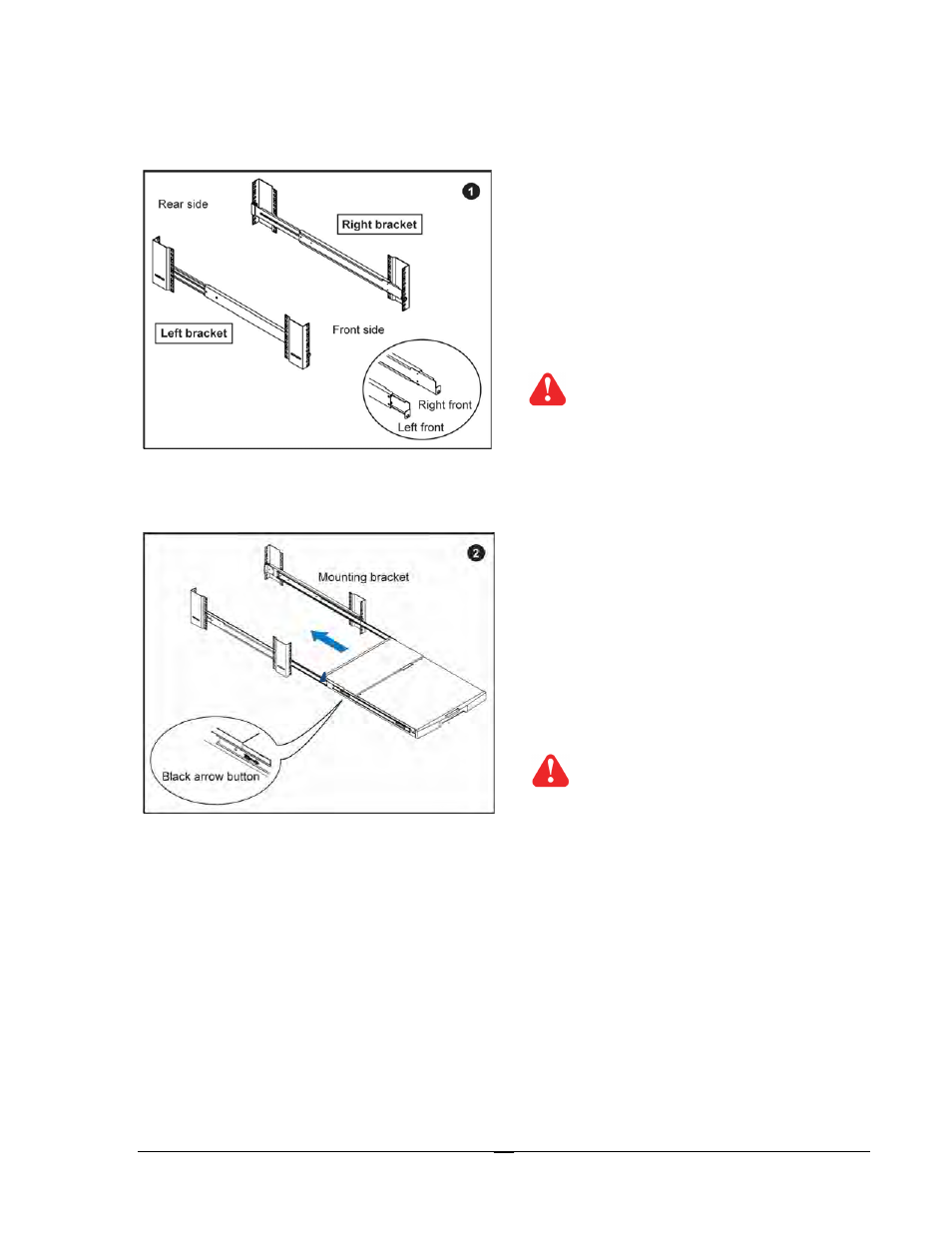

• Attach the left and right mounting bracket
to rack 19” mounting rails.
• Adjust the rear mounting bracket to fit
your rack.
• Use six M6 cage nuts, screws and cup
washers to attach the brackets to the
rack.
Caution:
Leave the screws slightly loose until you
complete the installation in step 4
• Pick up the LCD KVM Drawer.
• Insert the LCD KVM Drawer into the
mounting brackets.
• Pull and hold the left and right black
arrow buttons on the rails.
• Slowly return the LCD KVM Drawer to
closed position.
Caution:
Keep your fingers away from the slide stop
(blue circle) behind the black arrow buttons
