Components and Interfaces

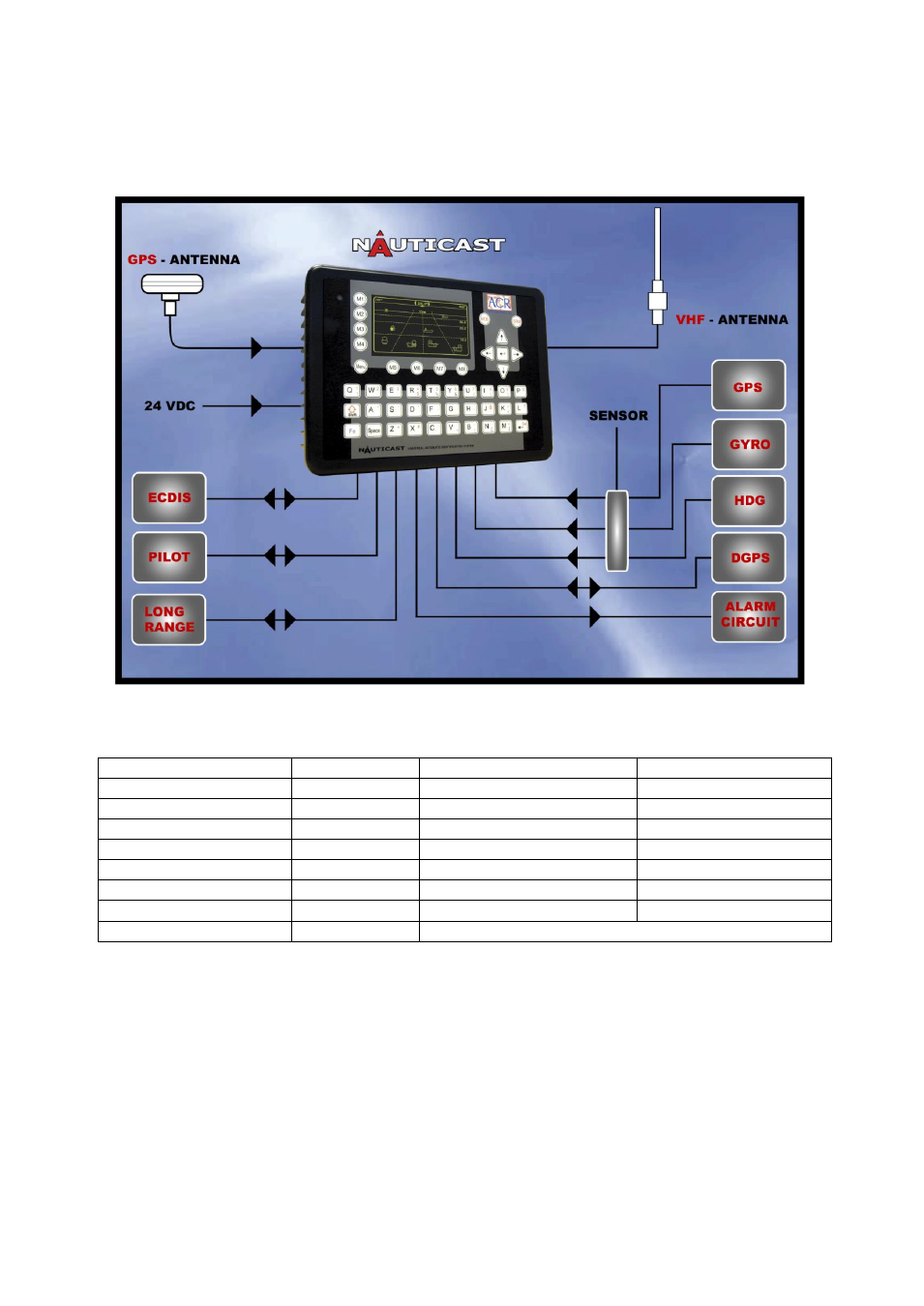

The diagram below illustrates which devices can be connected to the NAUTICAST
™. For a
detailed description of sensor connecting e.g. an existing Gyro to the NAUTICAST ™ refer to
Chapter 3.5 “Sensor Interface Definitions.”
3.3 General Interface Description
Interface
Designation Speed Direction
Sensor 1 CH 1 4800bps or 38400bps Input
Sensor 2 CH 2 4800bps or 38400bps Input
Sensor 3 CH 3 4800bps or 38400bps Input
ECDIS CH 4 38400bps Input/Output
PILOT CH 5 / CH 15 38400bps Input/Output
LONG RANGE CH 8 38400bps Input/Output
DGPS (RTCM SC104) CH 9 9600bps Input/Output
ALARM CIRCUIT CH 10 Dry relay contact (power off and alarm state closed)
