LBL Lighting MO Surf Mag Xfmr 600w 277v/12v - Manual (Page 3)

3
SAFETY WIRE

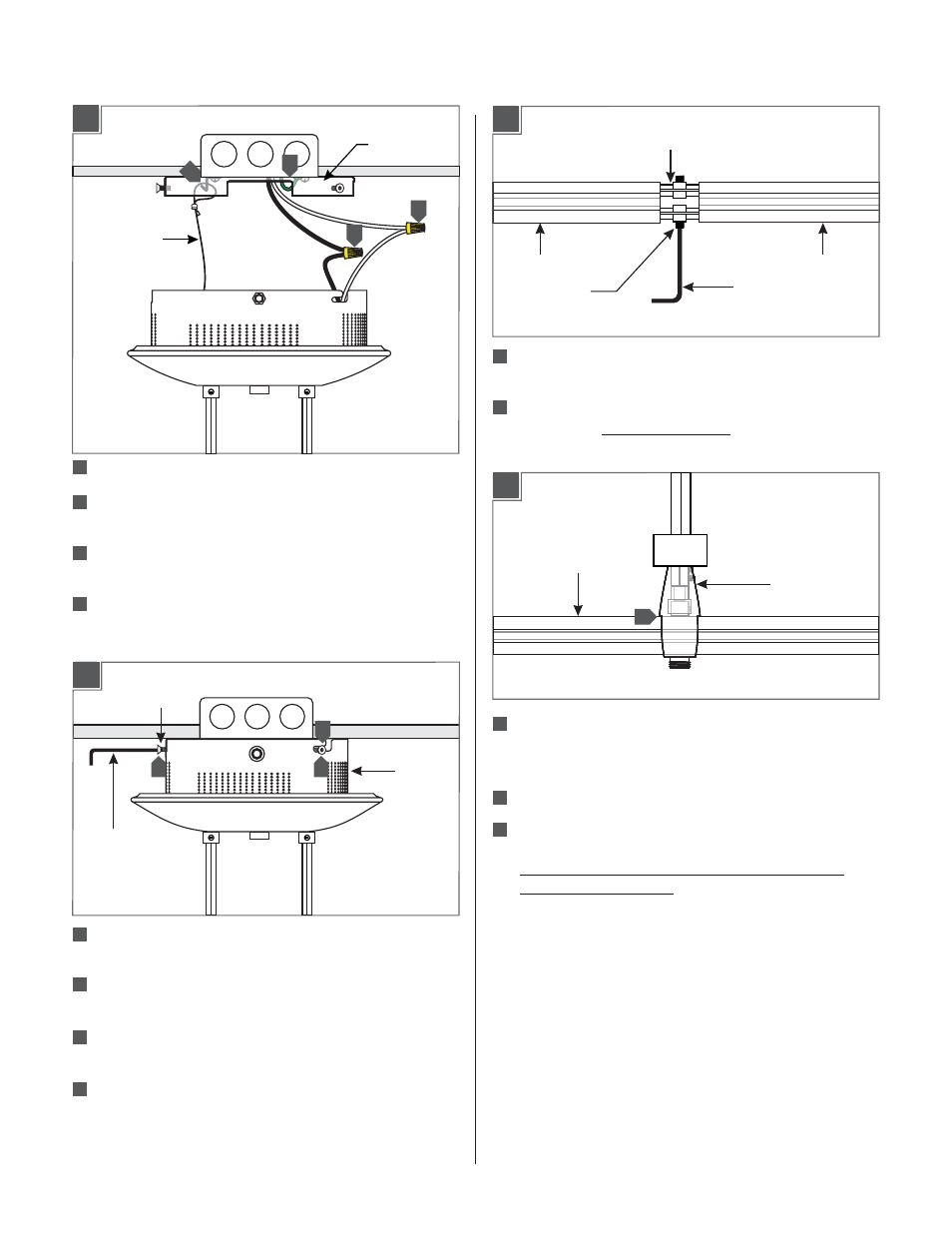

Install the Transformer
3
4
3A
CROSSBAR
BRACKET
1
2
Properly place all wires and wire nut connections into the
transformer housing.
Slide the vertical portion of the housing "L" slots completely
onto the three backplate #8-32 flat head screws.
Rotate the transformer housing clockwise to lock the housing
slots around the #8-32 flat head screws.
Tighten the three #8-32 flat head screws with the 3/32 Allen
wrench to secure the transformer in place.
#8-32 FLAT
HEAD SCREW
3/32 ALLEN
WRENCH
HOUSING 8 7
6
5
6
7
8
3B
Push two Monorail sections completely onto the straight
isolating connectors.
Tighten the M3 set screws firmly with the provided 1.5 MM
Allen wrench. the set screws which Do Not Over Tighten
may strip the thread.
M3 SET SCREW
1.5 MM ALLEN
WRENCH
MONORAIL MONORAIL
STRAIGHT ISOLATING CONNECTOR
4A
1
2
Hook the transformer safety wire onto the crossbar bracket.
Connect the crossbar green wire to the ground in accordance
with local electrical codes.
Connect the white transformer wire to the neutral power line
with a wire nut.
Connect the black transformer wire to the hot power line
wire with a wire nut.
4
2
3
1
Connecting the Center Power Feed
Connectors to the MonoRail
4B
3
4
5
Connect the Monorail to the standoffs so that the Monorail is
secured in place. Refer to the instruction provided with the
standoff.
Make sure that the transformer power is off.
Place one power feed housing onto one Monorail section and
the other power feed housing on the other Monorail section.
Make sure that the Monorail sections are electrically
isolated from each other.
MONORAIL
POWER FEED
HOUSING
5
