Installation Instructions for
Telescoping Rigid Standoffs with Wall Bracket
1.3
HANGER-ADJ-_-WB
980MRLCSP
1

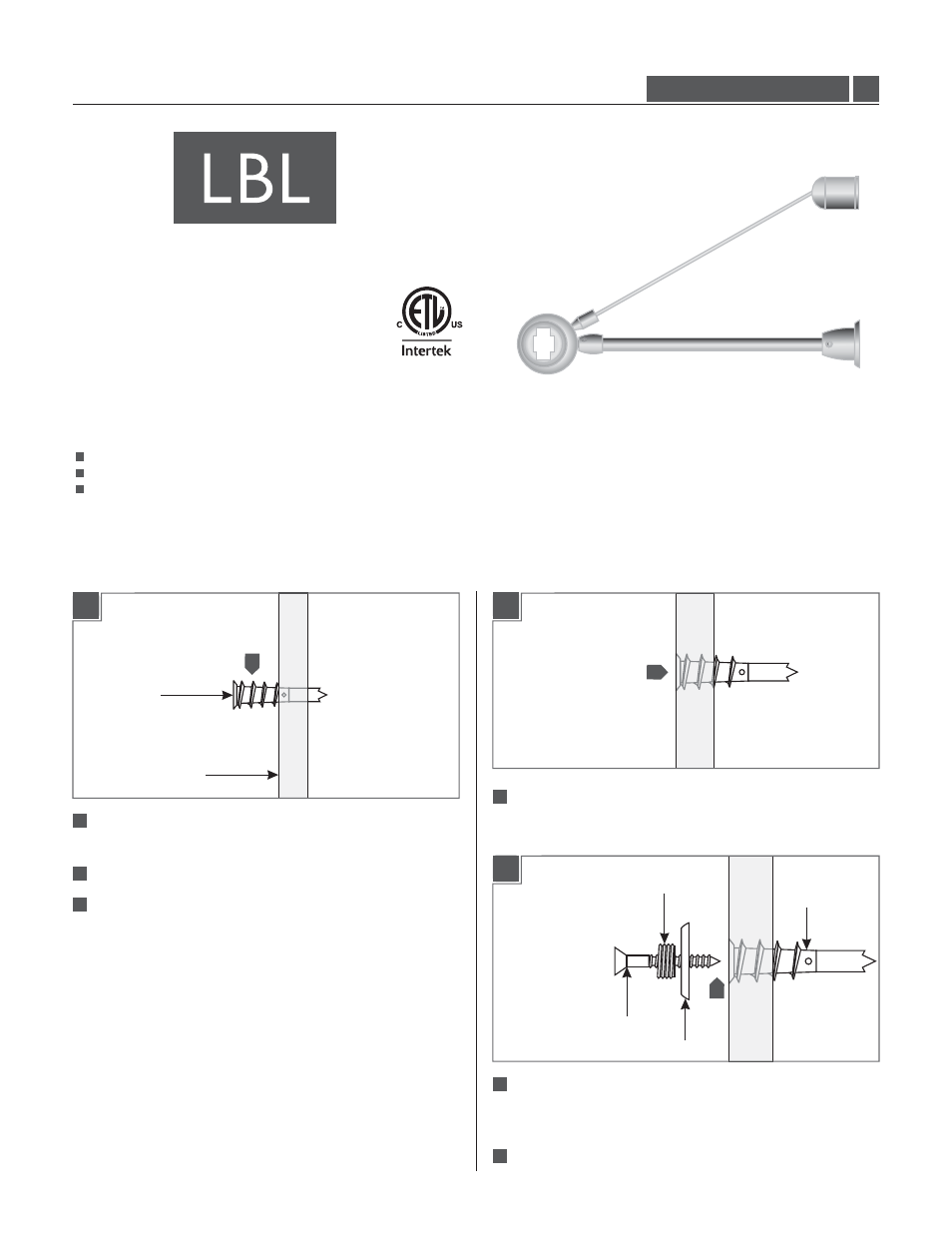

Install the Telescoping Rigid Standoffs
ANCHOR
G
P
I
:
ENERAL
RODUCT NFORMATION
This product is suitable for indoor dry locations only.
This product must be used with LBL Monorail system only.
This instruction is for the following models:
Monorail Support 2.6" - 4" (HANGER-ADJ-_-1WB)
Monorail Support 6" - 10" (HANGER-ADJ-_-2WB)
Monorail Support 12" - 24" (HANGER-ADJ-_-3WB)
Select a location on the wall where the Monorail is to be
mounted.
Mark the standoff points on the wall.
Tap the anchor at the marked point up to the threaded portion
with a hammer.
Screw the anchor in the rest of the way with a Phillips
screwdriver.
Insert the #8 screw into the threaded nipple and washer.
Tighten the #8 screw completely into the anchor to secure the
washer and threaded nipple in place.
Repeat step 1 through 5 for the remaining standoffs.
ANCHOR
WASHER
#8 SCREW
THREADED NIPPLE
WALL
Monorail
1A
1
1
4
3
1B
2
3
1C
5
4
6
4
5
