Page 2

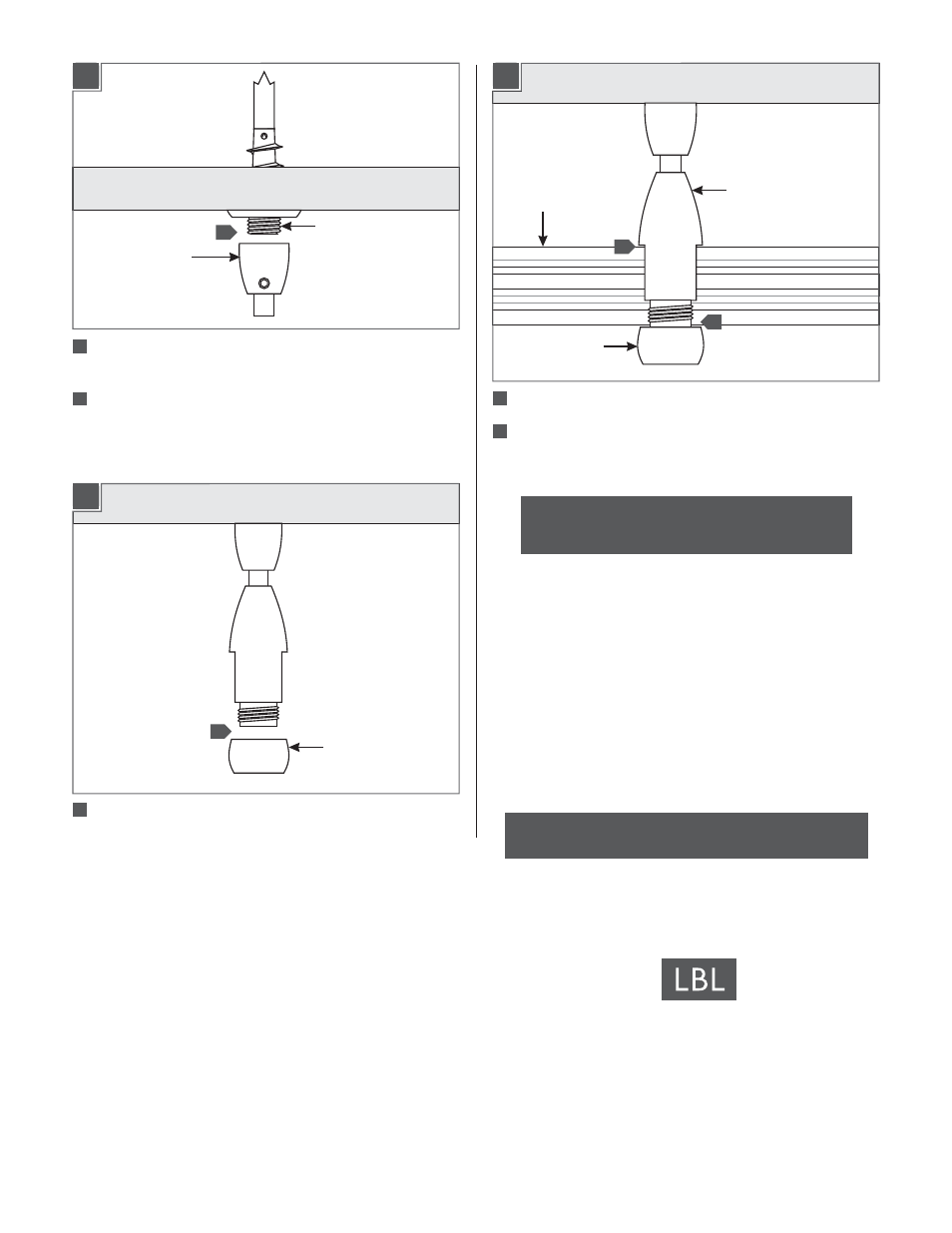

Remove the housing cap on all standoffs.
HOUSING CAP
Place a section of the Monorail into standoff housings.
While supporting the Monorail, tighten the housing caps
completely to the standoff housings to secure the
Monorail in place.
NOTE:
In case of cross threading, loosen the cap and
repeat step 3.
STANDOFF HOUSING
HOUSING CAP
2
Screw the standoff support post completely to the threaded
nipple.
Repeat this step for the remaining standoffs.
SUPPORT POST
THREADED NIPPLE
Install the Monorail to Standoffs
MONORAIL
1D
2B
2A
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2013 LBL Lighting.All rights reserved.The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
SAVE THESE INSTRUCTIONS!
