LBL Lighting MO Adjustable Vertical Connector - Manual (Page 2)

2

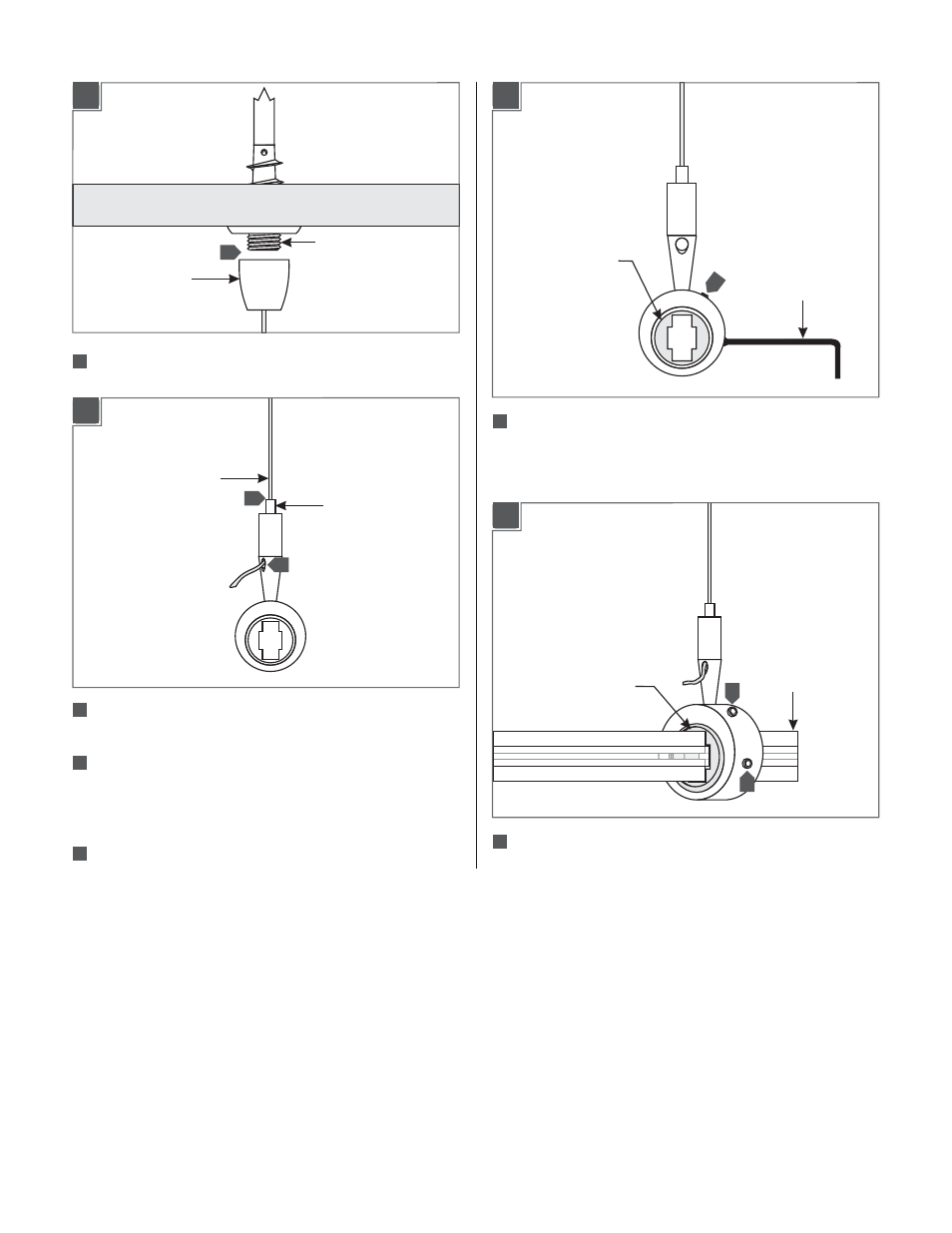

Screw the cable post completely to the threaded nipple.
CABLE POST
THREADED NIPPLE
Feed the aircraft cable through the cable grip by pushing the
tab down.
Pull the aircraft cable out through the side hole on the post.
Adjust the standoff height by moving the standoff height by
moving the standoff up or down. When desired height is
achieved release the cable grip tab to lock the standoff in place.
Repeat steps 8 through 10 for the remaining standoffs.
AIRCRAFT CABLE
CABLE GRIP TAB
Insert the Monorail through the plastic insulator.
Install the Monorail
For all standoffs, slightly loosen the two (Do Not Remove)
M3 set screws on the side of the housing with the 1.5MM Allen
wrench to ease inserting the Monorail.
PLASTIC
INSULATOR
1.5MM ALLEN
WRENCH
MONORAIL PLASTIC INSULATOR
1A
8
9
10
11
1D
1A 1E
9
9
8
1A
1
2A
2
1A 2B
2
2
1
