2

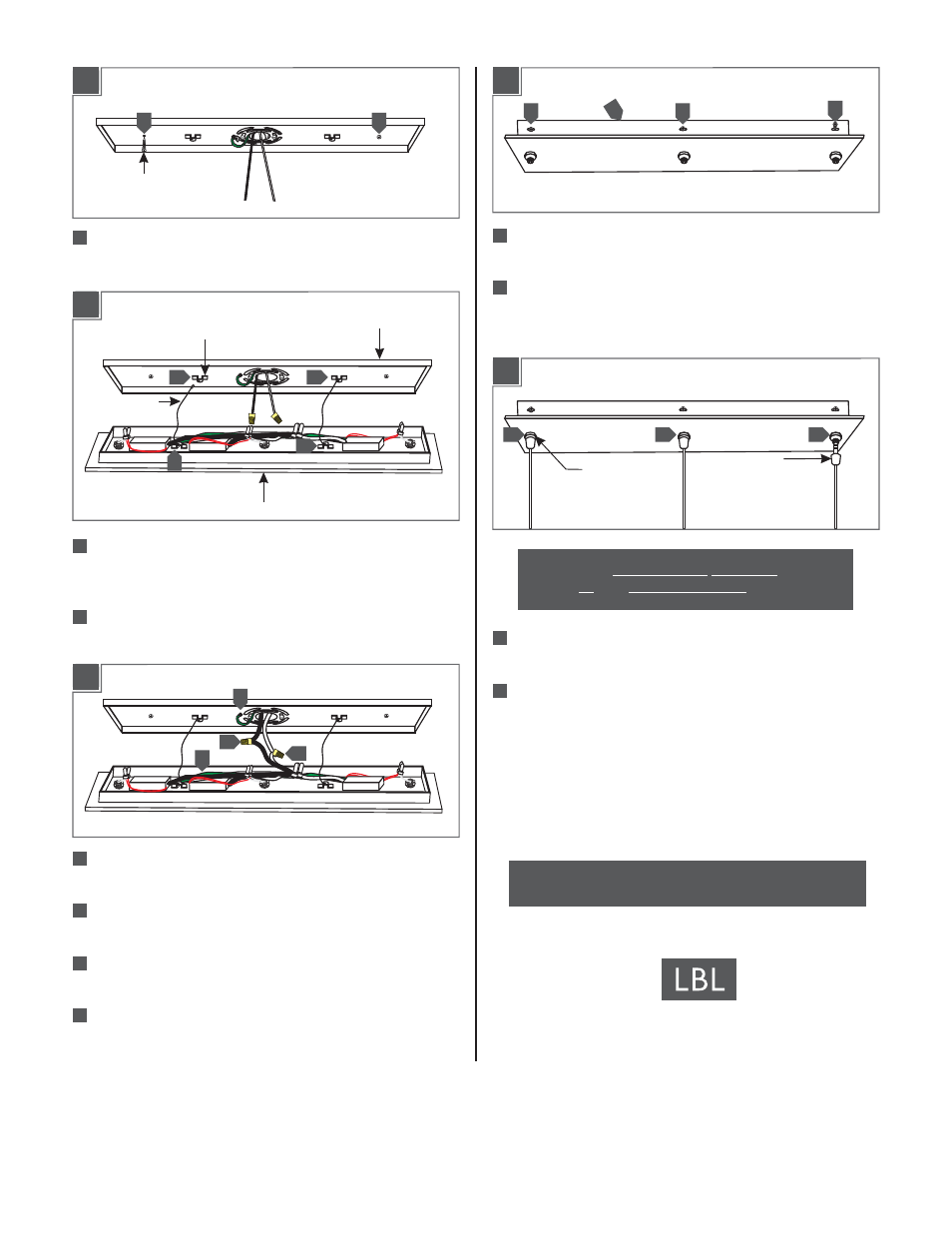

Secure the mounting plate to the anchors with the provided
#8 screws.
#8 SCREW
SAFETY CABLE
Insert one end of the safety cable into the mounting plate
safety bracket and insert the other end into the housing safety
bracket.
Repeat step 9 for the other safety cable.
SAFETY BRACKET
HOUSING
MOUNTING PLATE
FUSION
JACK PORT
FIXTURE
FUSION
JACK
Screw each fixture Fusion Jack completely into the Fusion Jack
port.
Turn the power on.
SAVE THESE INSTRUCTIONS!
Make sure the mounting plate is grounded in accordance with
local electrical codes.
Connect the housing white wire to the neutral power line wire
with a wire nut.
Connect the housing black wire to the hot power line wire
with a wire nut.
Place all wires and wire nut connections properly inside
the housing.
CAUTION:
load per
RISK OF FIRE. Maximum
port is
watt.
60
Do Not Overload!
Slide the housing onto the mounting plate and line up the
housing holes with the mounting plate holes.
Replace and tighten the six #8-32 screws to secure the
housing in place.
1E
1H
1F
1I
1G
