LBL Lighting 2-Circuit MO Direct Feed Canopy - Manual (Page 2)

2

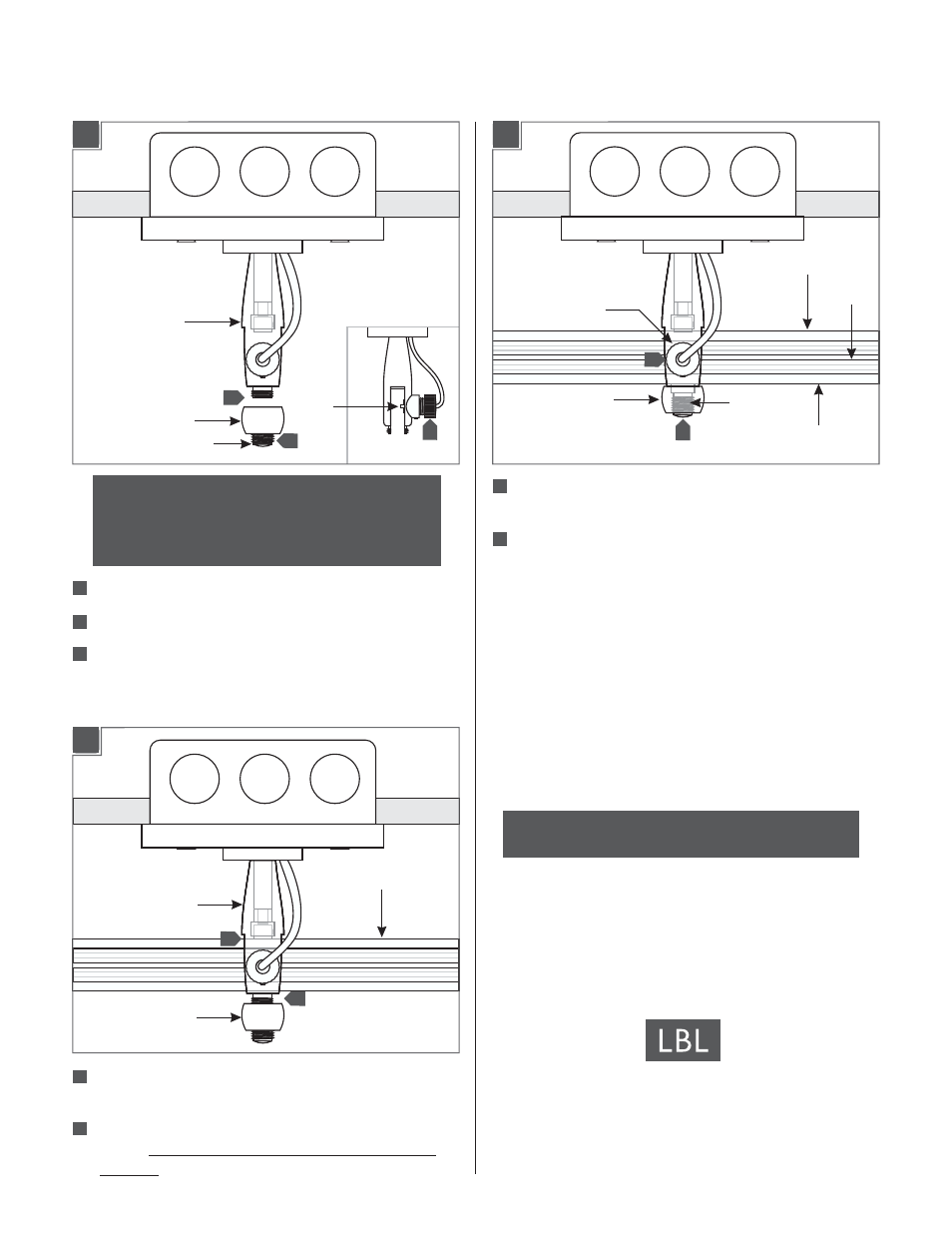

Install the 2-Circuit Monorail to the
Power Feed Canopy
SCREW
POWER FEED CAP
POWER FEED
HOUSING
POWER FEED CAP
2-CIRCUIT MONORAIL
POWER FEED
HOUSING
MIDDLE
CONTACT
Remove the power feed cap from the power feed housing.
Completely back out the screw on the power feed cap.
Loosen the knurled cap on the power (Do Not Remove)
feed housing and pull the middle contact wire slightly out so
that the middle contact is not exposed in power feed housing.
NOTE: The standoffs should be installed to support the
2-Circuit Monorail while connecting 2-Circuit Monorail to
the power feed canopy. Refer to the instructions provided
with the standoffs.
Place a 2-Circuit Monorail section into the standoffs and
power feed housings.
Screw the power feed cap completely to the power feed
housing. Make sure that the power feed cap is not cross
threaded.
Tighten the screw on the power feed cap for proper power
connection.
Tighten the knurled cap for proper power connection.
POWER FEED CAP
SCREW
KNURLED CAP
HOT 1
HOT 2
COM
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved.The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
SAVE THESE INSTRUCTIONS!
A Generation Brands Company
1
1A 2A
2
1
2
3
7
6 3
4
5
1A 2B
4
5
6
1A 2C
7
