LBL Lighting Visir 20 - Manual

1

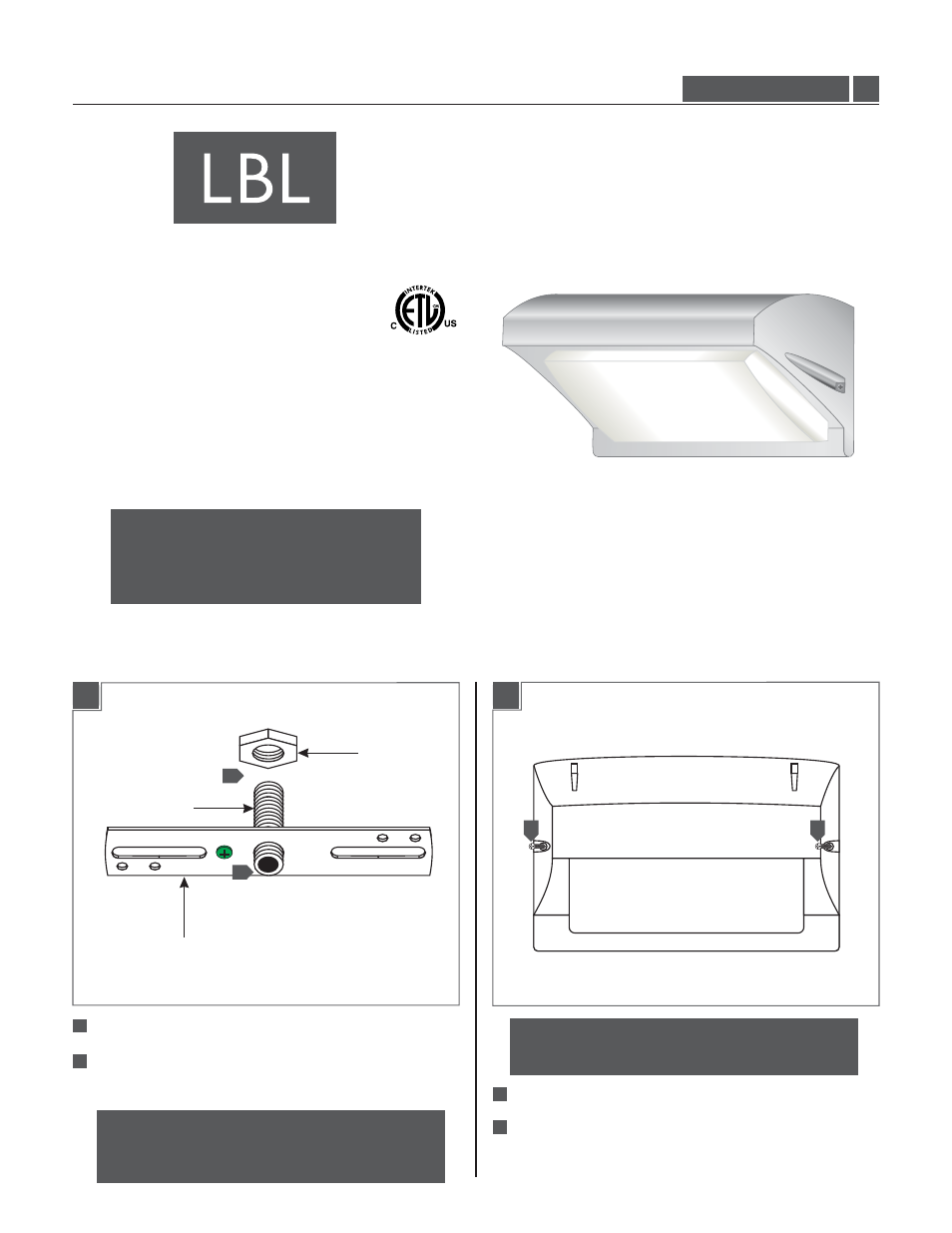

Installation Instructions for
Visir 20
980VISIR20O
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
Assemble the Crossbar
GENERAL PRODUCT INFORMATION:
This product is suitable for wet locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product can be dimmed with a standard incandescent dimmer.
1
1.0
Outdoor
2
8529, 8529, 8530
Screw the nipple into the crossbar.
Secure the nipple in place with one of the provided
nuts.
1
2
1A
NOTE: Some adjustment to the nipple’s placement
on the crossbar may have to be made depending on
the mounting situation.
1
2
2A
Remove the two screws from the front of the fixture.
Gently lift the shade assembly off of the fixture base.
1
2
CAUTION: The glass diffuser is loose inside the
shade, remove the shade with caution.
Install the Fixture
NIPPLE
CROSSBAR
NUT
1 1
