LBL Lighting Futura User Manual
Futura, Install the fixture
1

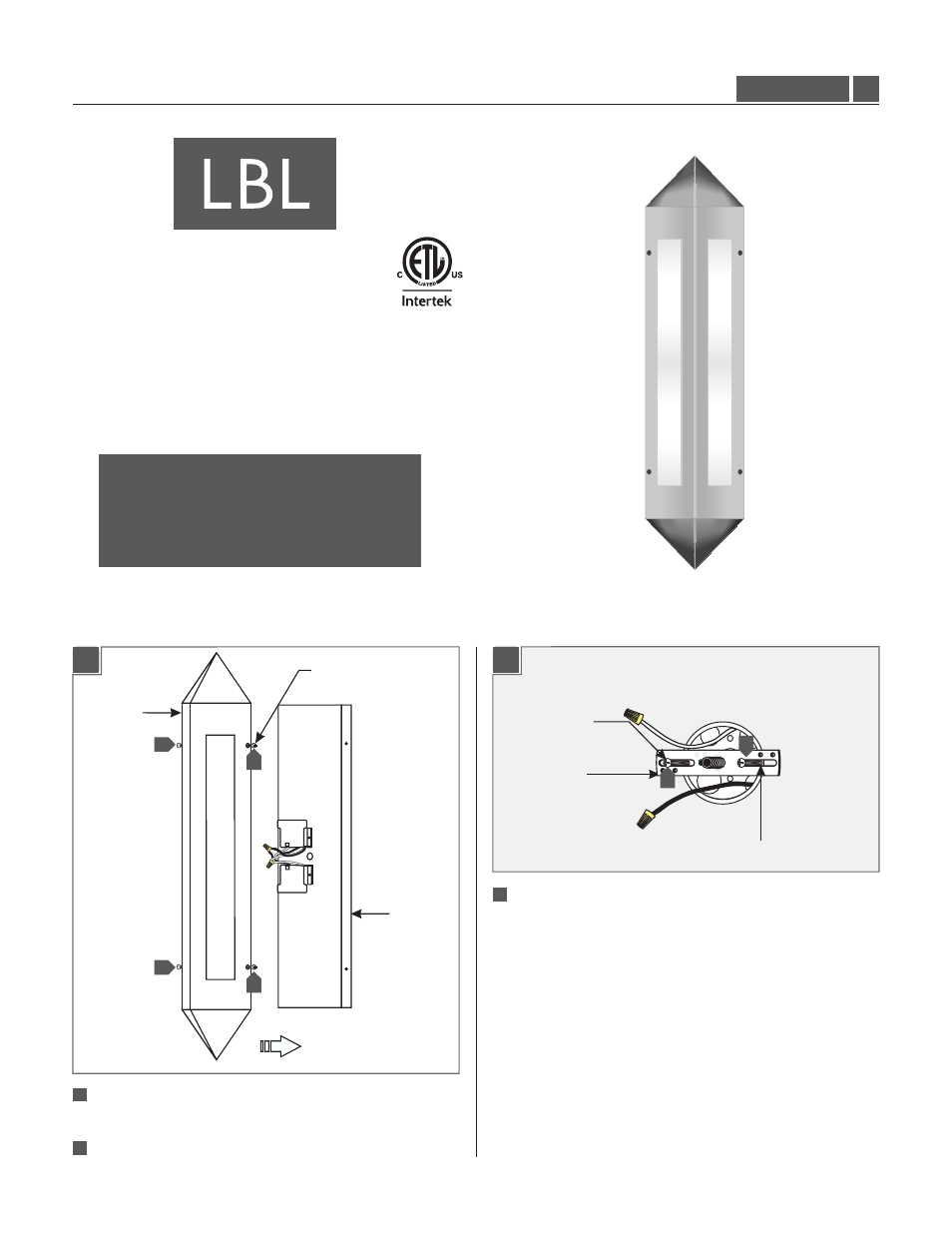

Installation Instructions for
Futura
1.2
JW940_240
980FUTURW
G
P
I
:
ENERAL
RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for indoor dry locations only.
This product can be dimmed with a standard incandescent dimmer.
Unscrew and remove the four #8-32 Philip screws from the
metal shade sides.
Remove the mounting plate.
Install the Fixture
#8-32 PHILIPS SCREW
METAL
SHADE
MOUNTING
PLATE
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
CROSSBAR
ASSEMBLY
ELECTRICAL BOX HOLE
#8-32 SCREW
1A
1B
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
Wall
1
2
3
3
1
3
1
1
1
