LBL Lighting Upstate 18 User Manual
Upstate 18 outdoor, Install the fixture
1
Installation Instructions for
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.

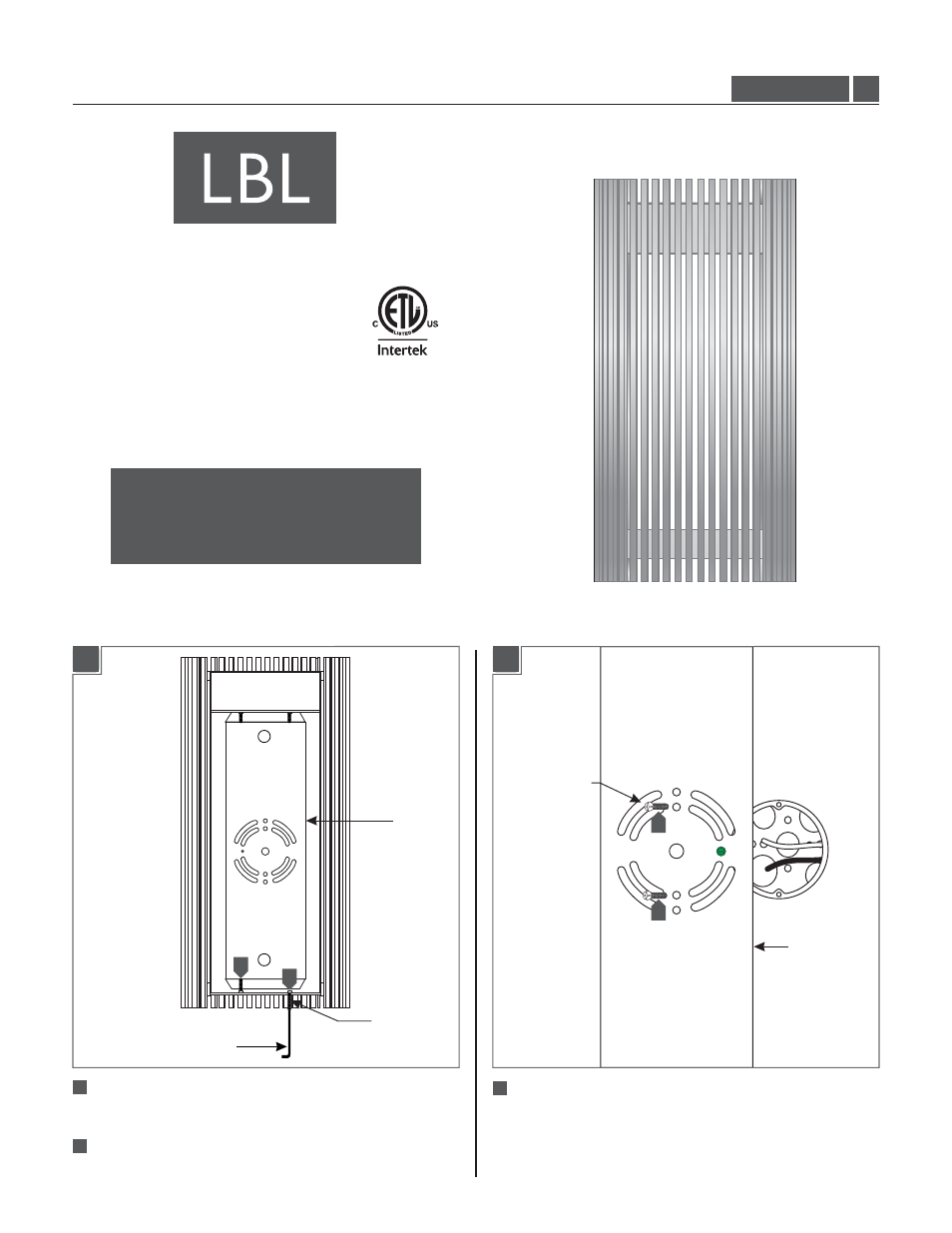

Install the Fixture
G
P
I
:
ENERAL
RODUCT NFORMATION
This product is suitable for wet locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
With the Allen wrench provided, back out (do not fully
remove) the set screws at the bottom of the fixture.
Remove the mounting plate from the back of the
fixture.
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
MOUNTING
PLATE
#8-32 SCREW
1
3
Outdoor
1A
1B
2
3
3
MOUNTING
PLATE
ALLEN WRENCH
Upstate 18 Outdoor
980UPSTA18O
1.0
OD737_LED
1
1
SET SCREW
