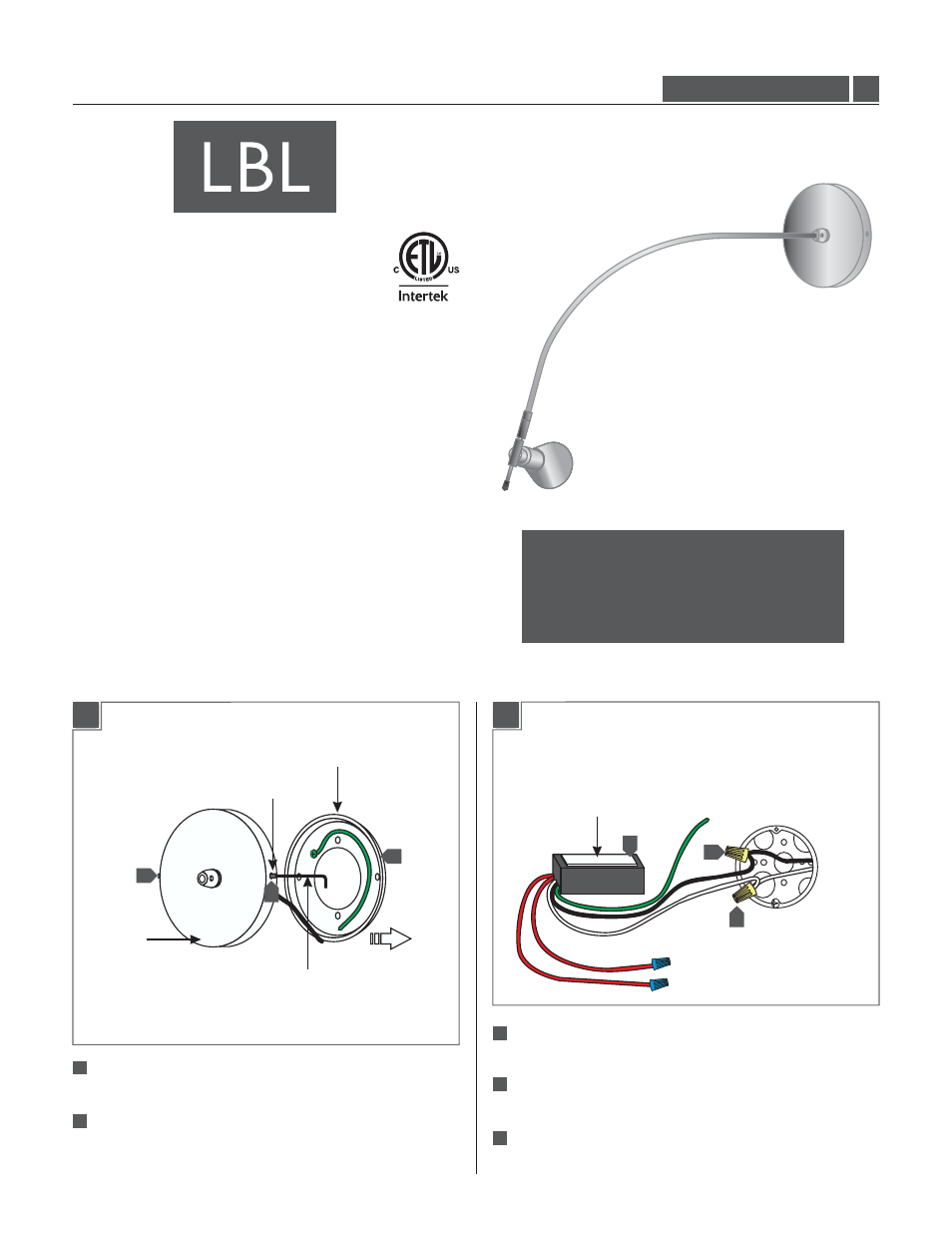

Installation Instructions for
Shield Galleria
1.2
GHB295_1A50MPT
980GALLSW
G
P
I
:
ENERAL
RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for indoor dry locations only.
This product can be dimmed with a standard incandescent dimmer.
Minimum volume of the electrical box must be 6 cubic inches (98
cubic centimeter).
This instruction shows a typical installation.
Install the Fixture
M3 SET SCREW
1.5MM ALLEN WRENCH
BACKPLATE
CANOPY
Loosen
the two M3 set screws on side of
(Do Not Remove)
the canopy with the 1.5MM Allen wrench provided.
Remove the backplate.
Connect the transformer white wire to the neutral power line
wire with a wire nut.
Connect the transformer black wire to the hot power line
wire with a wire nut.
Place the transformer inside the electrical box. Use the
attached sticky pad to secure it against the electrical box.
STICKY PAD
1A
1B
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
Wall
1
2
1
2
3
4
5
5
4
3
1
