Install the lamp & shade – LBL Lighting Iris WHA User Manual
Page 2

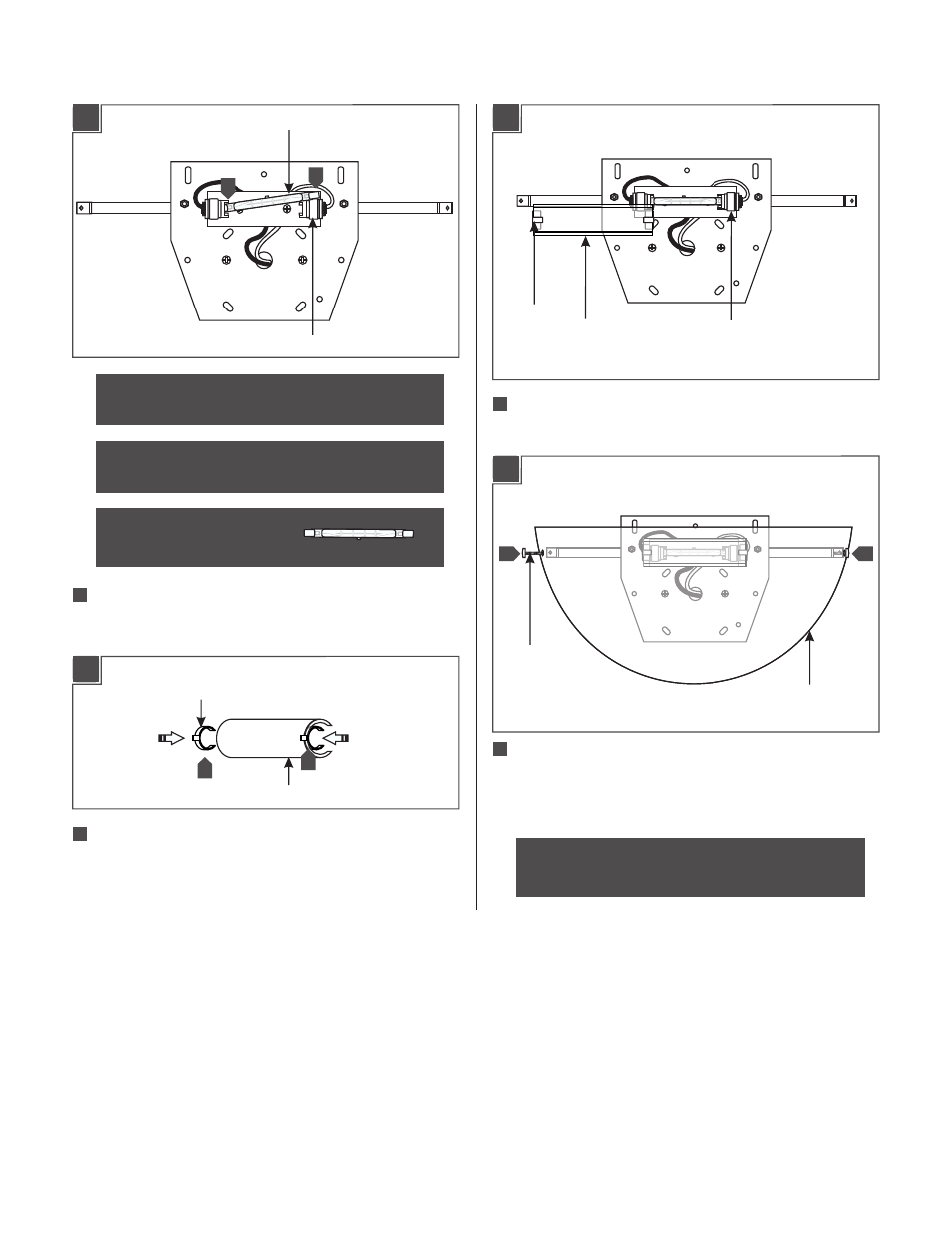

Install the Lamp & Shade
Place the glass shade onto the mounting plate. Align the glass
shade holes with the mounting plate holes. Tighten the thumb
screws to secure the glass shade in place.
2
THUMB
SCREW
GLASS
SHADE
Place one end of the lamp onto one socket pin, while pushing
the lamp against that socket pin slide the other end onto the
other socket pin.
NOTE:
Use only your fingers and a soft cloth to install
the lamp.
Use
MAX
100
Watt Type
T3-78mm, Double End Halogen Lamp.
LAMP SHIELD CLIP
LAMP SHIELD
Snap the lamp shield clips onto the lamp shield ends.
LAMP
SOCKET
Install the lamp shield, by snapping the lamp shield clips onto
the sockets.
LAMP
SHIELD
CLIP
LAMP
SHIELD
SOCKET
NOTE:
To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
NOTE:
Do not over tighten the thumb screw which may
cause the glass shade to break.
1
2A
1
2
2B
2
2
1
3
2C
4
2D
4
4
