Installation Instructions for
Iris (Halogen Version)
1.3
HWAP11_SC2N100
980IRISWHA
GENERAL PRODUCT INFORMATION:
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
#8-32 SCREW

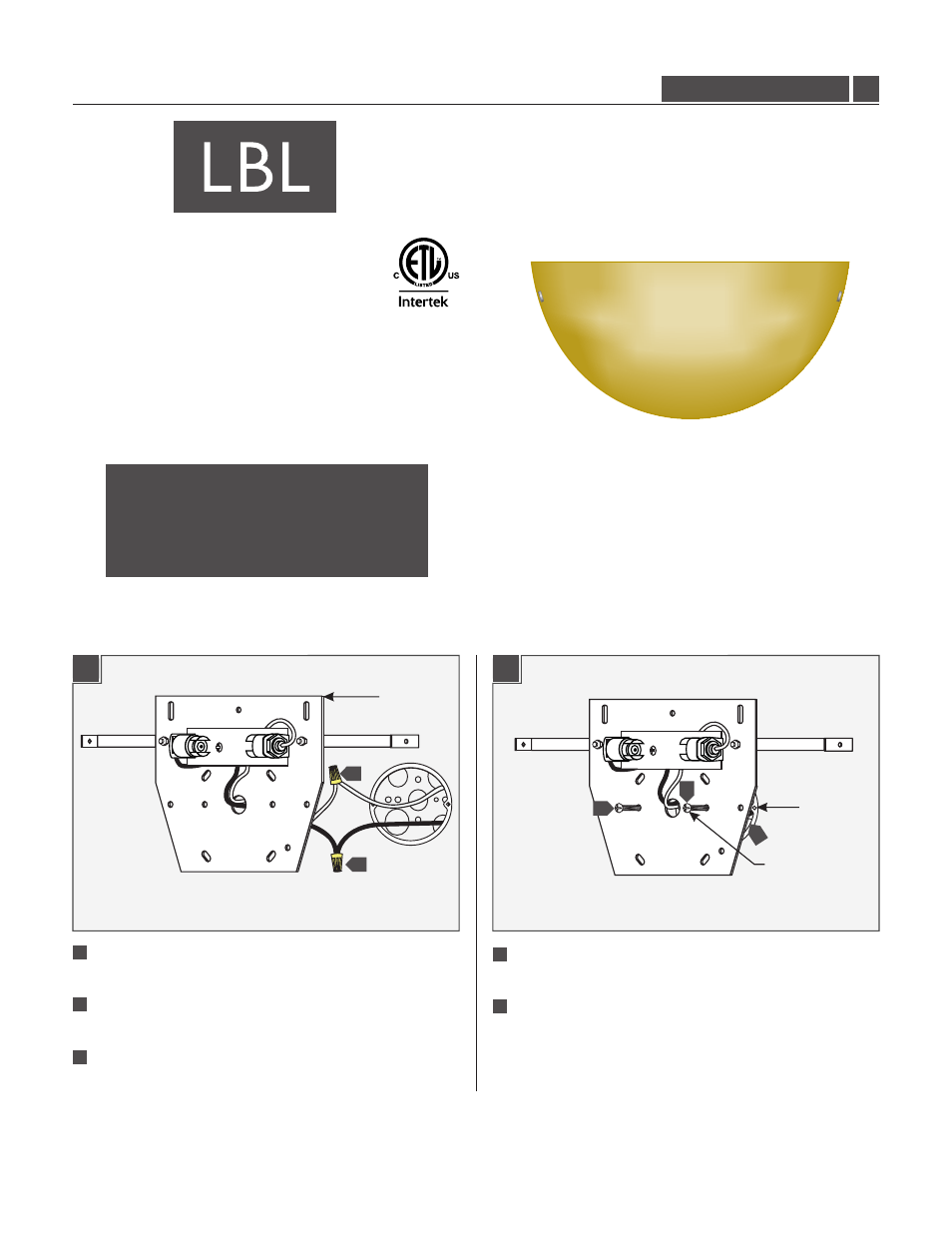

Install the Fixture
Place all wires and wire nut connections properly inside the
electrical box.
Align the mounting plate holes with electrical box holes and
tighten with two #8-32 screws to secure the fixture in place.
In accordance with local electrical codes, make sure that the
mounting plate is grounded.
Connect the fixture white wire to the neutral power line wire
with a wire nut.
Connect the fixture black wire to the hot power line wire with
a wire nut.
1
ELECTRICAL
BOX HOLE
5
MOUNTING
PLATE
5
5
4
4
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
Wall
1
2
5
4
5
4
3
5
3
2
