LBL Lighting Eclipse W User Manual

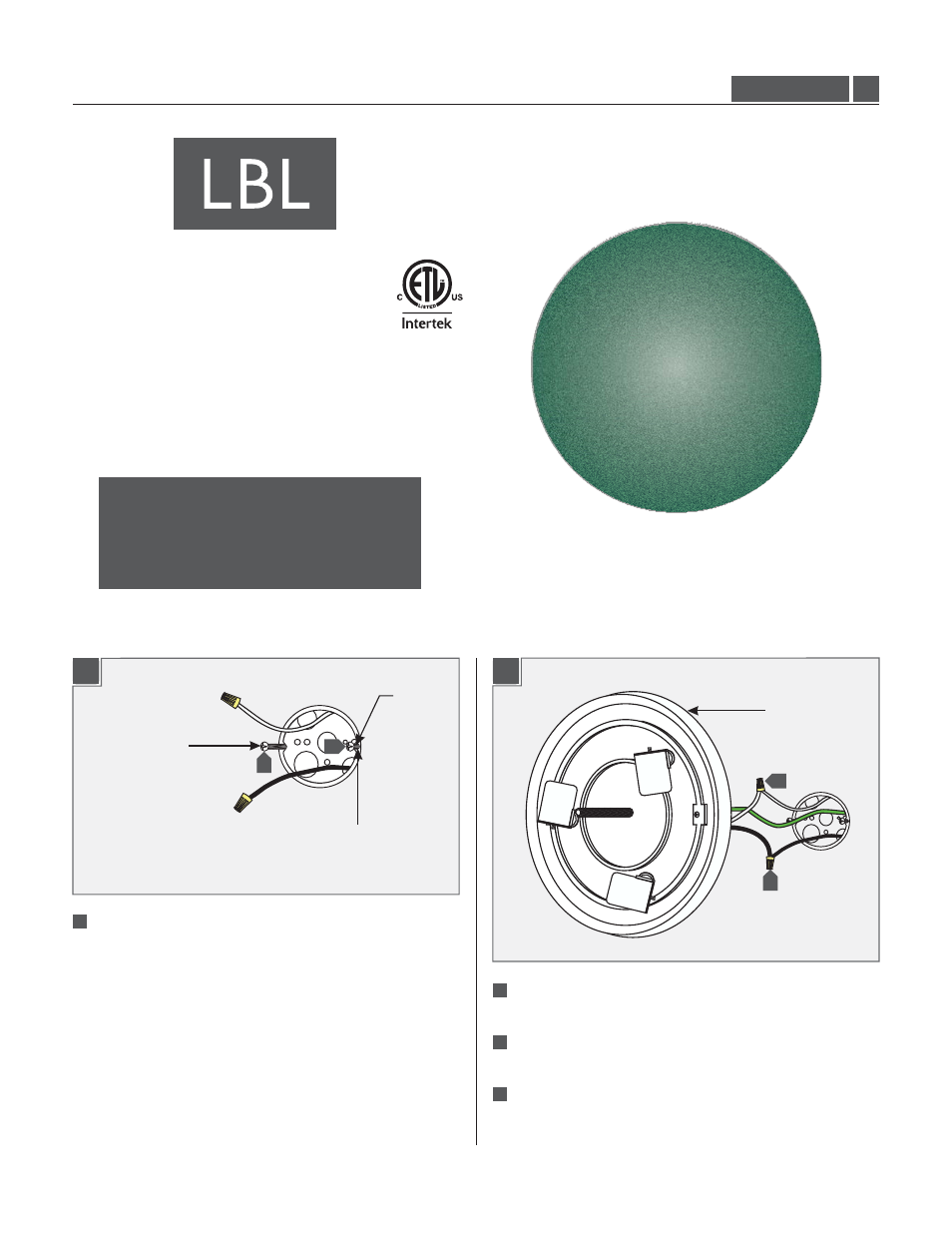

Eclipse, Install the fixture

1
Installation Instructions for
Eclipse
1.2
JW612_360
980ECLIPW
G
P
I
:
ENERAL
RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
Install the Fixture
Thread
the two provided #8-32 screws
(Not Completely)
into the electrical box holes, leaving 1/8" of them exposed.
ELECTRICAL BOX HOLE
#8-32 SCREW
1/8"
In accordance with local electrical codes, make sure that the
fixture is grounded.
Connect the fixture white wire to the neutral power line wire
with a wire nut.
Connect the fixture black wire to the hot power line wire with
a wire nut.
MOUNTING
PLATE
1A
1B
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
