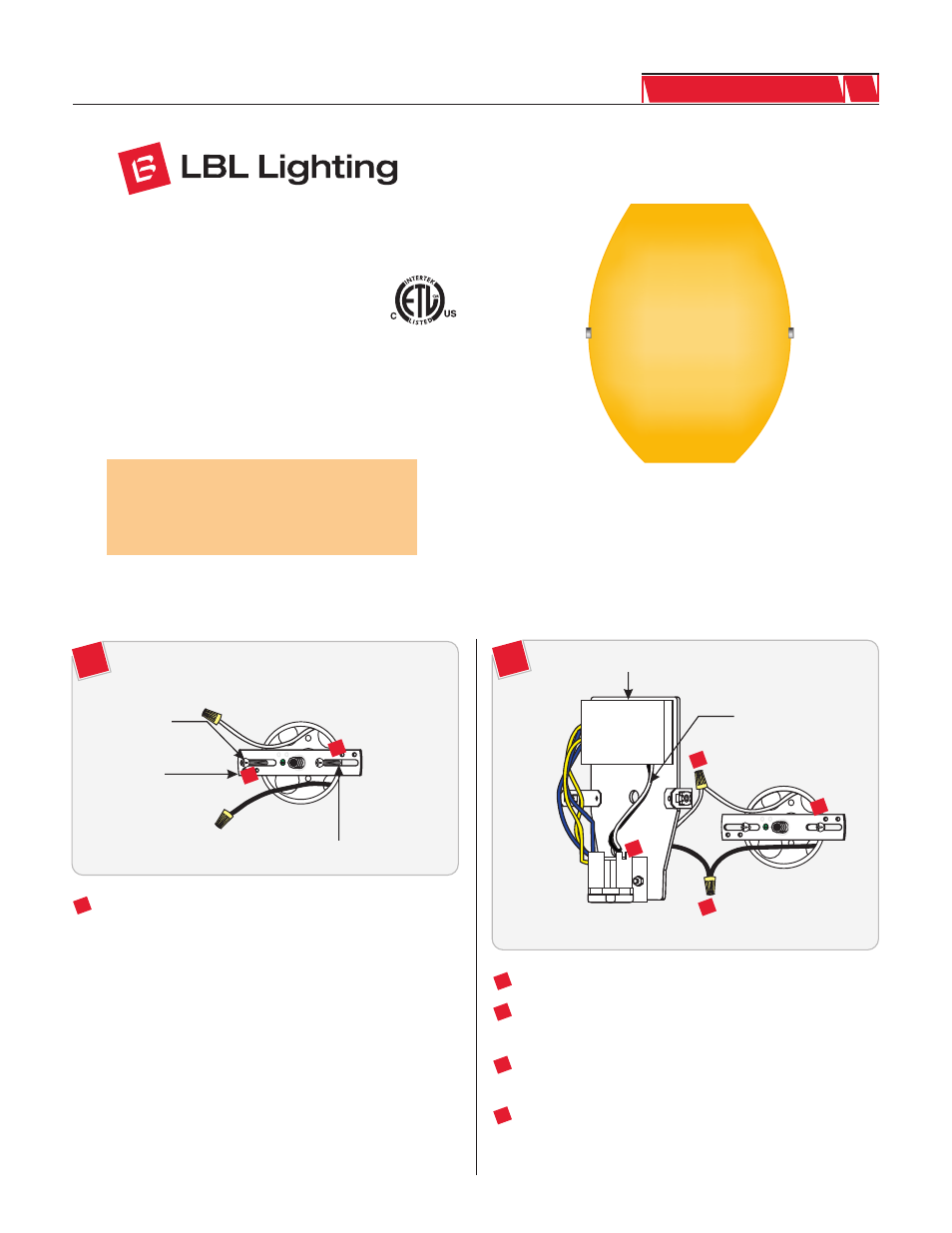

Installation Instructions for
Tulip Compact Fluorescent Wall
1.4
PW3783_13Q_
980TULIPWCF
Wall Sconces
GENERAL PRODUCT INFORMATION:
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for indoor dry locations only.
Install the Fixture
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
1A
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
1
CROSSBAR
ASSEMBLY
ELECTRICAL BOX HOLE
#8-32 SCREW
1B
Feed the fixture wires through the mounting plate side hole.
Make sure that the crossbar is grounded in accordance with
local electrical codes.
Connect the fixture white wire to the neutral power line wire
with a wire nut.
Connect the fixture black wire to the hot power line wire with
a wire nut.
2
3
5
4
FIXTURE WIRES
3
5
4
1
1
1
MOUNTING PLATE
2
