2A

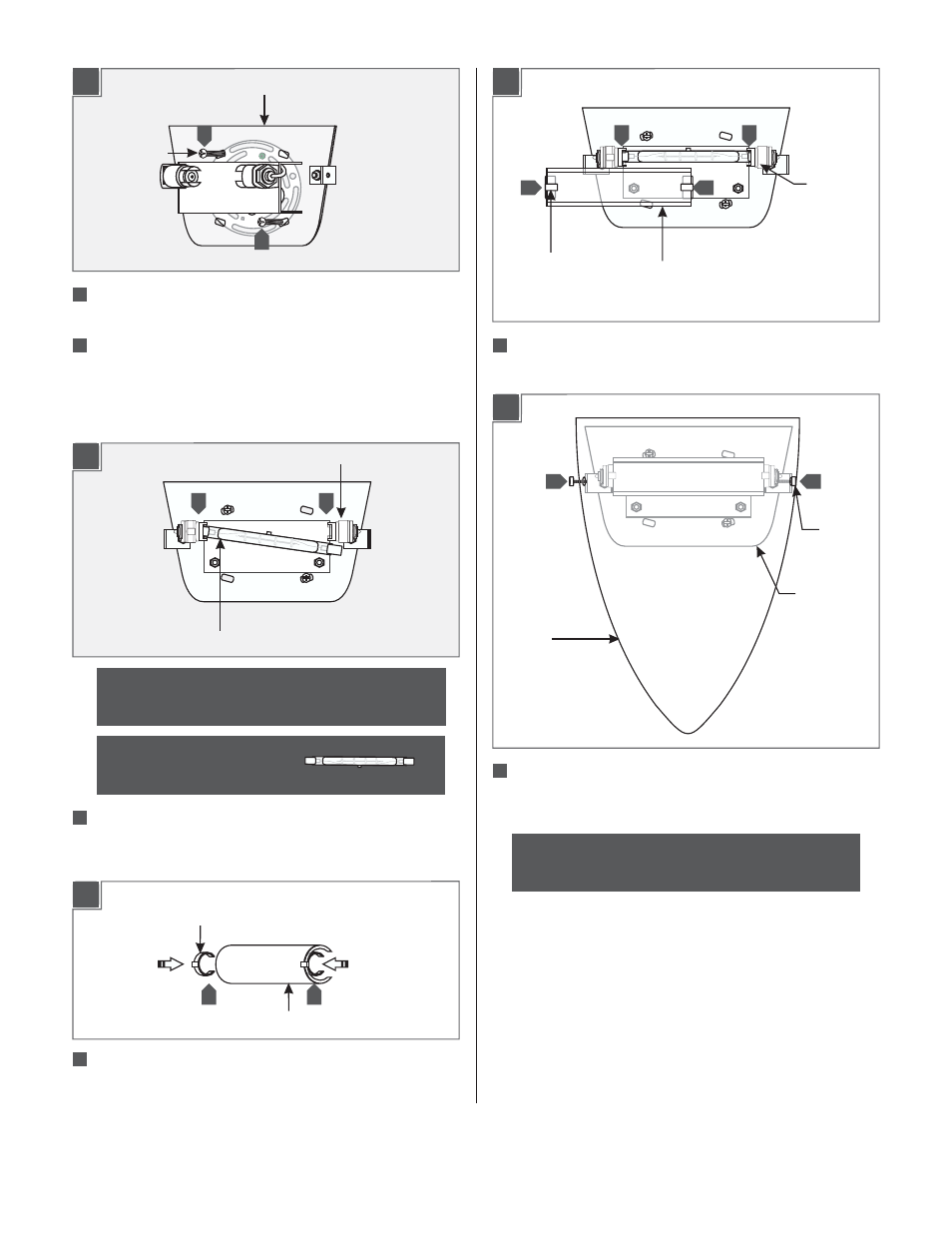

Place all wires and wire nut connections properly inside the
electrical box.
Mount the mounting plate to the universal crossbar holes with
the two #8-32 screws provided.
2
MOUNTING PLATE
#8-32 SCREW
4
Install the Lamp & Shade
SOCKET
4
Place one end of the lamp onto one socket pin, while pushing
the lamp against that socket pin slide the other end onto the
other socket pin.
NOTE:
Use only your fingers and a soft cloth to install
the lamp.
Use
Watt Type
MAX 100
T3-78mm, Double End Halogen Lamp.
LAMP
LAMP SHIELD CLIP
LAMP SHIELD
Snap the lamp shield clips onto the lamp shield ends.
Install the lamp shield, by snapping the lamp shield clips onto
the sockets.
4
4
SOCKET
LAMP SHIELD CLIP
LAMP SHIELD
4
4
GLASS
SHADE
Place the glass shade onto the mounting plate. Align the glass
shade holes with the mounting plate holes. Tighten the thumb
screws to secure the glass shade in place.
THUMB
SCREW
MOUNTING
PLATE
NOTE:
Do not over tighten the thumb screws which may
cause the glass shade to break.
