LBL Lighting Derby WCF - Manual

1

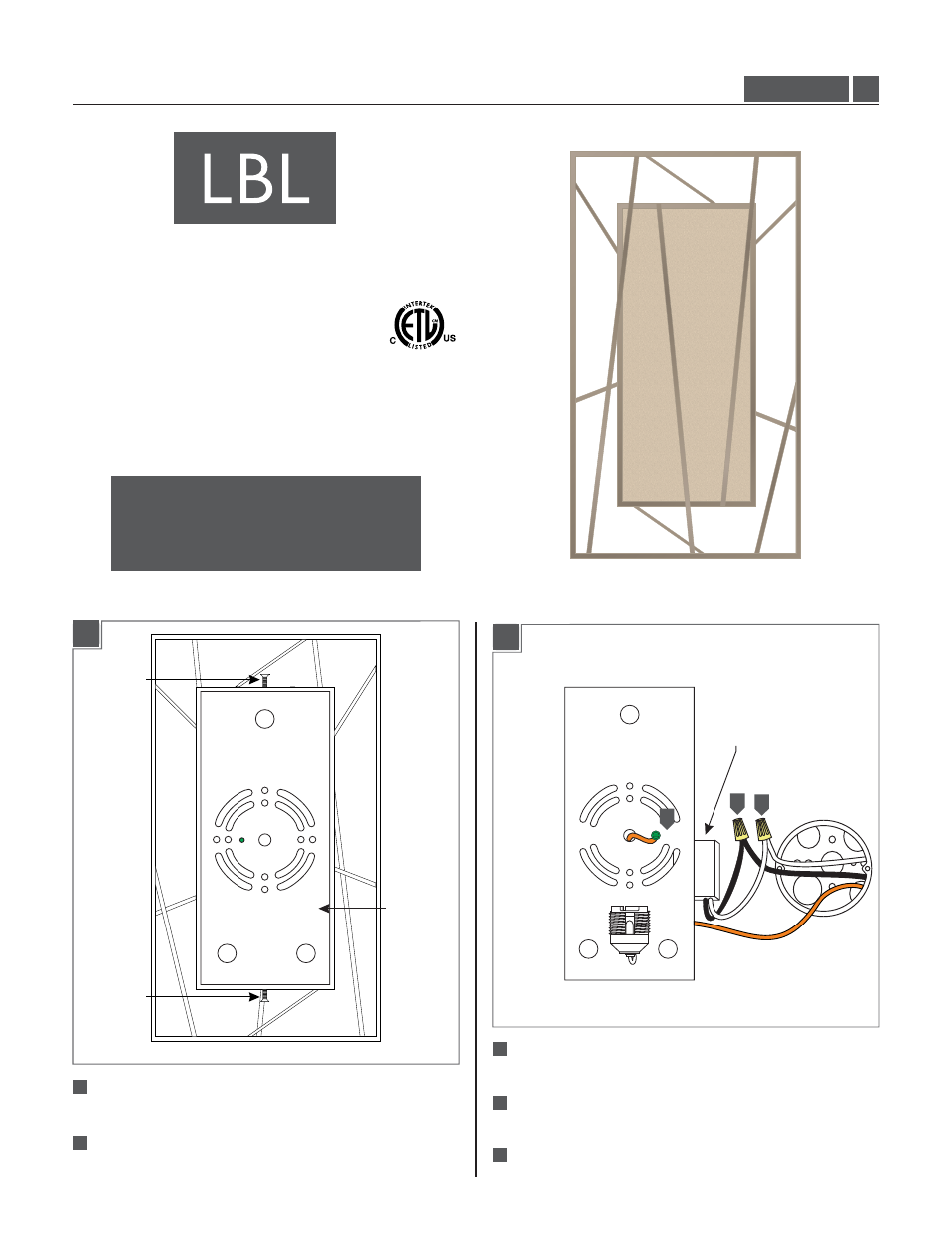

Installation Instructions for
Derby Wall (Compact Fluorescent)
980DERBYWCF
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
Install the Fixture
GENERAL PRODUCT INFORMATION:
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This instruction shows a typical instruction.
Remove the two mounting plate screws located on top
and the bottom of the fixture.
Remove the mounting plate.
1
1.0
WALL
1A
2
PW666_CF
1B
6 3
6 4
Connect the mounting plate ground wire to a suitable
ground in accordance to local electrical codes.
Connect the white ballast wire to the neutral power line
wire with a wire nut.
Connect the black ballast wire to the hot power line
wire with a wire nut. 6 5
5 4
BALLAST
MOUNTING
PLATE
SCREW
MOUNTING
PLATE
3
MOUNTING
PLATE
SCREW
