LBL Lighting Presidio W User Manual
Presidio, Install the fixture
1B

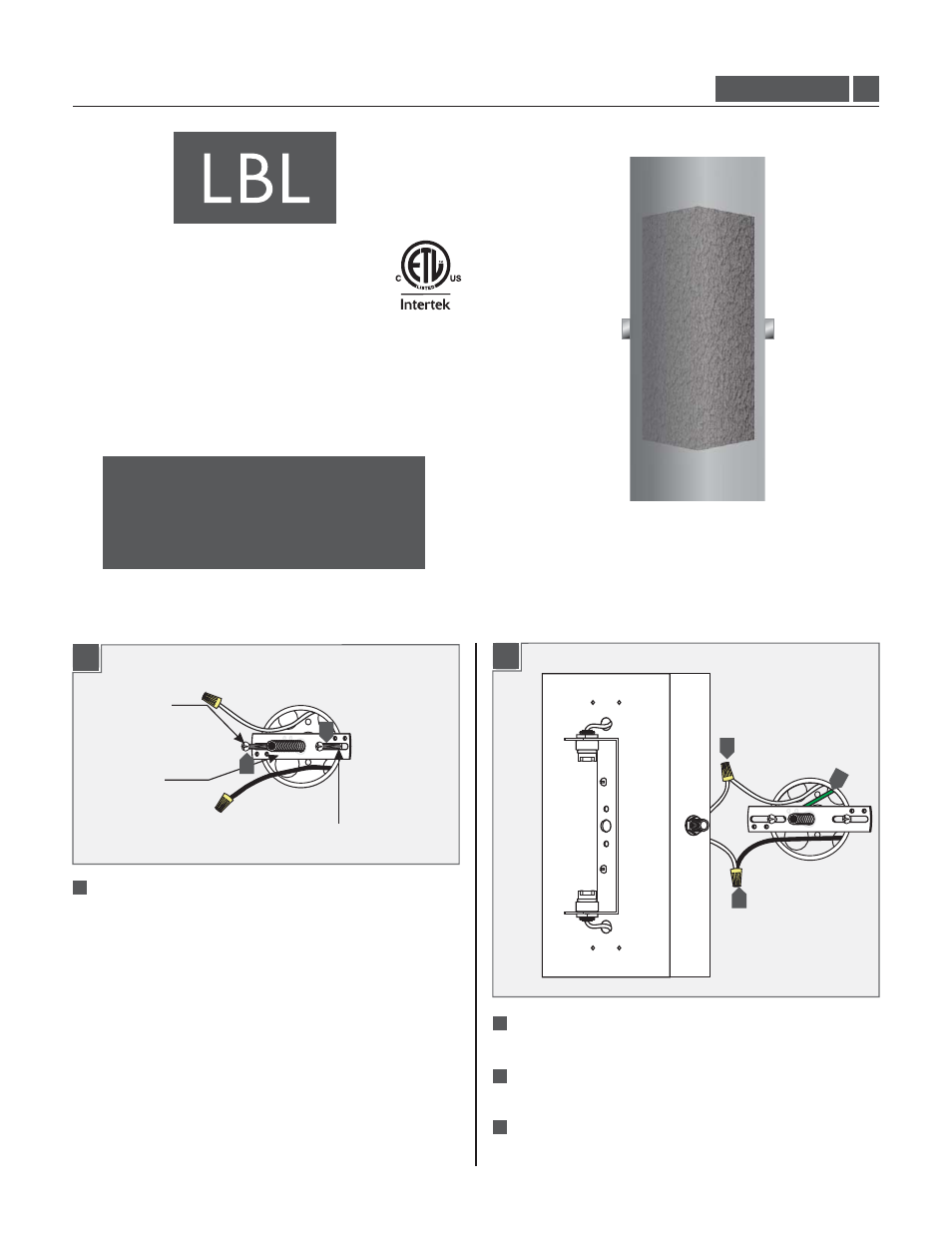

Installation Instructions for
Presidio
1.5
HW614_100_
980PRESIW
G
P
I
:
ENERAL
RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
Connect the crossbar to a suitable ground according to local
electrical codes.
Connect one fixture wire to the neutral power line wire with
a wire nut.
Connect the other fixture wire to the hot power line wire
with a wire nut.
1
Install the Fixture
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
Wall
4
2
3
4
3
2
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
CROSSBAR
ASSEMBLY
ELECTRICAL BOX HOLE
#8-32 SCREW
1
1A
1
1
