Installation Instructions for

Small Omni (LED)

1.0

LW559

980OMNISW-D

G

P

I

:

ENERAL

RODUCT NFORMATION

This product is suitable for damp locations.

This product can mount to either a 4" square electrical box with

round plaster ring or an octagon electrical box.

This product can be dimmed with a low-voltage electronic dimmer.

Power consumption is rated at 10 watts.

Install the Fixture

Connect the ground wire to a suitable ground in accordance

with local electrical codes.

Connect the white wire to the neutral power line wire.

Connect the black wire to the hot power line wire.

1

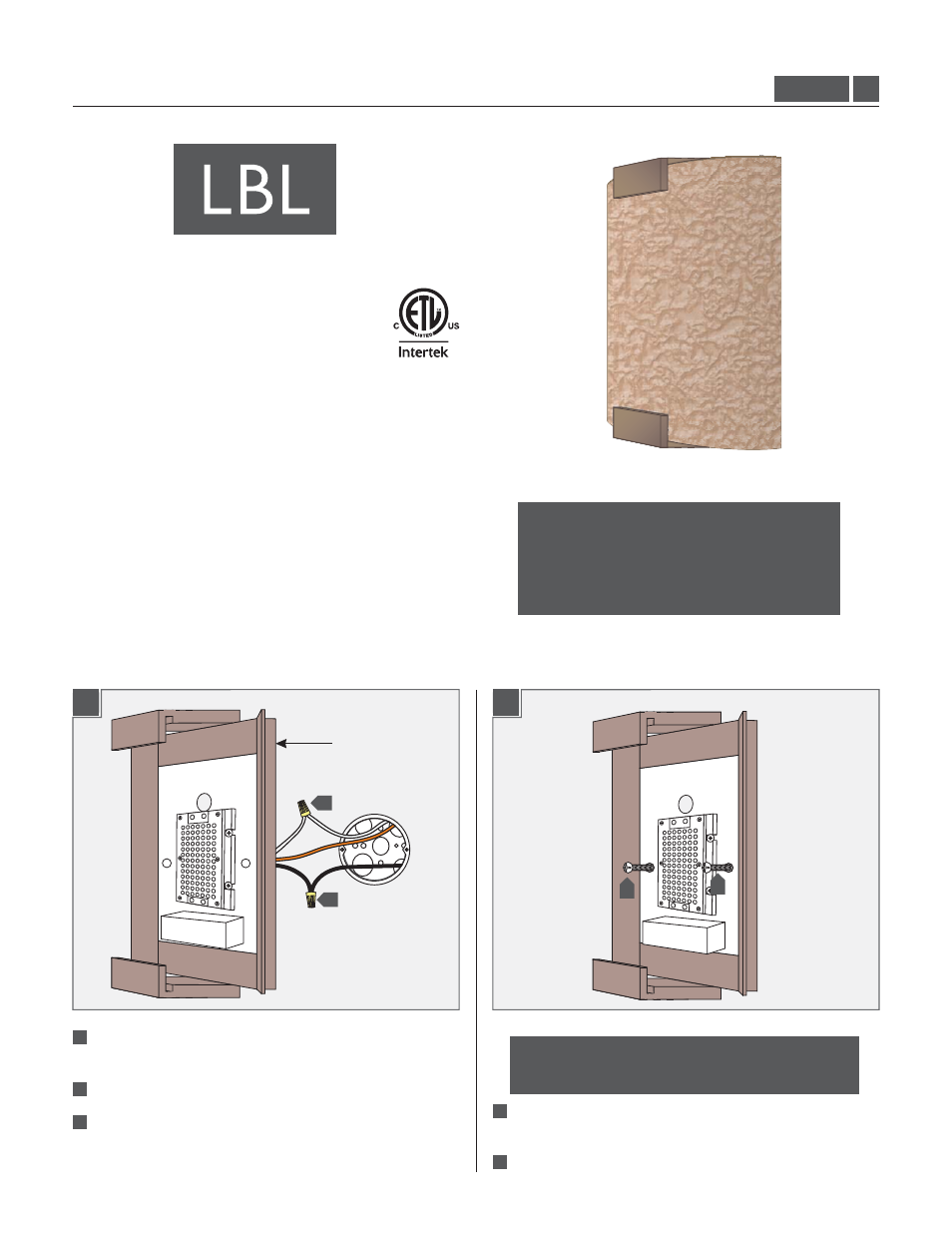

MOUNTING PLATE

Place all wires and wire nut connections properly inside the

electrical box.

Screw the backplate to the electrical box.

NOTE:

Use the universal round crossbar provided if the

electrical box holes do not line up with the backplate.

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

Wall

1

2

4

5

3

2

3

5

5
