2B

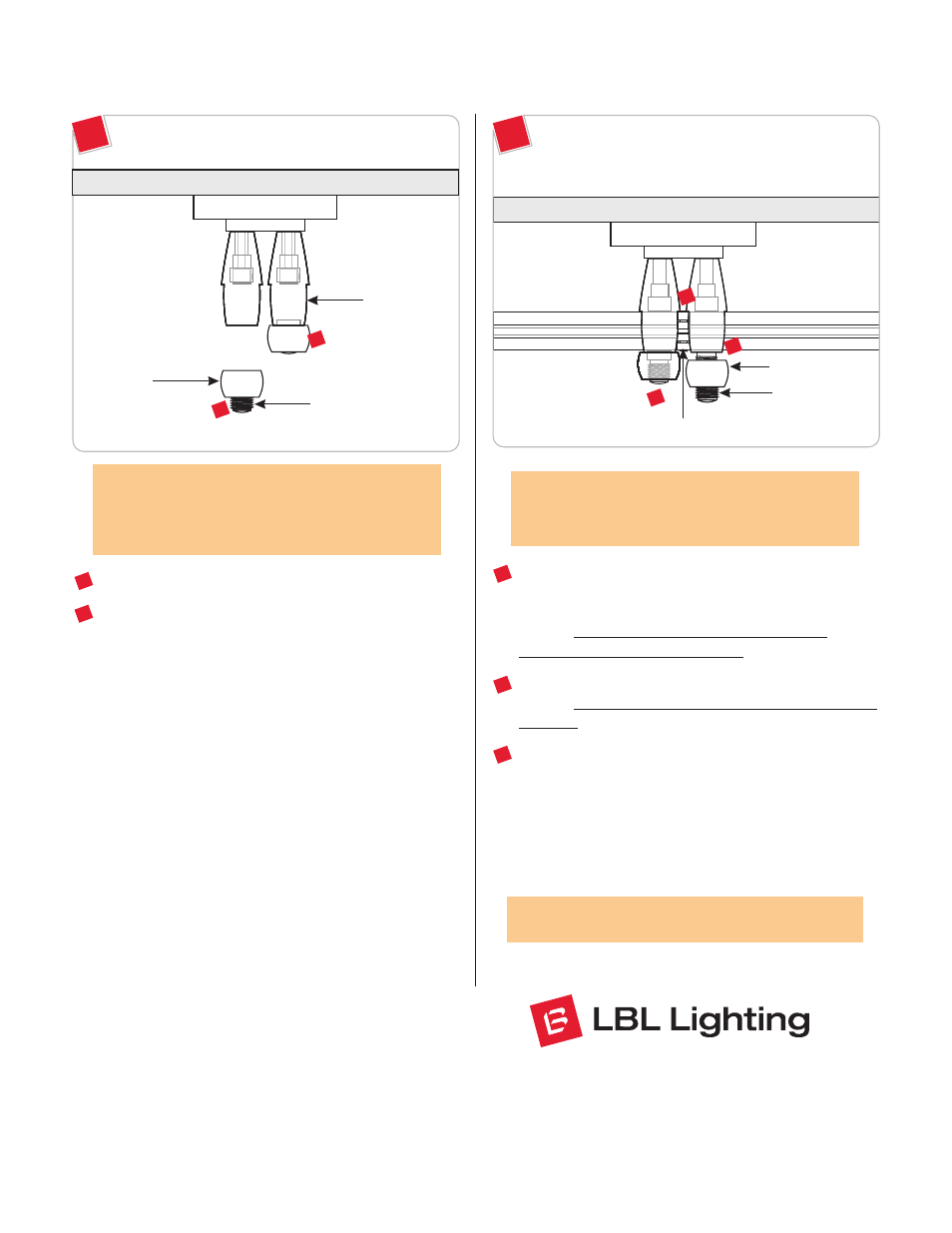

Remove the power feed caps from the power feed housings.
Completely back out the screw on the power feed caps.
NOTE: The standoffs should be installed to support the
Monorails while connecting Monorails to the power feed
canopy. Refer to the instruction provided with the
standoffs.
3
4
POWER FEED
HOUSING
SCREW
POWER
FEED CAP
2C
SCREW
POWER FEED CAP
Place the combined Monorail sections into the standoffs and
power feed housings so that the straight isolating connector
section is located in the middle of the two power feed
housings.
Screw the power feed caps completely to the power feed
housings.
Tighten the screw on the power feed caps for proper power
connection.
Make sure that the Monorail sections are
electrically isolated from each other.
Make sure that the power feed caps are not cross
threaded.
5
6
NOTE: It is recommended that two people install the
Monorail sections to the standoff and power feed
housings.
7
3
4
STRAIGHT ISOLATING CONNECTOR
5
6
7
