3
GLASS
CAP SCREW
KNURLED NUT
WHITE WASHER
CABLE CAP
CLEAR WASHER
AIRCRAFT CABLE

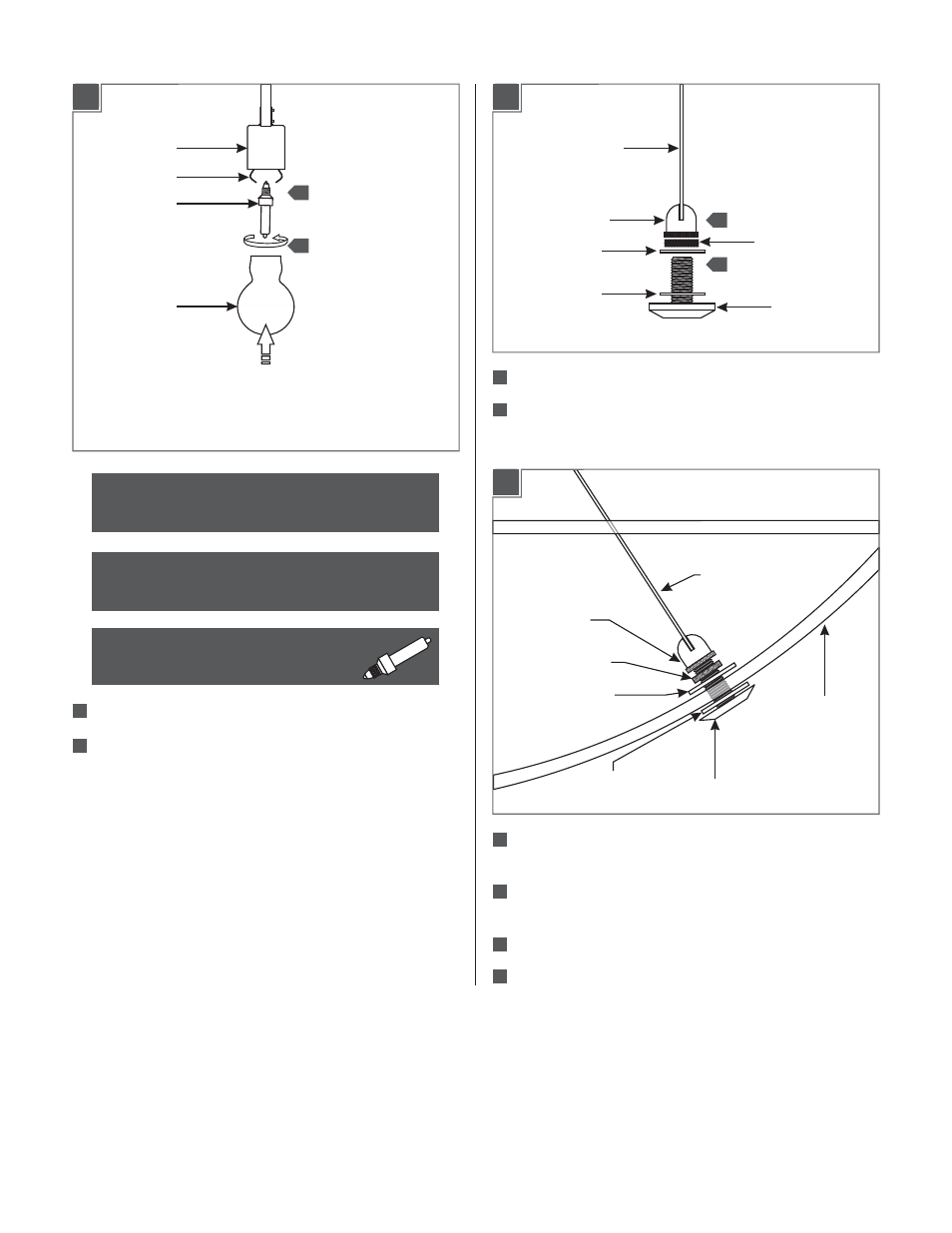

Install the Lamp
C AUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
NOTE: Use only your fingers and a soft cloth to replace
the lamp.
SOCKET
LAMP
SHIELD
Screw the lamp completely into the socket.
Push the lamp shield completely onto the spring clips.
Use Volt,
MAX
120
150 Watt
type E11mini candelabra base lamp.
Remove the cap screw from the cable bushing.
Remove the knurled nut and one of the plastic washers from
the cap screw.
AIRCRAFT CABLE
CABLE BUSHING
KNURLED NUT
PLASTIC WASHER
PLASTIC WASHER
CAP SCREW
Install the Glass
From outside of the glass shade, insert the cap screw through
one glass shade hole.
Place the second plastic washer onto the cap screw and finger
tighten the knurled nut to secure the cap screw in place.
Screw the cable bushing completely to the cap screw.
Repeat steps 1 through 5 for the remaining glass shade holes.
4A 5A
5B
2
3
1
4
5
2
1
6
2
2
1
1
