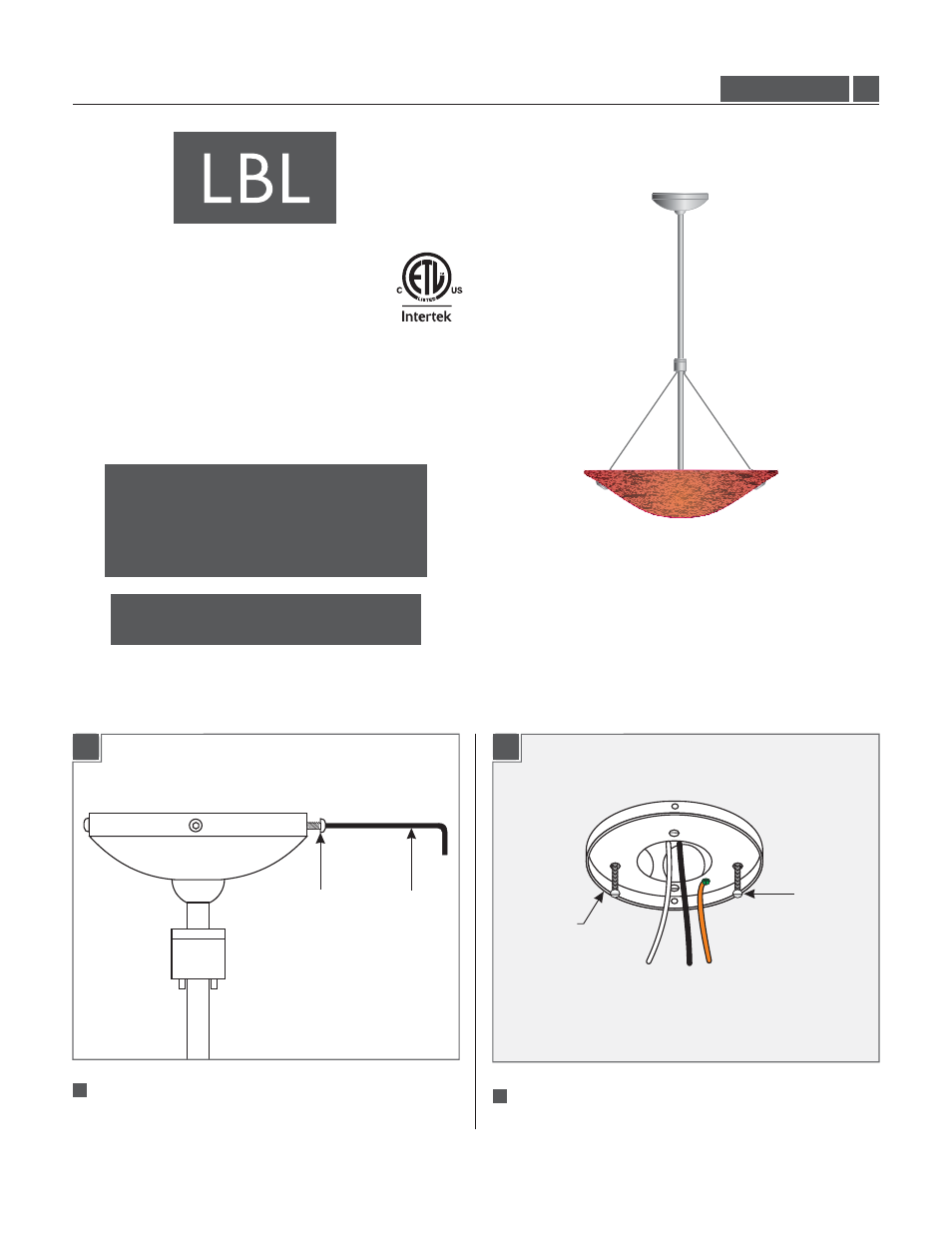

LBL Lighting Veneto SP User Manual
Veneto suspension, Install the cross bar
Installation Instructions for
Veneto Suspension
1.6
HS317_2J150
980VENETSP
G
P
I
:
ENERAL
RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
1
SCREW
ALLEN
WRENCH
Separate the crossbar from the canopy by removing all
four screws with the Allen wrench provided.
Mount the crossbar to the electrical box with the two
#8-32 screws provided.
#8-32 SCREW
CROSSBAR
ASSEMBLY
Install the Cross Bar
NOTE: This canopy may be installed to sloped
ceilings with
.
MAX 45
° tilt
Suspension
1B
1A
1
1
2
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
