GENERAL PRODUCT INFORMATION:
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for indoor dry locations only.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
Suspension
1

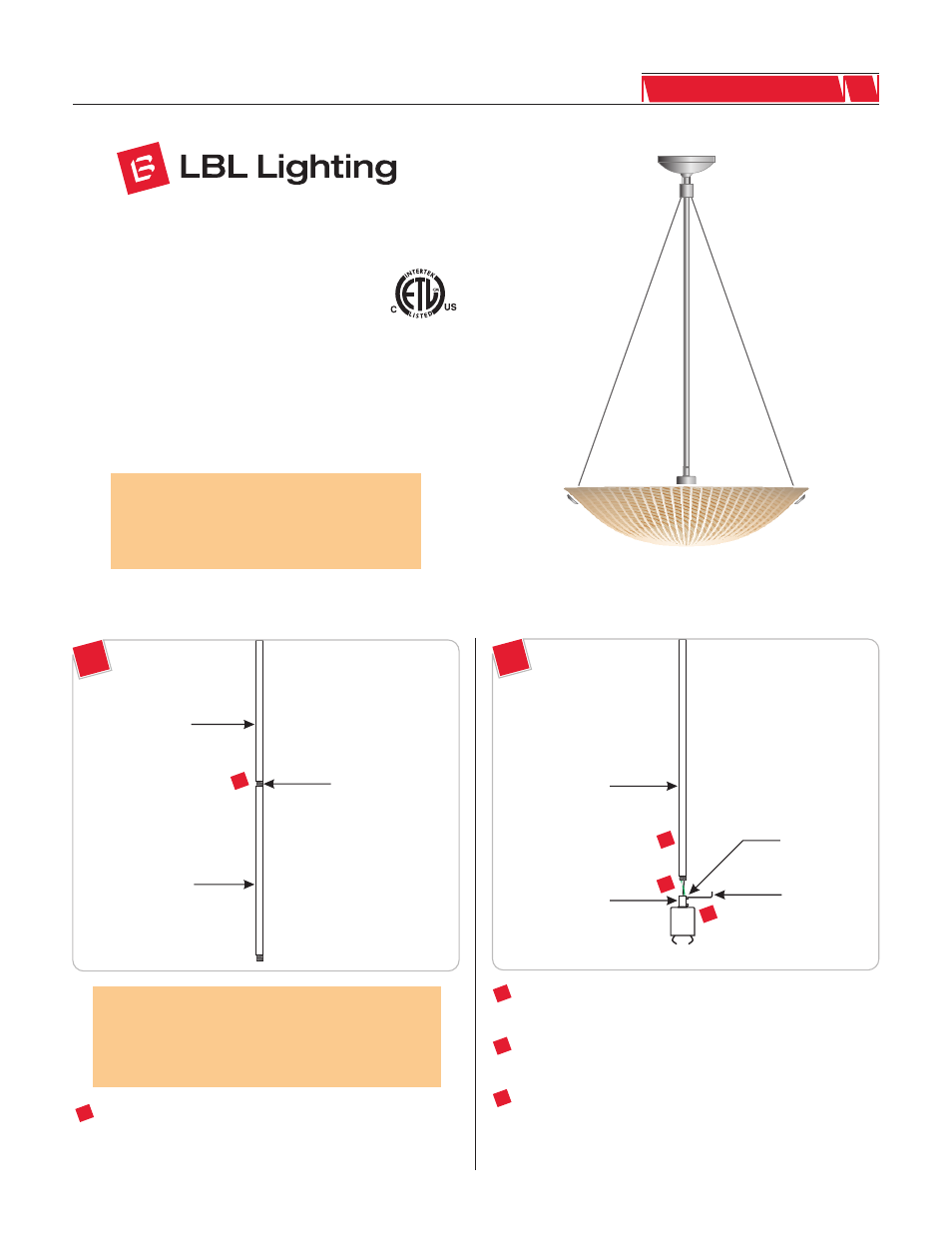

Adjust the Fixture Height
1A
EXTENSION STEM
THREADED NIPPLE
1
EXTENSION STEM
NOTE:
Use a 24" stem for the minimum 32" overall
height. To extend the fixture height to 44", or 56", or 68",
use the additional 12", or 24", or combination of 12" and
24" provided extension stems respectively. The extension
stems are not field cuttable.
Optional - To combine the fixture extension stems, simply
tighten one extension stem threaded nipple completely to the
back of the other extension stem.
1
1B
SOCKET BUSHING
FIXTURE STEM
1.5MM ALLEN
WRENCH
M3 SET SCREW
Feed the fixture wires through the exposed threaded nipple of
the fixture stem. Slide the fixture stem down the cord.
On the socket busing, loosen (Do Not Remove) the top M3
set screw with the provided 1.5MM Allen wrench.
Screw the fixture stem completely to the socket bushing and
tighten the top M3 set screw with the 1.5MM Allen wrench.
