Operation
Control Panel

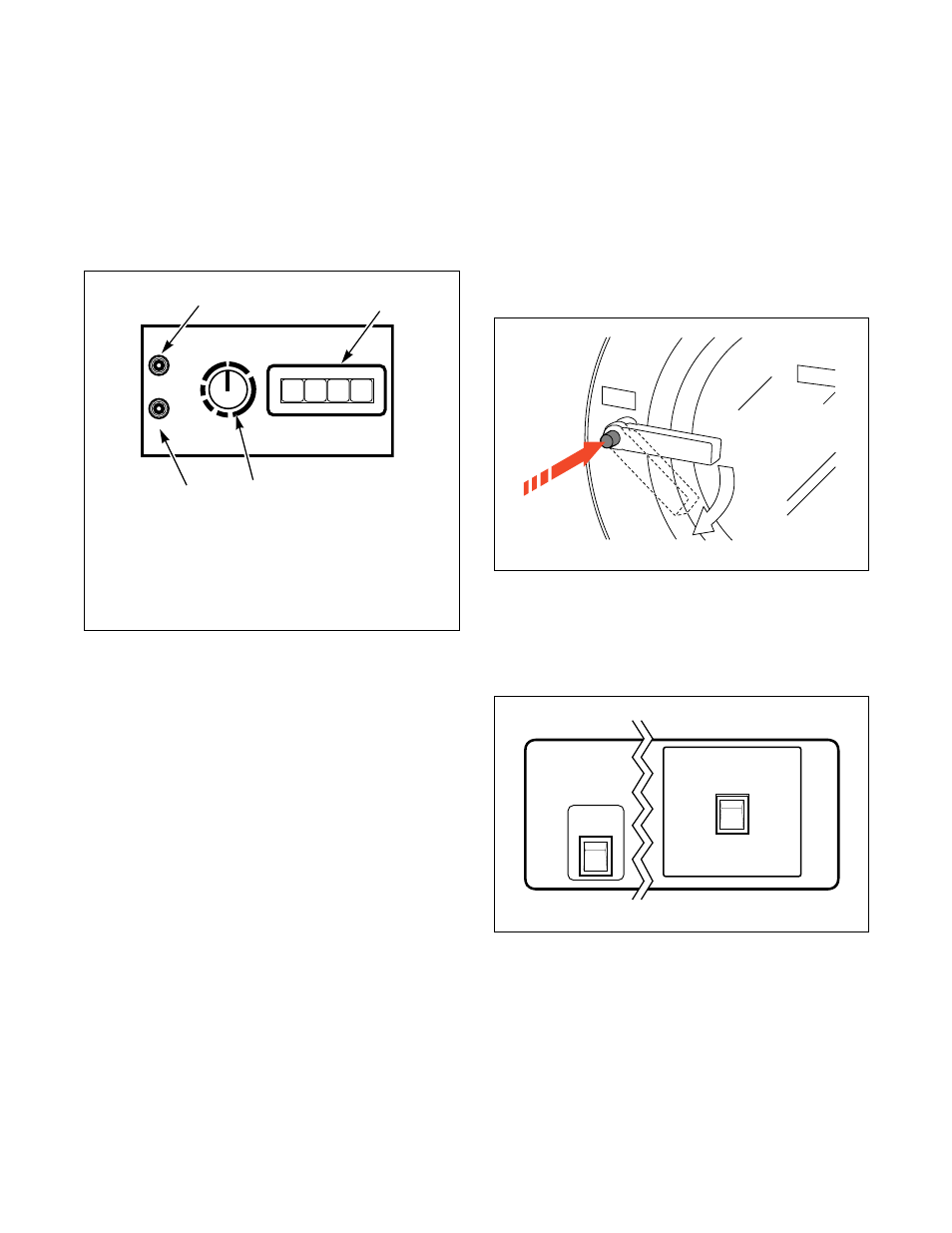

Figure 2 shows the control panel for mechanical timer-
controlled machines.
The ON indicator light shows when a cycle is started
and will stay lit until cycle is complete.
Figure 2
The ADD BLEACH WHEN LIT indicator light
indicates, when lit, appropriate time to add bleach.
The CYCLE INDICATOR dial displays current cycle
step.
The depressed pushbutton on the cycle selector switch
indicates currently selected cycle.
Operating Instructions
1. Turn on the main power source (circuit breaker).
For non-coin models: Turn on the On/Off switch
on the front panel to the On position. Refer to
Figure 4.
2. Push button and turn handle clockwise to open.
Figure 3
For non-coin models: Press and hold the DOOR
UNLOCK button on the left side of the control
panel while performing the above step. Refer to
Figure 3 and Figure 4.
Figure 4
B002R
1
ON Indicator Light
2
Pushbutton Cycle Selector Switch
3
ADD BLEACH WHEN LIT Indicator Light
4
CYCLE INDICATOR Dial
PREW
AS
H
CYCLE INDICATOR
WASH CYCLES
SP
IN
W
A
S
H
ON
ADD BLEACH
WHEN LIT
HOT
HEAVILY
SOILED
WARM
PERM-
PRESS
WARM
NORMAL
WASH
COLD
DELICATE
KNITS
R
IN
S
E
B002R
3
2
1
4
U001IE1B
U135R
U001IE1B
On
Off
DOOR UNLOCK
