3d 3b – LBL Lighting Gypsy SCF User Manual
Page 3
3
2
11

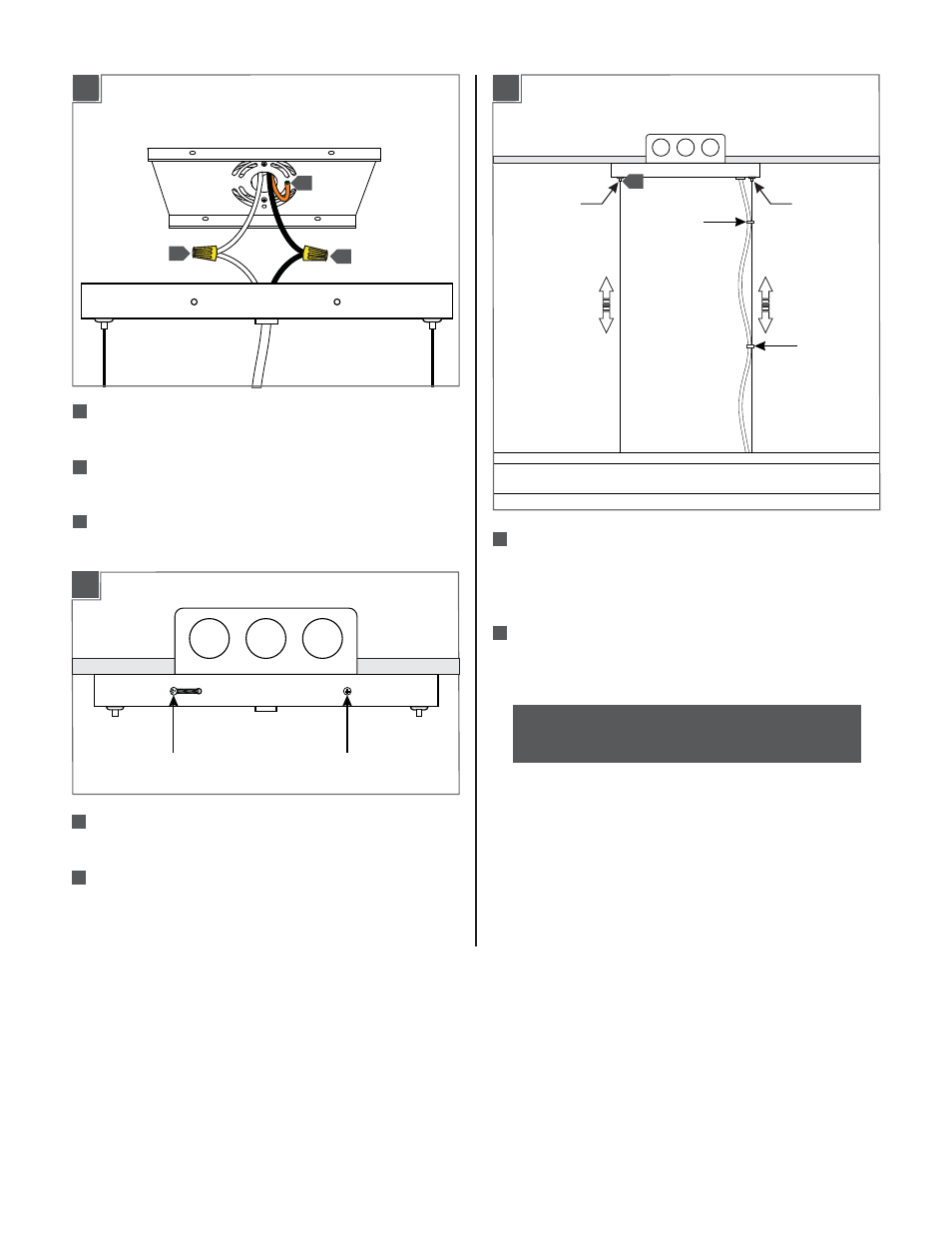

Adjust the aircraft cables until the fixture is level; feed
the cable into the cable clutch to raise the fixture and
push in on the cable clutch nipple to release the cable
and lower the fixture.
Adjust the bands holding the power cord and aircraft
cable to the desired position.
BAND
CABLE
CLUTCH
CABLE
CLUTCH
1
BAND
2
12
3D
3B
7
8
6
2
6
2
7
Connect the fixture to a suitable ground in accordance
with local electrical codes.
Connect the black fixture wire to the hot power line wire
with a wire nut.
Connect the white fixture wire to the neutral power line
wire with a wire nut.
2
8
3C
2
9
Place all wire and wire nut connections inside the
canopy.
Align the canopy holes with the crossbar holes. Secure
the canopy in place by tightening the four screws.
2
10
SCREW
SCREW
NOTE:
To replace the lamp, follow section 2 (Install
the lamps) portion of this instruction.
