LBL Lighting Vitre Square S - Manual (Page 3)

6
NOTE:
It is recommended that one person hold the
fixture while the electrician connects the power and
installs the canopy.

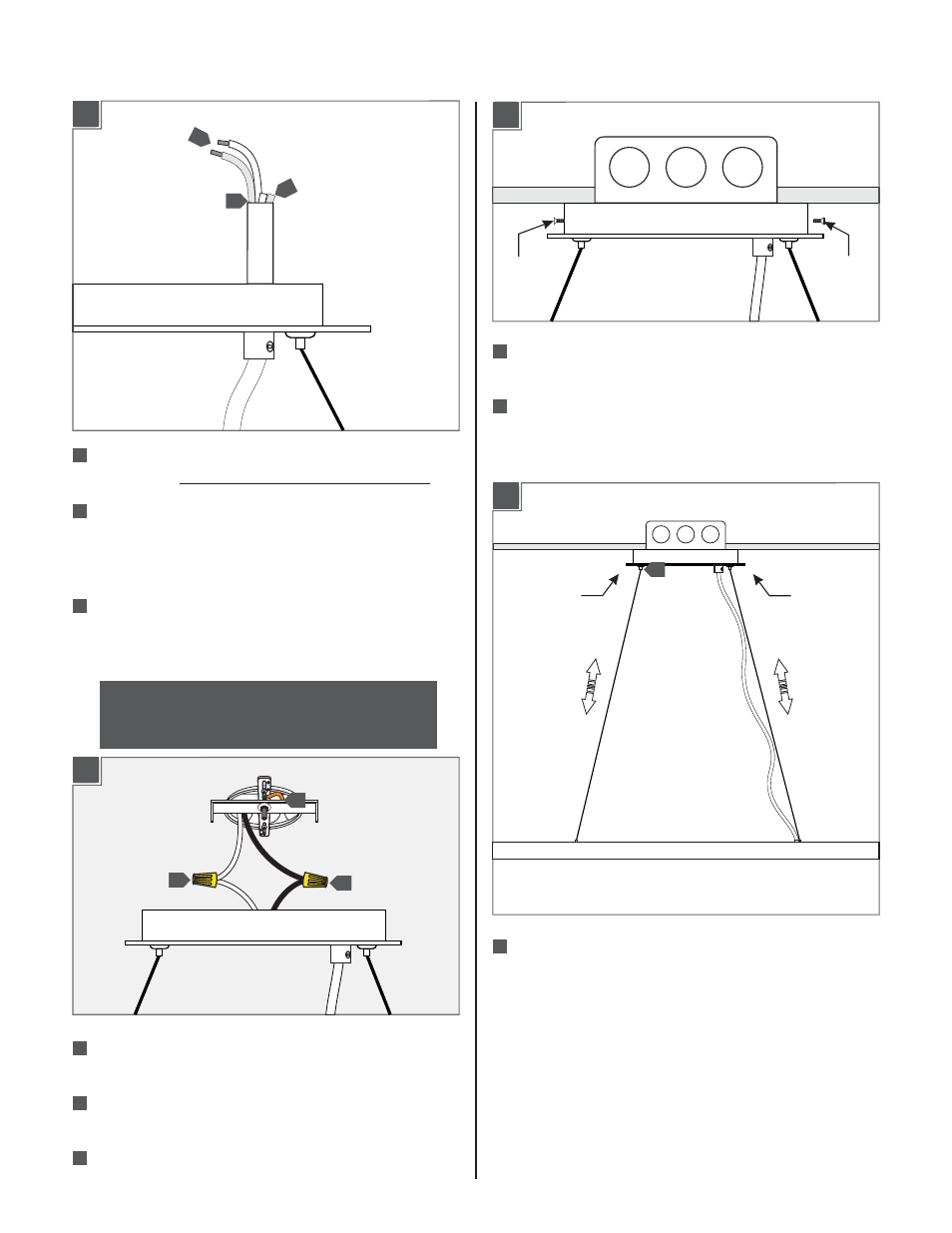

From the end of the cord, strip the insulation 4" using a
sharp knife. . Make sure not to nick the inner wires
From the previously wired power cord wires, cut off the
extra cord, strip 1/2" off the wire ends, and reconnect
the two power cord wires to their original connections
(reversal of 3A).
Cut off the two unused wires.
6
5
3B
5
2 3
Connect the fixture to a suitable ground in accordance
with local electrical codes.
Connect the white driver wire to the neutral power line
wire with a wire nut.
Connect the black driver wire to the hot power line wire
with a wire nut.
Install the Fixture
4A
1
2
3
Adjust the aircraft cables until the fixture is level; feed
the cable into the cable clutch to raise the fixture and
push in on the cable clutch nipple to release the cable
and lower the fixture.
CABLE
CLUTCH
Place the driver, all wires, and wire nut connections
inside the canopy.
Align the canopy holes with the mounting plate holes.
Secure the canopy in place by tightening the two
canopy screws.
4C
4B
6
4
5
CABLE
CLUTCH
1
CANOPY
SCREW
CANOPY
SCREW
6
7
7
3
