2

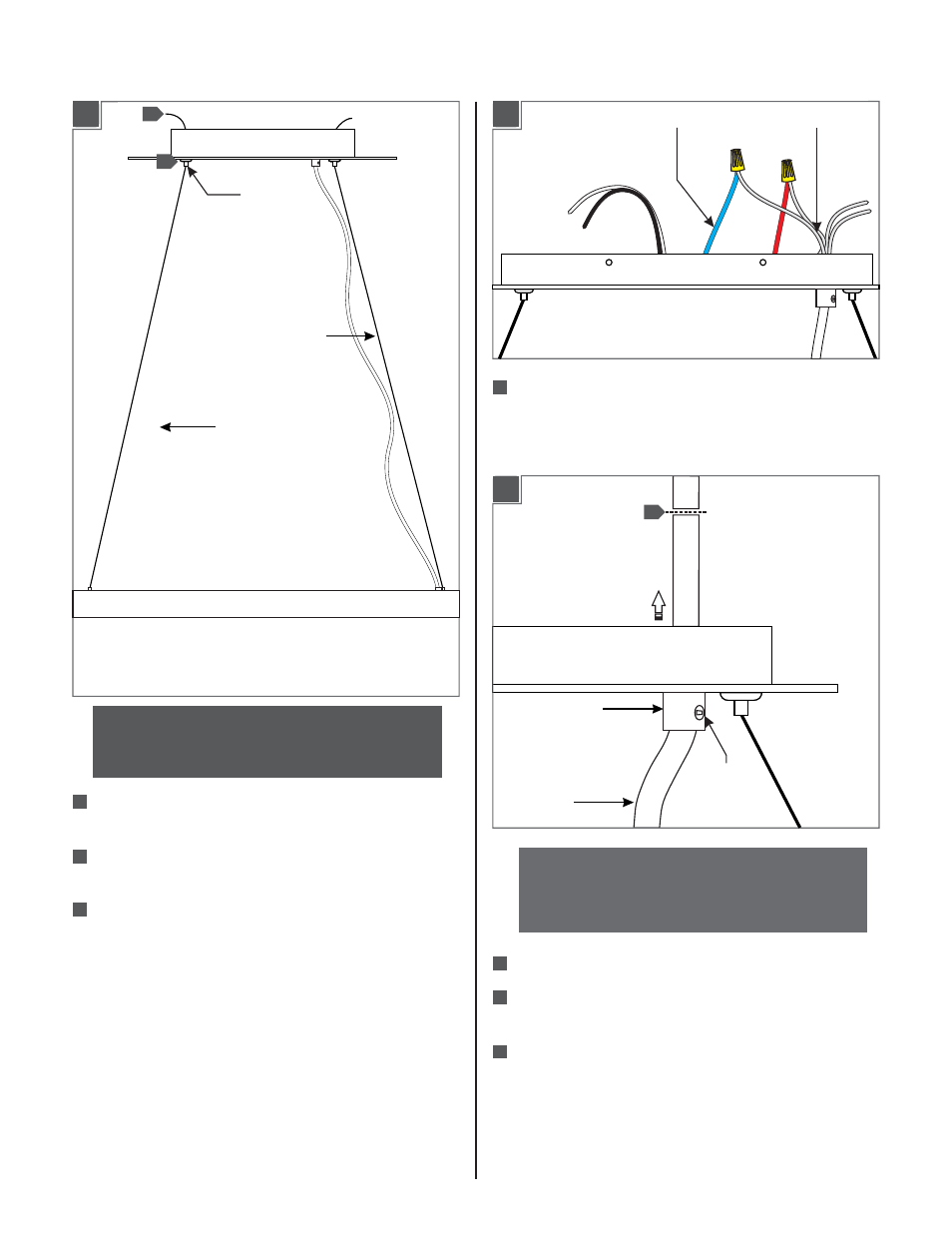

Feed the aircraft cables through the cable clutches in
the canopy.
Evenly pull the aircraft cable up through the canopy to
raise the fixture to the desired leveled length.
Cut off the excess aircraft cable leaving enough for fine
leveling later.
7
NOTE: Make sure to support the fixture while
adjusting the aircraft cables. An assistant is
recommended to complete the remaining steps.
AIRCRAFT
CABLE
POWER
CORD
CABLE
CLUTCH
3
Assemble the Fixture
1
2A
1
2
3
Loosen the set screw in the strain relief.
Pull the power cord through the canopy until it reaches
the length desired and re-tighten the set screw.
Leave 6 inches of cord behind the canopy and cut off
extra cord. 4
3
2
NOTE: The power cord does not support the fixture.
For a casual “lazy cord” look, cut the power cord
several inches longer that the drop height of the
fixture.
3B
Take note of the pre-wired connections and remove the
wire nuts to disconnect the power cord wires from the
driver wires. 1
3A
POWER CORD WIRE DRIVER WIRE
Adjust the Power Cord (optional)
POWER
CORD
4
SET SCREW
STRAIN RELIEF
