Assemble the fixture – LBL Lighting Vitre Rectangle S User Manual
Page 2
2

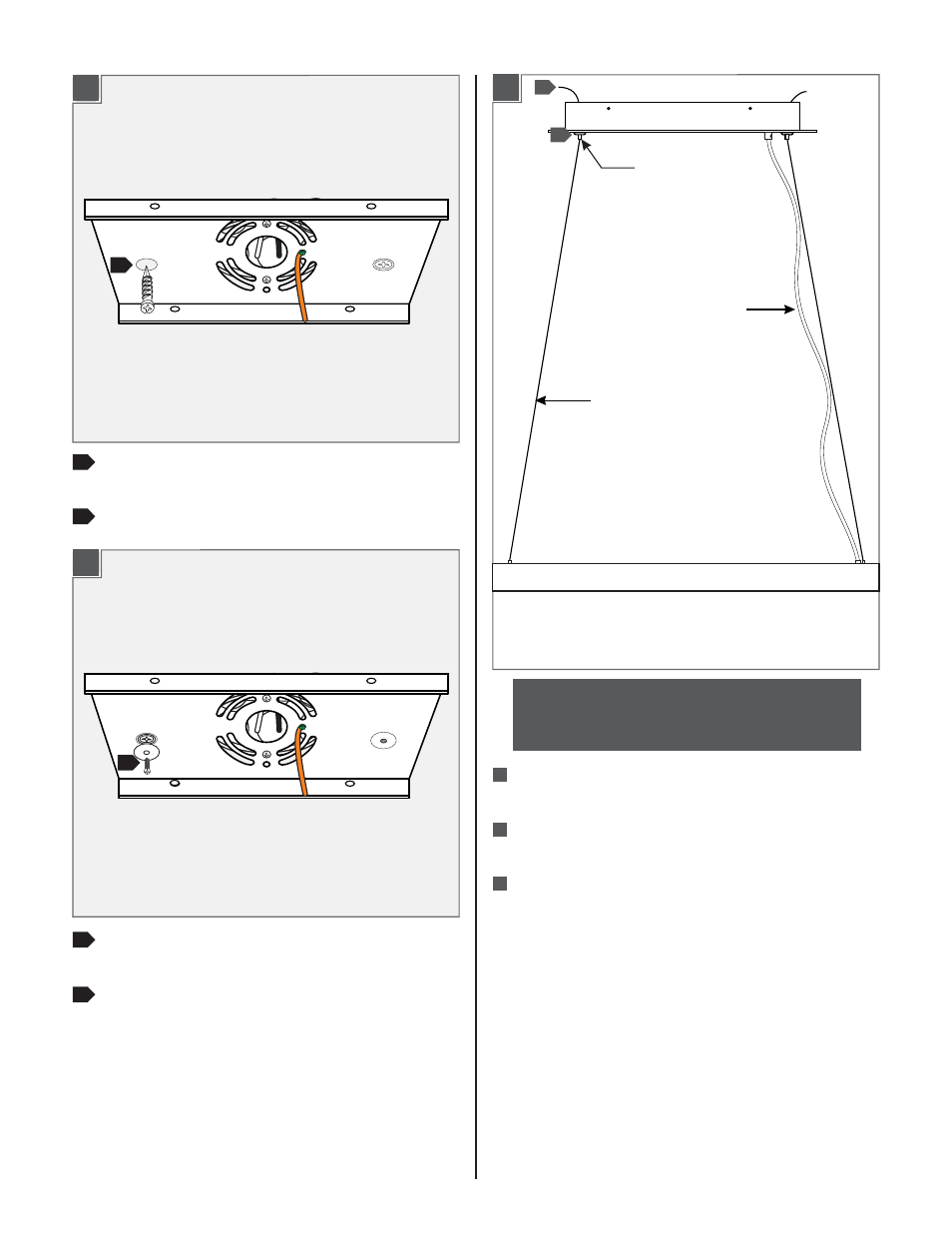

Line up an anchor with the center of a backplate hole
and push the anchor in up to the threads.
Screw the anchor the rest of the way in with a
screwdriver.
4
5
1C
4
Secure the backplate to the anchor with a screw and
washer.
Repeat steps 4-6 for the remaining anchor hole.
6
7
1C
6
Feed the aircraft cables through the cable clutches in
the canopy.
Evenly pull the aircraft cable up through the canopy to
raise the fixture to the desired leveled length.
Cut off the excess aircraft cable leaving enough for fine
leveling later.
7
NOTE:
Make sure to support the fixture while
adjusting the aircraft cables. An assistant is
recommended to complete the remaining steps.
AIRCRAFT
CABLE
POWER
CORD
CABLE
CLUTCH
3
Assemble the Fixture
1
2A
1
2
3
