AXIS 225FD - Unit Connectors
37
The AC supply is 10-24V. Connect the AC poles to the AC pins.

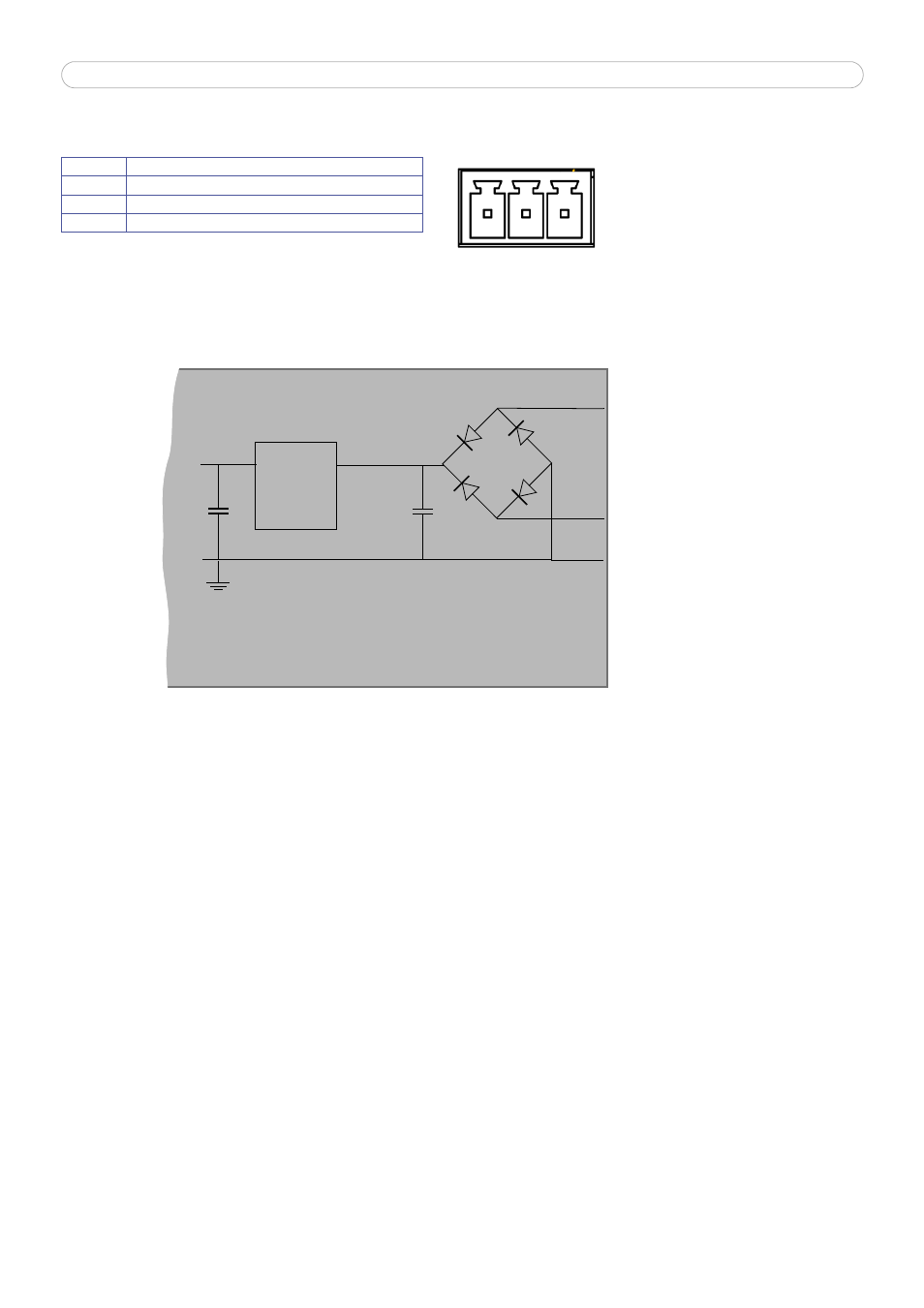

Schematic Diagram - Power Terminal Block and Power Connectors
Power connector block pin assignment table.
Pin
Function
GND
Ground/DC-
AC/DC+
AC and DC+, power input for mains power to unit
AC
AC power input for mains power to unit
AC
AC
DC+
GND
3
2
o
o
Mode
Power
Supply
3.3V
z
z
z
z
z
z
z
z
z
Internal
~
Switch
o
z
GND
AC
1
AC/DC+
GND/DC-
=
