AXIS 225FD - Unit Connectors
36

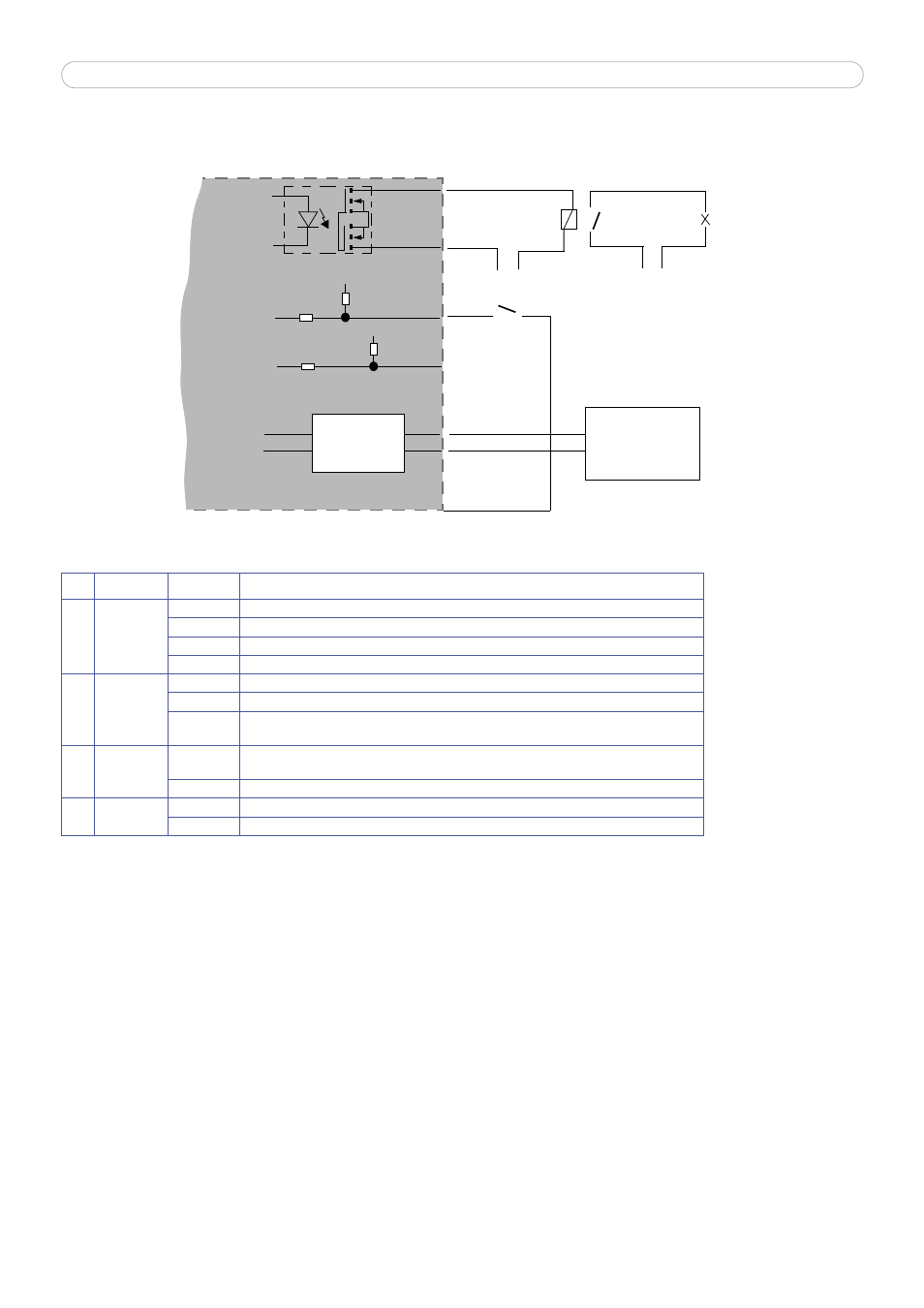

I/O terminal connector schematic diagram
Example schematic diagram of the AXIS 225FD terminal connector - showing possible applications.
LED indicators:
Power connections
Power can be supplied to the camera by the following methods:
• PoE (Power over Ethernet) via the network cable. This will automatically be detected if available via the network.
Note that PoE only provides power for the camera and the fan (not the heater).
• Connect the supplied indoor power adapter to the power connector block in the camera casing.
Note that this
indoor power adapter only provides power for the camera and the fan (not the heater).
• Connect an outdoor power supply to the power connector block in the camera casing. For information on
available outdoor power supplies, please visit the Support pages at http://www.axis.com/techsup/
Power Connector Block
The power connector block supports both AC and DC input power.
The DC supply is 9-24V. Connect the negative pole to the GND pin and the positive pole to the DC+ pin.
LED Function
Color
Description
1
Network
Green
Steady for connection to 100 Mbit/s network. Flashes for network activity.
Amber
Steady for connection to 10 Mbit/s network. Flashes for network activity.
Red
Flashes rapid red, together with the Status indicator, for hardware error.
Unlit
No connection.
2
Status
Green
Shows steady green for normal operation.
Amber
Shows steady amber during reset to factory default or when restoring settings.
Red
Slow flash for failed upgrade. Rapid flash, together with the Network indicator, for hardware
error.
3
Heater
Green
Shows steady green if the connected power supply can deliver the correct voltage for the
heater (See Power, on page 42 of Technical Specifications ).
Red
Incorrect voltage for the heater (i.e., the voltage is either too high or too low).
4
Power
Green
Normal operation.
Amber
Flashes green/amber during firmware upgrade.
o
o
o
o
A
B
3
4
5
External Device
o
o
1
2
RS-485/422
Mains Power
24V DC
Appliance
Optional
Relay
Switch
o
o
o
o o
o
o
o o
7 GND
Switch, etc.
6
+3.3V
+3.3V
