Shorten the fixture (optional), 2a 2b – LBL Lighting Alaya SP User Manual
Page 2
2
LOCK WASHER
THUMB SCREW
CROSSBAR

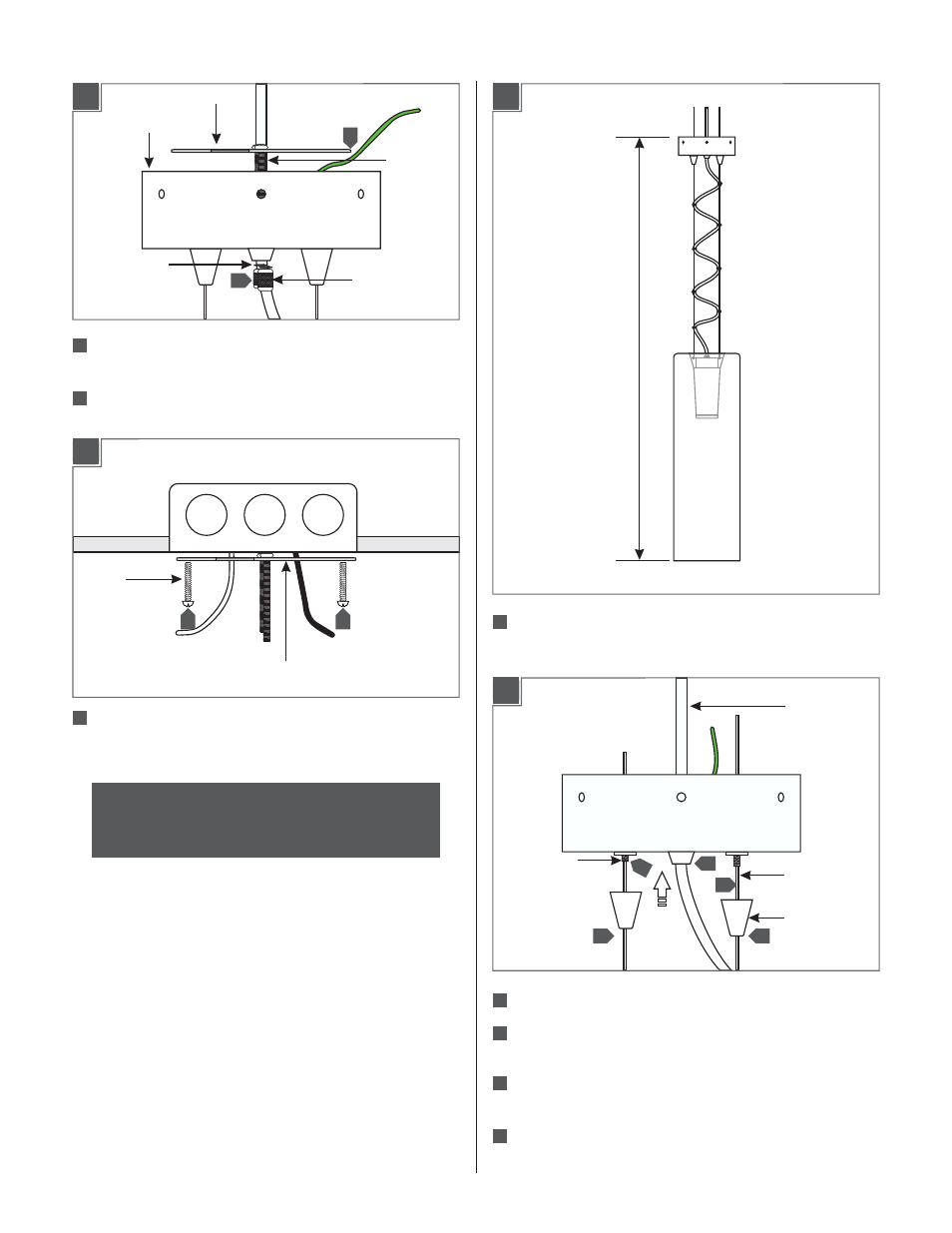

Unscrew and remove the two thumb screws and lock washers
from the threaded rods.
Remove the crossbar from the canopy.
CANOPY
THREADED
ROD
Install the crossbar to the electrical box with the two provided
#8-32 screws.
#8-32
SCREW
CROSSBAR
Shorten the Fixture (Optional)
H
The overall fixture height (H) is measured from bottom of the
glass shade to top of the canopy.
Slide the clear cord up into the canopy.
Unscrew the conical caps and slide them down the aircraft
cables.
Slide the aircraft cables through the cable grips into the
canopy.
To pull the aircraft cable, unlock it by pushing the cable grip in.
CONICAL CAP
AIRCRAFT
CABLE
CABLE GRIP
CLEAR CORD
NOTE: If not adjusting or shortening the fixture height,
follow "Install the Fixture" and "Install the Lamp" steps on
page 4.
1C
4
1D
6
5
4
5
2
3
1
2A
2B
2
3
6
6
5
4
3
4
5
