1d 1e, 1g 1h – LBL Lighting Juniper SF User Manual
Page 2

2

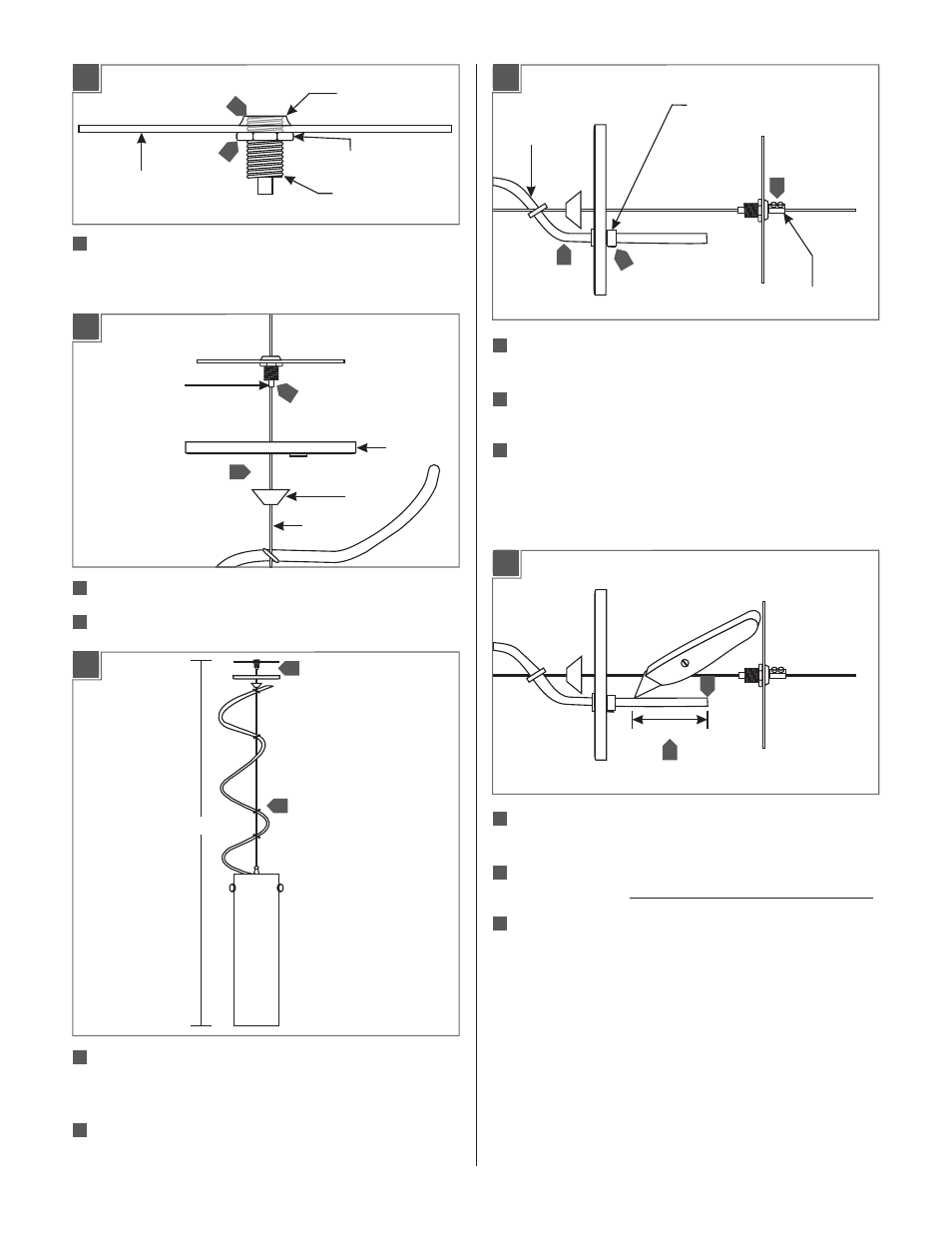

Insert the cable grip to the crossbar so that the cable grip is
flush to the top of crossbar lip.Tighten the nut completely
against the crossbar to secure the cable grip.
CABLE GRIP
NUT
CROSSBAR
CROSSBAR LIP
5
Slide the cap and canopy down the aircraft cable respectively.
Push the tab on cable grip and insert the aircraft cable in.
CAP
CANOPY
AIRCRAFT
CABLE
CABLE GRIP
Slide the metal strain relief onto the aircraft cable against the
crossbar and tighten the screws.
Insert the clear cord from the canopy side hole into the
canopy.
Slide the plastic strain relief onto the clear cord against the
canopy. Dress the clear cord around the aircraft cable and
tighten the screw on plastic strain relief.
Adjust the fixture to desired height (From the bottom of glass
shade to the top of crossbar) by pushing the tab on cable grip
and sliding the aircraft cable up and down.
When desired height is achieved release the tab of the cable
grip to lock the aircraft cable in place.
H
PLASTIC STRAIN
RELIEF
CLEAR CORD
Leave 6" of the cord behind the canopy for power connections.
Cut the excess clear cord.
From the end of the clear cord, strip the outer insulation 4"
using a sharp knife.
.
Make sure not to nick the inner wires
Strip the end of the wires.
4"
11
METAL STRAIN
RELIEF
