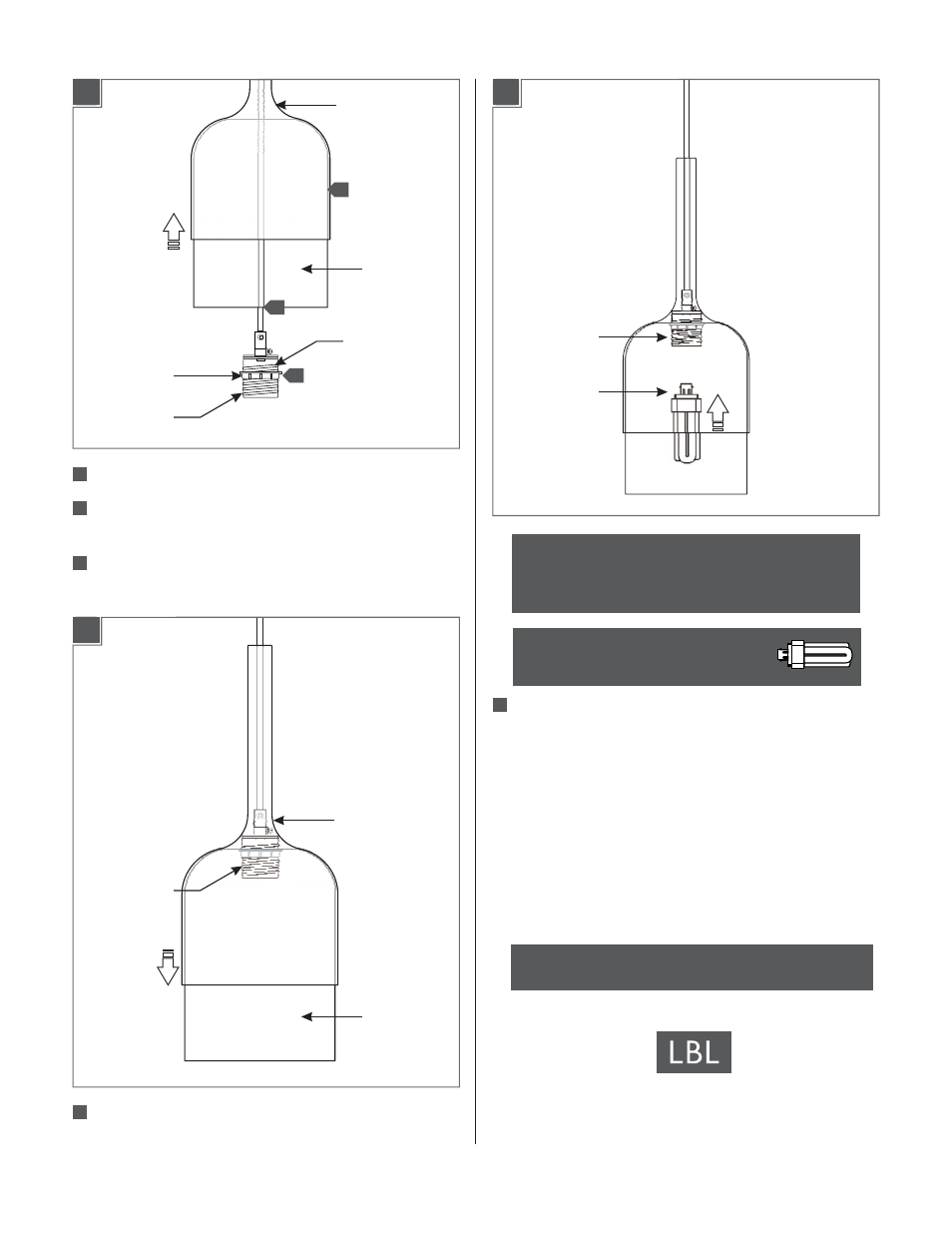

Reach inside the inner shade and push the lamp base
into the socket. 1
Install the Lamp
CAUTION: To reduce the risk of a burn or electric
shock during relamping, disconnect the power to
the fixture.
5A
Use GX24Q-3 Base MAX 32 Watt
Triple Tube Compact Fluorescent Lamp.
SOCKET
LAMP
Expose the socket by raising the outer shade.
Raise the inner shade and feed the cord until the socket
is exposed at the bottom.
Screw the collar nut onto the socket until only a couple
threads remain.
INNER SHADE
Install the Shade
SOCKET
COLLAR NUT
3A
1
2
3
1
OUTER SHADE
3
Gently lower both shades until they rest properly on the
socket.
SOCKET
3B
4
OUTER SHADE
THREAD
2
INNER SHADE
