SAVE THESE INSTRUCTIONS!

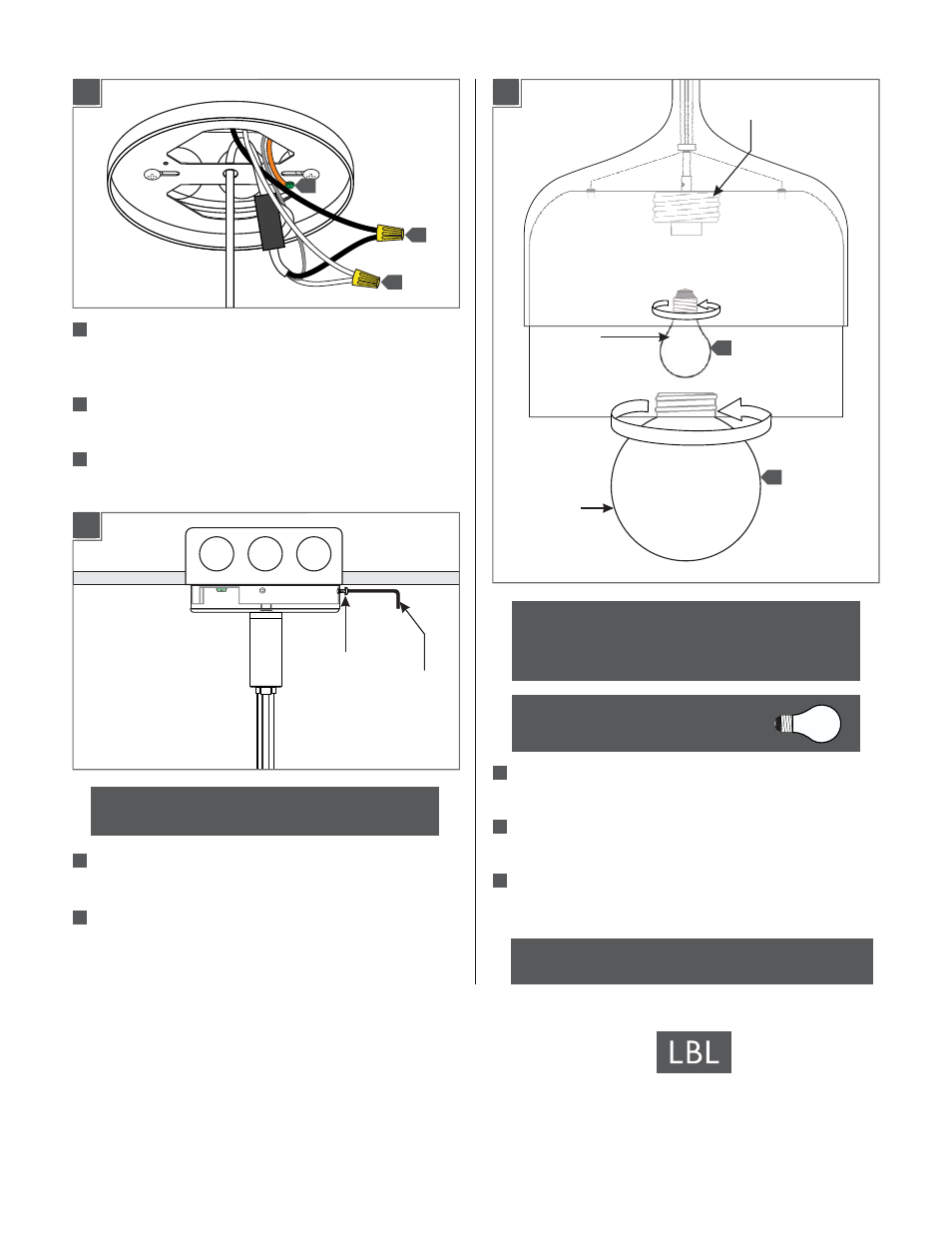

Reach inside the glass shade and screw the lamp into
the socket.
Install the diffuser to the socket assembly by screwing it
in.
To re-lamp, reverse this section.
1
Install the Lamp and Diffuser
Use Halogen 120 volt MAX 100 Watt
Type A19 Medium Base Lamp.
CAUTION: To reduce the risk of a burn or electric
shock during relamping, disconnect the power to
the fixture.
5A
2
Connect the mounting plate and the fixture ground wire
to a suitable ground in accordance with local electrical
codes.
Connect the black fixture wire to the hot power line wire
with a wire nut.
Connect the white fixture wire to the neutral power line
wire with a wire nut.
Place all wires, wire nut connections, and the secondary
strain relief properly inside the canopy.
Align the canopy holes with the mounting plate holes
and secure the canopy in place
by reinstalling the three
screws on the canopy with the Allen wrench provided .
NOTE: It is recommended that one person hold the
fixture while the electrician finishes the installation.
4C
4D
8
9
10
11
12
SCREW
ALLEN
WRENCH
SOCKET
ASSEMBLY
DIFFUSER
LAMP
1
2
9
10
8
3
